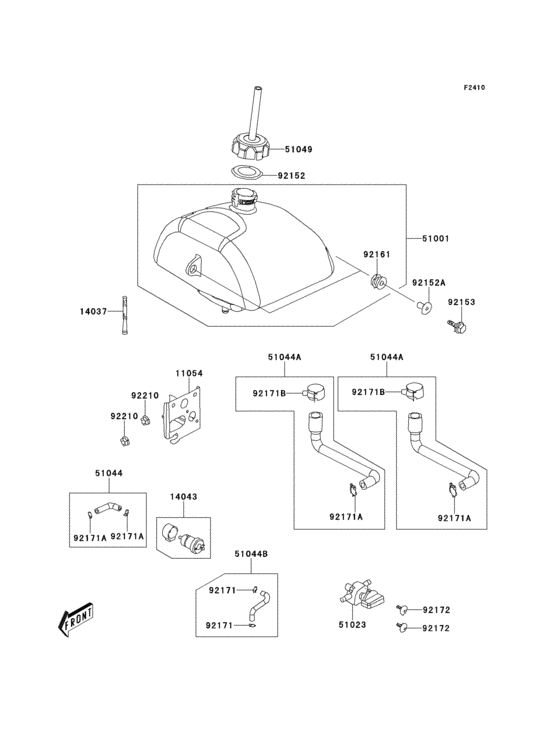

Fuel tank Diagram Kawasaki KSF90 KFX 90
- Model code
- KSF90AEF
- Engine Capacity
- 89
- Year
- 2014
- Sales region
- USA
- Frame
- RGSWE07A EB200101 - 999999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14037
|
14037
14037-Y001 SCREEN |
14037-Y001 |
US $5.22 |
||
|
14043
|
14043
14043-Y002 FILTER,FUEL |
14043-Y002 |
US $12.22 |
||
|
92152A
|
92152A
92152-Y013 COLLAR |
92152-Y013 |
US $1.51 |
||
|
92153
|
92153
92153-Y049 BOLT,FLANGE,6X20 |
92153-Y049 |
US $1.24 |
||
|
92171
|
92171
92171-Y010 CLAMP |
92171-Y010 |
from US $0.46 |
||
|
92171A
|
92171A
92171-Y011 CLAMP |
92171-Y011 |
from US $0.46 |
||
|
92172
|
92172
92172-Y010 SCREW,5X16 |
92172-Y010 |
US $1.21 |
||
|
92210
|
92210
92210-Y027 NUT,6MM |
92210-Y027 |
from US $0.46 |
