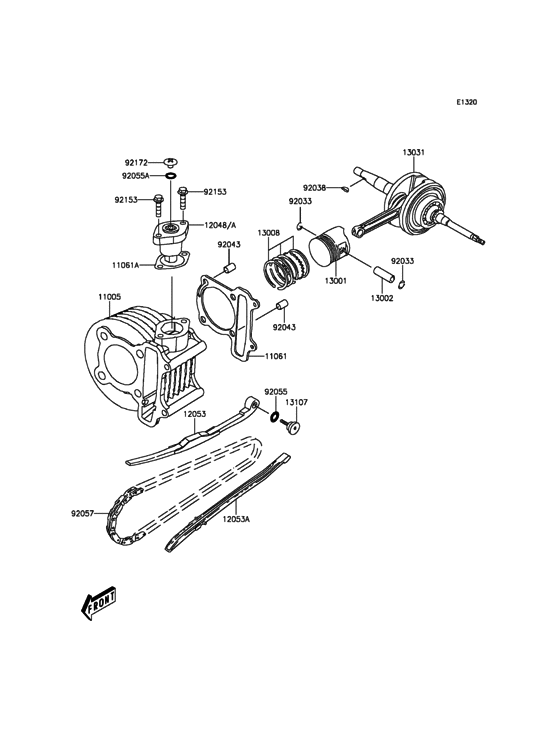

Crankshaft/Piston(s) Diagram Kawasaki KSF90 KFX 90
- Model code
- KSF90AFF
- Engine Capacity
- 89
- Year
- 2015
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11005
|
11005
11061-Y012 GASKET |
11061-Y012 |
from US $1.24 |
||
| replacement | |||||
|
11005
|
11005
11061-Y070 Gasket,Tensioner Lift |
11061-Y070 |
US $3.47 |
||
|
12048
|
12048
12048-Y005 TENSIONER-ASSY |
12048-Y005 |
from US $37.17 |
||
|
13107
|
13107
13107-Y001 SHAFT,CHAIN GUIDE |
13107-Y001 |
US $3.86 |
||
|
92043
|
92043
92043-Y013 PIN,10X16 |
92043-Y013 |
from US $0.62 |
||
|
92055
|
92055
92055-Y003 RING-O,15.2X1.5 |
92055-Y003 |
US $1.43 |
||
|
92055A
|
92055A
92055-Y010 RING-O,1.5X9.5 |
92055-Y010 |
US $1.43 |
||
|
92153
|
92153
92153-Y003 BOLT,FLANGE,6X22 |
92153-Y003 |
from US $0.46 |
||
