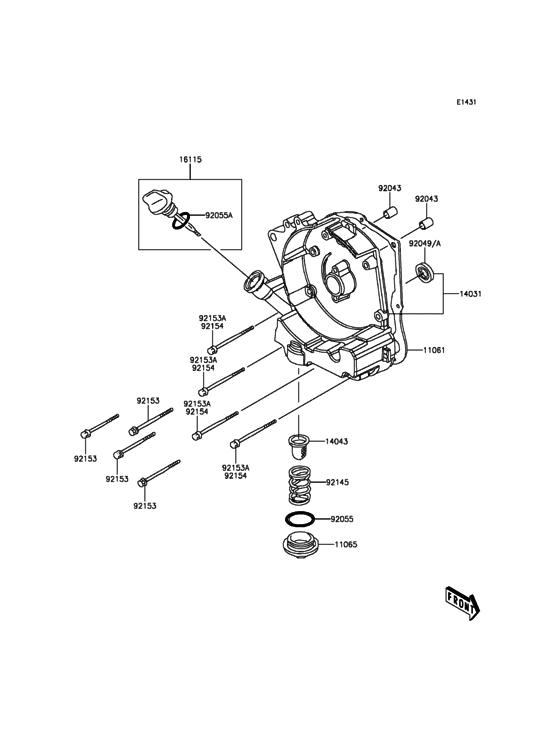

Engine Cover(s) Diagram Kawasaki KSF90 KFX 90
- Model code
- KSF90AFF
- Engine Capacity
- 89
- Year
- 2015
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11061
|
11061
11065-Y006 CAP |
11065-Y006 |
US $10 |
||
|
14043
|
14043
14043-Y001 FILTER,OIL |
14043-Y001 |
US $5.90 |
||
|
92043
|
92043
92043-Y012 PIN,8X14 |
92043-Y012 |
from US $0.62 |
||
|
92055
|
92055
92055-Y005 RING-O,30.8MM |
92055-Y005 |
from US $0.75 |
||
|
92055A
|
92055A
92055-Y011 RING-O,18X3 |
92055-Y011 |
from US $0.62 |
||
|
92145
|
92145
92145-Y005 SPRING |
92145-Y005 |
US $2.45 |
||
|
92153
|
92153
92153-Y055 BOLT,FLANGE,6X85 |
92153-Y055 |
US $3.11 |
