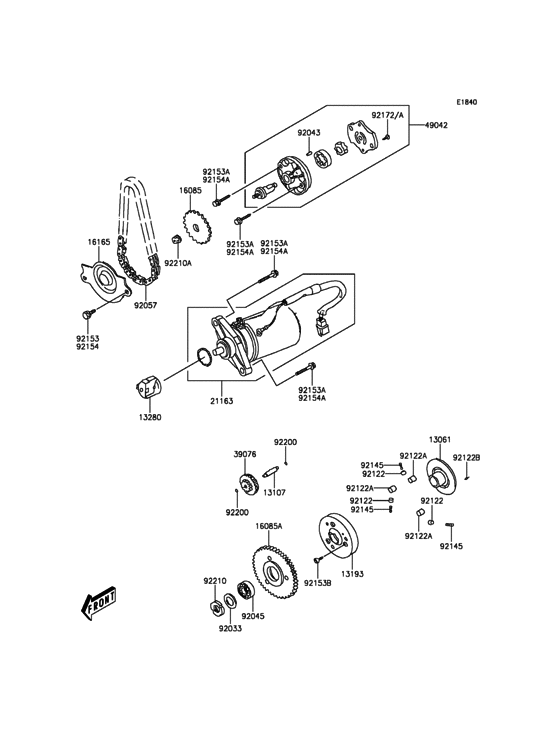

Starter Motor Diagram Kawasaki KSF90 KFX 90
- Model code
- KSF90AFF
- Engine Capacity
- 89
- Year
- 2015
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13061
|
13061
92043-Y015 PIN,DOWEL, 4X65 |
92043-Y015 |
from US $0.62 |
||
|
92122B
|
92122B
92122-Y006 ROLLER,6X10 |
92122-Y006 |
US $2.64 |
||
|
92153
|
92153
92153-Y046 BOLT,FLANGE,6X12 |
92153-Y046 |
from US $0.46 |
||
|
92153A
|
92153A
92153-Y051 BOLT,FLANGE,6X25 |
92153-Y051 |
US $1.56 |
||
|
92153B
|
92153B
92153-Y059 BOLT,SOCKET,6X12 |
92153-Y059 |
US $1.75 |
||
|
92172
|
92172
92172-Y006 SCREW,3X10 |
92172-Y006 |
from US $0.46 |
||
|
92210A
|
92210A
92210-Y027 NUT,6MM |
92210-Y027 |
from US $0.46 |
