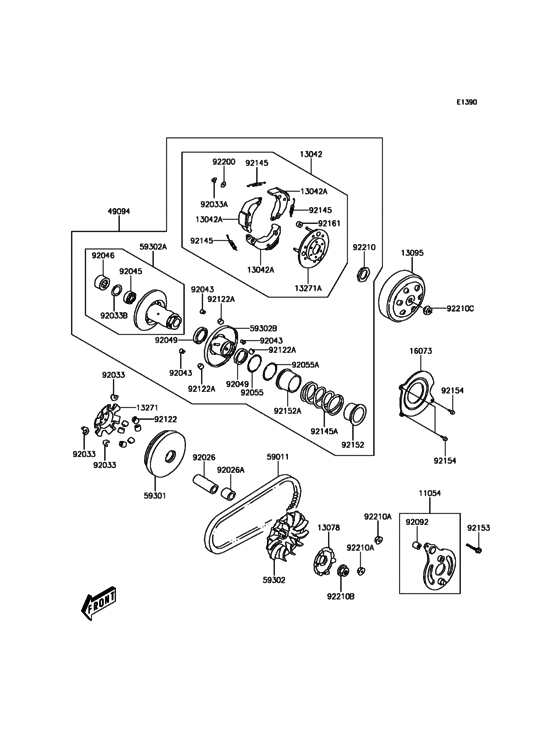

Belt Converter Diagram Kawasaki KSF90 KFX 90
- Model code
- KSF90AHF
- Engine Capacity
- 89
- Year
- 2017
- Sales region
- Canada
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11054
|
11054
59011-Y002 BELT,DRIVE |
59011-Y002 |
US $59.16 |
||
|
92055A
|
92055A
92055-Y013 RING-O |
92055-Y013 |
US $4.52 |
||
|
92154
|
92154
92154-Y035 BOLT,FLANGE,6X12 |
92154-Y035 |
from US $0.78 |
||
|
92210
|
92210
92210-Y002 NUT,28MM |
92210-Y002 |
US $4.52 |
||
|
92210B
|
92210B
92210-Y030 NUT,12MM |
92210-Y030 |
US $1.94 |
||
|
92210C
|
92210C
92210-Y058 NUT,FLANGE,10MM |
92210-Y058 |
from US $4.20 |
