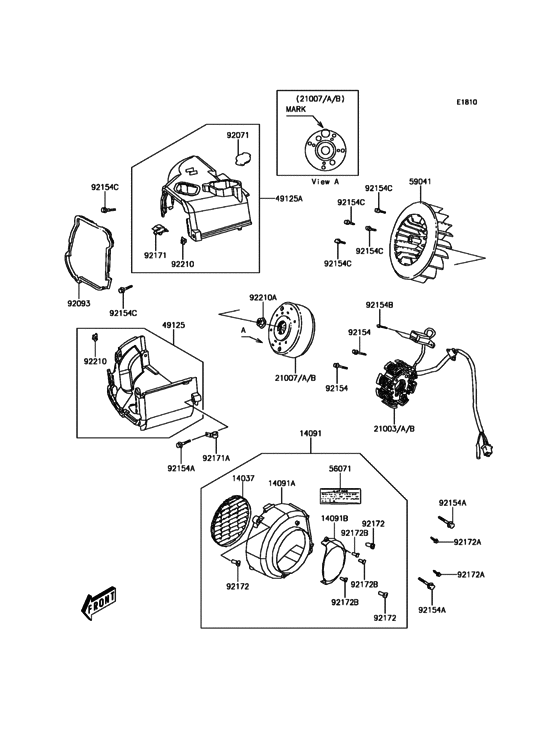

Generator Diagram Kawasaki KSF90 KFX 90
- Model code
- KSF90AHF
- Engine Capacity
- 89
- Year
- 2017
- Sales region
- Canada
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14037
|
14037
92154-Y057 BOLT,6X20 |
92154-Y057 |
from US $1.71 |
||
|
92154A
|
92154A
92154-Y066 BOLT,FLANGE,6X25 |
92154-Y066 |
from US $1.87 |
||
|
92154B
|
92154B
92154-Y111 BOLT,HEX,5X12 |
92154-Y111 |
from US $2.49 |
||
|
92154C
|
92154C
92154-Y134 BOLT,FLANGE,6X16 |
92154-Y134 |
from US $2.65 |
||
|
92172
|
92172
92172-Y019 SCREW,4X12 |
92172-Y019 |
from US $0.62 |
||
|
92210
|
92210
92210-Y011 NUT,6MM |
92210-Y011 |
US $1.87 |
