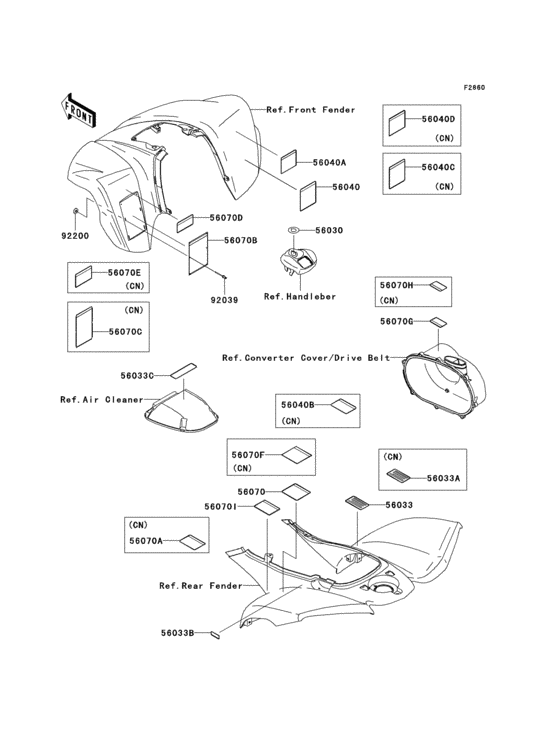

Labels(ksv700-a1) Diagram Kawasaki KSV700 KFX 700
- Model code
- KSV700-A1
- Engine Capacity
- 697
- Year
- 2004
- Sales region
- Canada
- Colour
- Colored Plastic Blazing Orange (268)
- Power
- 49 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56030
|
56030
56030-0018 LABEL,IGNITION SWITCH |
56030-0018 |
US $6 |
||
|
56033
|
56033
56033-0001 LABEL-MANUAL,DRIVE BE |
56033-0001 |
from US $3.57 |
||
|
56033A
|
56033A
56033-0002 LABEL-MANUAL,BELT CON |
56033-0002 |
from US $3.51 |
||
|
56033B
|
56033B
56033-0023 LABEL-MANUAL,SEAT LAT |
56033-0023 |
US $4.03 |
||
|
56033C
|
56033C
56033-1263 LABEL-MANUAL,MANUAL |
56033-1263 |
US $7.99 |
||
|
56040
|
56040
56040-1261 LABEL-WARNG,TRANSPORT |
56040-1261 |
US $3.23 |
||
|
56040A
|
56040A
56040-1276 LABEL-WARNING |
56040-1276 |
from US $4.83 |
||
|
56040B
|
56040B
56040-1280
LABEL-WARNING,NO PASS
|
56040-1280 |
— | ||
|
56040C
|
56040C
56040-1283
LABEL-WARNING,TRANSPO
|
56040-1283 |
— | ||
|
56040D
|
56040D
56040-1325 LABEL-WARNING,AGE |
56040-1325 |
from US $9.01 |
||
|
56070
|
56070
56070-0004 LABEL-WARNING,TIRE IN |
56070-0004 |
US $7.19 |
||
|
56070A
|
56070A
56070-0006 LABEL-WARNING,MAX VEH |
56070-0006 |
US $3.22 |
||
|
56070B
|
56070B
56070-1151 LABEL-WARNING,SERIOUS |
56070-1151 |
US $6.75 |
||
|
56070C
|
56070C
56070-1163 LABEL-WARNING,GENERAL |
56070-1163 |
US $3.38 |
||
|
56070D
|
56070D
56070-1170 LABEL-WARNING |
56070-1170 |
US $5.46 |
||
|
56070E
|
56070E
56070-1179 LABEL-WARNING,SHIFT L |
56070-1179 |
US $4.55 |
||
| replacement | |||||
|
56070E
|
56070E
56070-0037 LABEL-WARNING,SHIFT L |
56070-0037 |
US $4.55 |
||
|
56070F
|
56070F
56070-1249 LABEL-WARNING,TIRE IN |
56070-1249 |
US $3.38 |
||
|
56070G
|
56070G
56070-1269 LABEL-WARNING,CVT COV |
56070-1269 |
from US $9.78 |
||
|
56070H
|
56070H
56070-1271 LABEL-WARNING,CVT COV |
56070-1271 |
US $5.60 |
||
|
56070I
|
56070I
56070-1291 LABEL-WARNING,MAX VEH |
56070-1291 |
US $3.44 |
||
|
92039
|
92039
92039-3763 RIVET,3.2X8 |
92039-3763 |
from US $0.97 |
||
|
92200
|
92200
92200-1251 WASHER,3.5X8X1 |
92200-1251 |
from US $0.79 |
||
