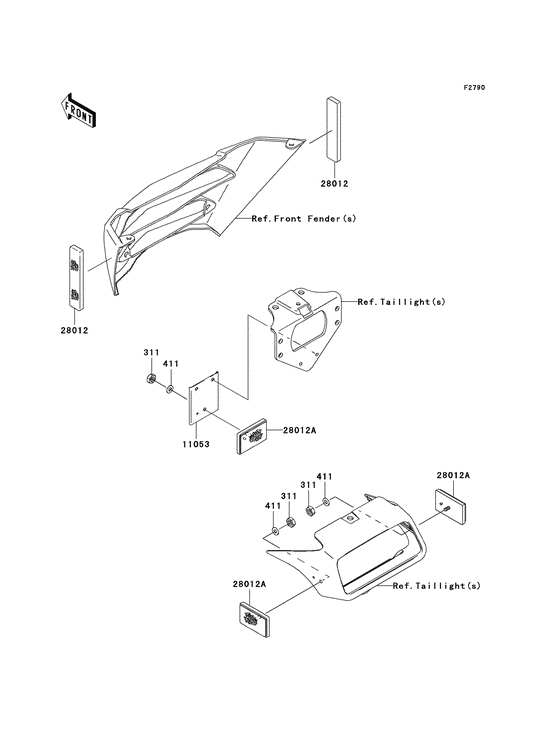

Reflectors (Cn) Diagram Kawasaki KSV700 KFX 700
- Model code
- KSV700-B2
- Engine Capacity
- 697
- Year
- 2005
- Sales region
- USA
- Power
- 49 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
311
|
311
311H0500 NUT-HEX,5MM |
311H0500 |
from US $1.43 |
||
| replacement | |||||
|
311
|
311
311BA0500 NUT-HEX,5MM |
311BA0500 |
from US $0.95 |
||
|
411
|
411
411B0500
W-PLAIN-S
Washer-plain,5mm; |
411B0500 |
— | ||
| replacements | |||||
|
411
|
411
411AA0500 WASHER-PLAIN,5MMWasher-plain,5mm; |
411AA0500 |
from US $0.88 |
||
|
411
|
411
410AA0500 W-PLAIN-SWasher-plain,5mm; |
410AA0500 |
from US $0.78 |
||
|
11053
|
11053
11053-0358 BRACKET,REFLECTOR,RRBracket,reflector,rr; |
11053-0358 |
US $4.14 |
||
|
28012
|
28012
28012-1086 REFLECTOR-REFLEX,FRReflector-reflex,fr; |
28012-1086 |
from US $12.04 |
||
|
28012A
|
28012A
28012-1088 Reflector-reflex |
28012-1088 |
from US $17.58 |
||
