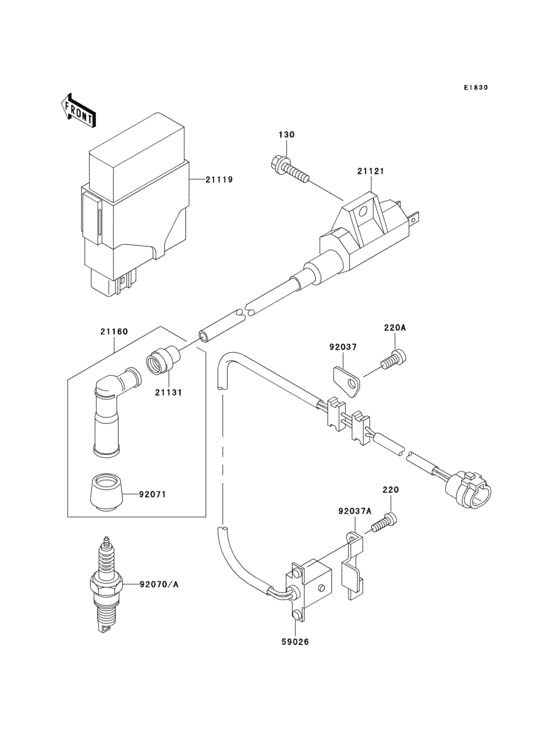

Ignition System Diagram Kawasaki KVF300 Prairie 300 4X4
- Model code
- KVF300-A1
- Engine Capacity
- 271
- Year
- 1999
- Sales region
- Canada
- Frame
- JKAVF8A1 XB500051 - XB513100
- Power
- 22 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 300 4X4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0616 BOLT-FLANGED,6X16 |
130BA0616 |
from US $0.79 |
||
|
220
|
220
220AA0514 SCREW-PAN HEAD,5X14 |
220AA0514 |
from US $0.79 |
||
|
220A
|
220A
220AA0612 SCREW-PAN-CROSS,6X12 |
220AA0612 |
from US $0.91 |
||
|
21119
|
21119
21119-1517
IGNITER
|
21119-1517 |
— | ||
|
21121
|
21121
21121-1198 COIL-IGNITION |
21121-1198 |
from US $103.10 |
||
|
21131
|
21131
21131005 GROMMET,HIGH TENSION |
21131005 |
from US $4.59 |
||
|
21160
|
21160
21160-1089 CAP-ASSY-PLUG |
21160-1089 |
from US $21.46 |
||
|
59026
|
59026
59026-1146 COIL-PULSING |
59026-1146 |
from US $71.38 |
||
|
92037
|
92037
92037-1656 CLAMP,WIRING HARNESS |
92037-1656 |
from US $2.65 |
||
|
92037A
|
92037A
92037-1987 CLAMP |
92037-1987 |
from US $4.98 |
||
|
92070A
|
92070A
23007-1052
Lens-comp,"001-2723"m
|
23007-1052 |
— | ||
|
92071
|
92071
92071-1184 GROMMET,PLUG CAP |
92071-1184 |
from US $3.64 |
