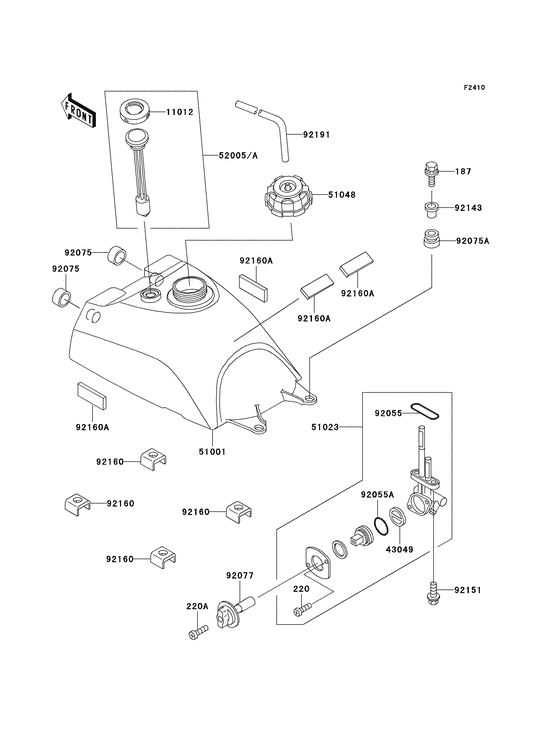

Fuel tank Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-A1
- Engine Capacity
- 391
- Year
- 1997
- Sales region
- USA
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
187
|
187
187G0635 BOLT-UPSET-WSP |
187G0635 |
US $0.74 |
||
| replacement | |||||
|
187
|
187
187BA0635 BOLT-UPSET-WSP |
187BA0635 |
from US $1.24 |
||
|
220
|
220
220B0308
SCREW PAN HEAD 3X8
|
220B0308 |
— | ||
| replacement | |||||
|
220
|
220
220AA0308 SCREW-PAN-CROS |
220AA0308 |
from US $0.79 |
||
|
220A
|
220A
220C0425 SCREW-PAN-CROSSScrew-pan-cros,4x25,black; |
220C0425 |
from US $1.11 |
||
| replacement | |||||
|
220A
|
220A
220AB0425 SCREW-PAN-CROSSScrew-pan-cros,4x25,black; |
220AB0425 |
from US $1.09 |
||
|
11012
|
11012
11012-1627 CAP,FUEL GAUGECap,fuel gauge; |
11012-1627 |
from US $8.24 |
||
|
43049
|
43049
43049-1066
PACKING,TAP VALVE
Packing,tap valve; |
43049-1066 |
— | ||
| replacement | |||||
|
43049
|
43049
43049-1091 PACKING,TAP VALVEPacking,tap valve; |
43049-1091 |
from US $4.59 |
||
|
51001
|
51001
51001-1500 TANK-COMP-FUEL |
51001-1500 |
US $155.81 |
||
|
51023
|
51023
51023-1224 Tap-assy,fuelTap-assy,fuel; |
51023-1224 |
US $78.05 |
||
| replacement | |||||
|
51023
|
51023
51023-1316 TAP-ASSY,FUELTap-assy,fuel; |
51023-1316 |
from US $79 |
||
|
51048
|
51048
51048-1090 Cap-assy-tank,fuelCap-assy-tank,fuel; |
51048-1090 |
US $37.84 |
||
| replacement | |||||
|
51048
|
51048
51048-1133 CAP-ASSY-TANK,FUELCap-assy-tank,fuel; |
51048-1133 |
from US $47.09 |
||
|
52005
|
52005
52005-1086 GAUGE,FUELGauge,fuel; |
52005-1086 |
US $86.36 |
||
| replacement | |||||
|
52005
|
52005
52005-0735 GAUGE,FUELGauge,fuel; |
52005-0735 |
from US $79.52 |
||
|
92055
|
92055
92055-1112 O-RING,FUEL TAP PACKINGRing-o,fuel tap packing; |
92055-1112 |
from US $3.01 |
||
|
92055A
|
92055A
92055-1419 RING-O,TAP LEVERRing-o,tap lever; |
92055-1419 |
from US $3.01 |
||
|
92075
|
92075
92075-1716 DAMPER,FUEL TANKDamper,fuel tank; |
92075-1716 |
from US $5.60 |
||
|
92075A
|
92075A
92075-1787 DAMPER |
92075-1787 |
from US $3.96 |
||
|
92077
|
92077
92077-1098 KNOB,FUEL TAPKnob,fuel tap; |
92077-1098 |
from US $12.83 |
||
|
92143
|
92143
92143-1100 COLLAR,L=19.6Collar,l=19.6; |
92143-1100 |
from US $4.82 |
||
|
92151
|
92151
92151-1198 BOLTBolt,6x14; |
92151-1198 |
from US $2.65 |
||
|
92160
|
92160
92160-1773 DAMPER |
92160-1773 |
from US $3.57 |
||
|
92160A
|
92160A
92160-1834 DAMPER |
92160-1834 |
from US $3.27 |
||
|
92191
|
92191
92191-1107 TUBE,5X9X450Tube,5x9.4x450; |
92191-1107 |
US $7.96 |
||
| replacement | |||||
|
92191
|
92191
92192-0750 TUBE,5X9X450Tube,5x9.4x450; |
92192-0750 |
from US $10.05 |
||
