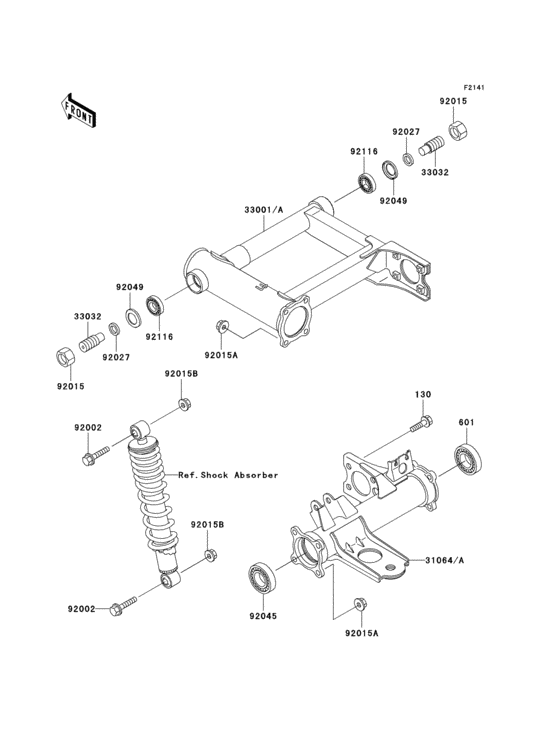

Swingarm Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-A1
- Engine Capacity
- 391
- Year
- 1997
- Sales region
- Canada
- Colour
- Colored Plastic Forest Bluish Green (59)
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J1025 BOLT-FLANGED,10X25 |
130J1025 |
from US $1.90 |
||
| replacement | |||||
|
130
|
130
130BB1025 BOLT-FLANGED,10X25 |
130BB1025 |
from US $1.43 |
||
|
601
|
601
601A6008UU BEARING |
601A6008UU |
from US $30.64 |
||
|
31064
|
31064
31064-1191 Pipe comp |
31064-1191 |
US $107.95 |
||
| replacement | |||||
|
31064
|
31064
31064-1214
PIPE-COMP
|
31064-1214 |
— | ||
|
33001
|
33001
33001-1498 Superceded |
33001-1498 |
US $195.32 |
||
| replacement | |||||
|
33001
|
33001
33001-1552 ARM-COMP-SWING |
33001-1552 |
US $237.40 |
||
|
33032
|
33032
33032-1034 SHAFT-SWING ARM |
33032-1034 |
from US $28.42 |
||
|
92002
|
92002
92002-1840 BOLT |
92002-1840 |
from US $6.18 |
||
|
92015
|
92015
92015-1229 NUT,22MM |
92015-1229 |
from US $6.49 |
||
|
92015A
|
92015A
92015-1335 NUT,LOCK,FLANGED,10MM |
92015-1335 |
from US $3.15 |
||
| replacement | |||||
|
92015A
|
92015A
92210-0276 NUT,LOCK,FLANGED,10MM |
92210-0276 |
from US $1.43 |
||
|
92015B
|
92015B
92015-1617 NUT,LOCK,12MM |
92015-1617 |
from US $6.02 |
||
|
92027
|
92027
92027-1394 COLLAR,17X26X4.5 |
92027-1394 |
from US $4.59 |
||
|
92045
|
92045
92045-1177 BEARING-BALL |
92045-1177 |
from US $44.32 |
||
|
92049
|
92049
92049-1030 OIL SEAL,26406 |
92049-1030 |
from US $7.29 |
||
|
92116
|
92116
92116-1001 BRG,ROLLER,4T30203E1 |
92116-1001 |
from US $20.28 |
||
