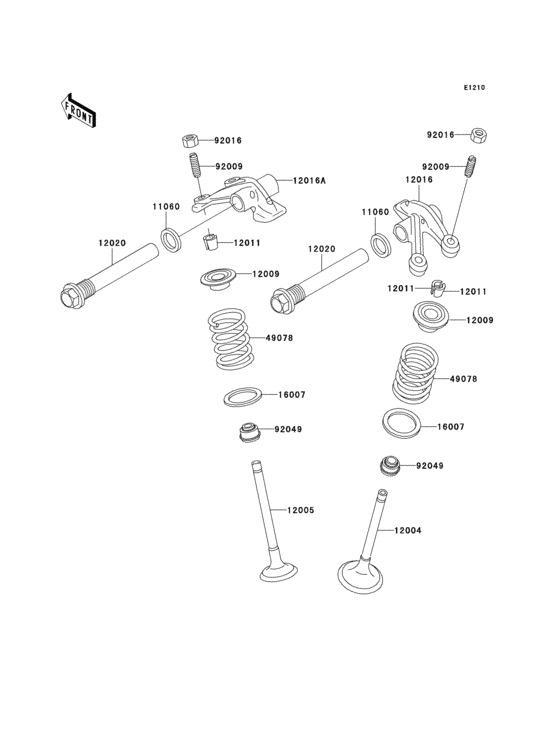

Valve(s) Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-A1
- Engine Capacity
- 391
- Year
- 1997
- Sales region
- Canada
- Colour
- Colored Plastic Forest Bluish Green (59)
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11060
|
11060
11060-1287 GASKET,ROCKER SHAFT |
11060-1287 |
from US $2.85 |
||
|
12004
|
12004
12004-1106 VALVE-INTAKE |
12004-1106 |
from US $30.33 |
||
|
12005
|
12005
12005-1189 VALVE-EXHAUST |
12005-1189 |
from US $52.88 |
||
|
12009
|
12009
12009-1054 Retainer-valve spring |
12009-1054 |
from US $8.40 |
||
|
12011
|
12011
12011-1003 SPLIT KEEPER,VALVE SP |
12011-1003 |
from US $3.33 |
||
|
12016
|
12016
12016-1089 ARM-ROCKER,INTAKE |
12016-1089 |
from US $76.18 |
||
|
12016A
|
12016A
12016-1090 ARM-ROCKER,EXHAUST |
12016-1090 |
from US $76.18 |
||
|
12020
|
12020
12020-1067 SHAFT-ROCKER |
12020-1067 |
US $42.80 |
||
|
16007
|
16007
16007-1178 SEAT-SPRING,17.5X23.8 |
16007-1178 |
from US $4.59 |
||
|
49078
|
49078
49078-1073 SPRING-ENGINE VALVE |
49078-1073 |
from US $17.71 |
||
|
92009
|
92009
92009-1032 SCREW,ADJUSTING |
92009-1032 |
from US $4.28 |
||
|
92016
|
92016
92016-061 NUT,6MM |
92016-061 |
from US $3.17 |
||
| replacement | |||||
|
92016
|
92016
92210-1490 NUT,6MM |
92210-1490 |
from US $2.85 |
||
|
92049
|
92049
92049-1062 SEAL-OIL,RVC2-5.5X8.5 |
92049-1062 |
from US $6.46 |
||
