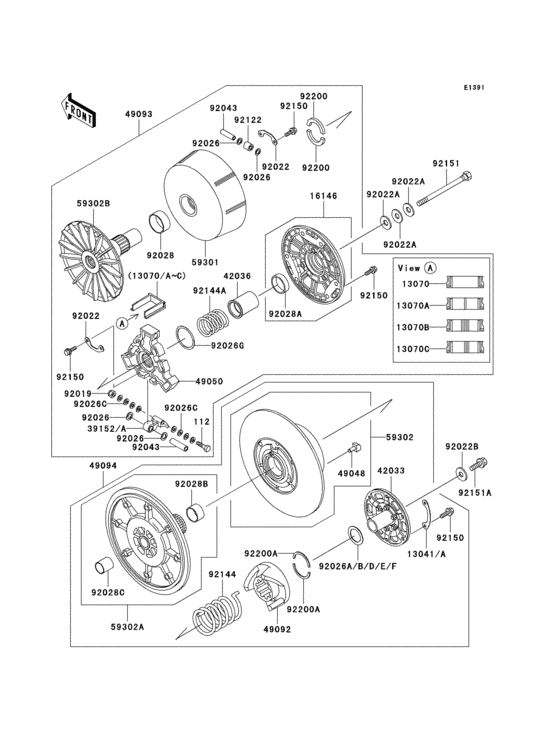

Drive converter(1/2) Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-A2
- Engine Capacity
- 391
- Year
- 1998
- Sales region
- USA
- Colour
- Colored Plastic Hunter Green (6A)
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112G0630
BOLT-UPSET
|
112G0630 |
— | ||
| replacement | |||||
|
112
|
112
112BA0630 BOLT-UPSET |
112BA0630 |
from US $0.86 |
||
|
13041
|
13041
13041-1084 BALANCER,T=0.8 |
13041-1084 |
from US $3.57 |
||
|
13041A
|
13041A
13041-1085 BALANCER,T=1.0 |
13041-1085 |
from US $3.57 |
||
|
13070
|
13070
13070-1302 GUIDE |
13070-1302 |
US $7.60 |
||
|
13070A
|
13070A
13070-1316 GUIDE |
13070-1316 |
from US $6.84 |
||
|
13070B
|
13070B
13070-1317 GUIDE |
13070-1317 |
from US $6.84 |
||
|
13070C
|
13070C
13070-1318 GUIDE,KVF |
13070-1318 |
from US $6.84 |
||
|
16146
|
16146
16146-1088 COVER-ASSY |
16146-1088 |
from US $151.11 |
||
|
39152
|
39152
39152-1053 WEIGHT-RAMP |
39152-1053 |
from US $42.93 |
||
|
39152A
|
39152A
39152-1060 WEIGHT-RAMP |
39152-1060 |
US $46.51 |
||
|
42033
|
42033
42033-1187
COUPLING-ASSY
|
42033-1187 |
— | ||
|
42036
|
42036
42036-1334
SLEEVE
|
42036-1334 |
— | ||
|
49048
|
49048
49048-1057 SHOE |
49048-1057 |
from US $7.45 |
||
|
49050
|
49050
49050-1062
SPIDER
|
49050-1062 |
— | ||
|
49092
|
49092
49092-1058
RAMP,DRIVEN CONVERTER
|
49092-1058 |
— | ||
|
49093
|
49093
49093-1057
CONVERTER-ASSY-DRIVE
|
49093-1057 |
— | ||
|
49094
|
49094
49094-1055 CONVERTER-ASSY-DRIVEN |
49094-1055 |
US $726.46 |
||
| replacement | |||||
|
49094
|
49094
49094-1059
CONVERTER-ASSY-DRIVEN
|
49094-1059 |
— | ||
|
59301
|
59301
59301-1058
SHEAVE-MOVABLE
|
59301-1058 |
— | ||
|
59302
|
59302
59302-1064
SHEAVE-COMP,FIXED
|
59302-1064 |
— | ||
|
59302A
|
59302A
59302-1065
SHEAVE-COMP,MOVABLE
|
59302-1065 |
— | ||
|
59302B
|
59302B
59302-1066
SHEAVE-COMP
|
59302-1066 |
— | ||
|
92019
|
92019
92019-008 NUT |
92019-008 |
from US $2.53 |
||
|
92022
|
92022
92022-1899 WASHER |
92022-1899 |
from US $2.79 |
||
|
92022A
|
92022A
92022-1901 WASHER,SPECIAL CONICA |
92022-1901 |
from US $3.57 |
||
|
92022B
|
92022B
92022-1982 WASHER |
92022-1982 |
from US $4.82 |
||
|
92026
|
92026
92026-1304 SPACER,10X16X0.8 |
92026-1304 |
from US $2.49 |
||
|
92026A
|
92026A
92026-1485 SPACER,32.3X46X1.0 |
92026-1485 |
US $5.08 |
||
|
92026B
|
92026B
92026-1486 SPACER,32.3X46X1.6 |
92026-1486 |
US $5.08 |
||
|
92026C
|
92026C
92026-1491 SPACER |
92026-1491 |
from US $1.56 |
||
|
92026D
|
92026D
92026-1492 SPACER,32.3X46X1.2 |
92026-1492 |
US $3.37 |
||
|
92026E
|
92026E
92026-1494 SPACER,32.3X46X0.8 |
92026-1494 |
US $3.71 |
||
|
92026F
|
92026F
92026-1495 SPACER,32.3X46X0.6 |
92026-1495 |
US $3.71 |
||
|
92026G
|
92026G
92026-1498 SPACER |
92026-1498 |
from US $4.82 |
||
|
92028
|
92028
92028-1508 BUSHING,43X47X20 |
92028-1508 |
from US $8.09 |
||
| replacement | |||||
|
92028
|
92028
92139-1150 BUSHING,43X47X20 |
92139-1150 |
US $15.74 |
||
|
92028A
|
92028A
92028-1511 BUSHING,40X44X12 |
92028-1511 |
from US $12.43 |
||
|
92028B
|
92028B
92028-1513 BUSHING,32X36X20 |
92028-1513 |
US $7.78 |
||
|
92028C
|
92028C
92028-1514 BUSHING.25X28X30 |
92028-1514 |
from US $15.26 |
||
|
92043
|
92043
92043-1370 PIN,6.5X10X38 |
92043-1370 |
from US $5.44 |
||
|
92122
|
92122
92122-1152 ROLLER |
92122-1152 |
from US $15.71 |
||
|
92144
|
92144
92144-1977
SPRING,DRIVEN CONVERT
|
92144-1977 |
— | ||
|
92144A
|
92144A
92144-1978
SPRING,DRIVE CONVERTE
|
92144-1978 |
— | ||
|
92150
|
92150
92150-1014 BOLT,6X20 |
92150-1014 |
from US $2.65 |
||
|
92151
|
92151
92151-1119 BOLT,CONVERTER,DRIVE |
92151-1119 |
US $16.02 |
||
|
92151A
|
92151A
92151-1120
BOLT,CONVERTER,DRIVE
|
92151-1120 |
— | ||
|
92200
|
92200
92200-1295 WASHER |
92200-1295 |
US $12.11 |
||
|
92200A
|
92200A
92200-1342 WASHER |
92200-1342 |
US $2.59 |
||
