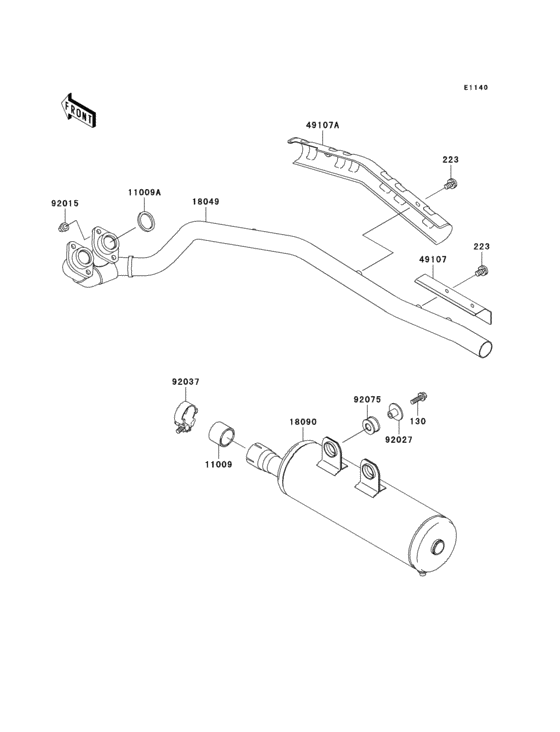

Muffler(s) Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-A2
- Engine Capacity
- 391
- Year
- 1998
- Sales region
- USA
- Colour
- Colored Plastic Hunter Green (6A)
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0825
BOLT-FLANGED,8X25,BLA
|
130J0825 |
— | ||
| replacements | |||||
|
130
|
130
130BB0825 BOLT-FLANGED,8X25,BLA |
130BB0825 |
from US $1.27 |
||
|
130
|
130
130CB0825 BOLT-FLANGED |
130CB0825 |
from US $1.96 |
||
|
223
|
223
223C0610
SCREW-PAN-WS-CROS
|
223C0610 |
— | ||
| replacement | |||||
|
223
|
223
223AB0610 SCREW-PAN-WS-CROS |
223AB0610 |
from US $1.11 |
||
|
11009
|
11009
11009-1667 GASKET,EXHAUST PIPE C |
11009-1667 |
from US $19.11 |
||
|
11009A
|
11009A
11009-1866 GASKET,EXHAUST PIPE H |
11009-1866 |
from US $4.91 |
||
|
18049
|
18049
18049-1753
PIPE-EXHAUST
|
18049-1753 |
— | ||
|
18090
|
18090
18090-1525
BODY-COMP-MUFFLER
|
18090-1525 |
— | ||
|
49107
|
49107
49107-1130 COVER-EXHAUST PIPE |
49107-1130 |
from US $25.27 |
||
|
49107A
|
49107A
49107-1135 COVER-EXHAUST PIPE |
49107-1135 |
from US $55.37 |
||
|
92015
|
92015
92015-1402 NUT,8MM |
92015-1402 |
from US $2.85 |
||
|
92027
|
92027
92027-1981 COLLAR,MUFFLER |
92027-1981 |
from US $6.54 |
||
|
92037
|
92037
92037-1349 CLAMP,42MM |
92037-1349 |
from US $10.09 |
||
|
92075
|
92075
92075-1809 DAMPER,MUFFLER |
92075-1809 |
from US $4.98 |
||
