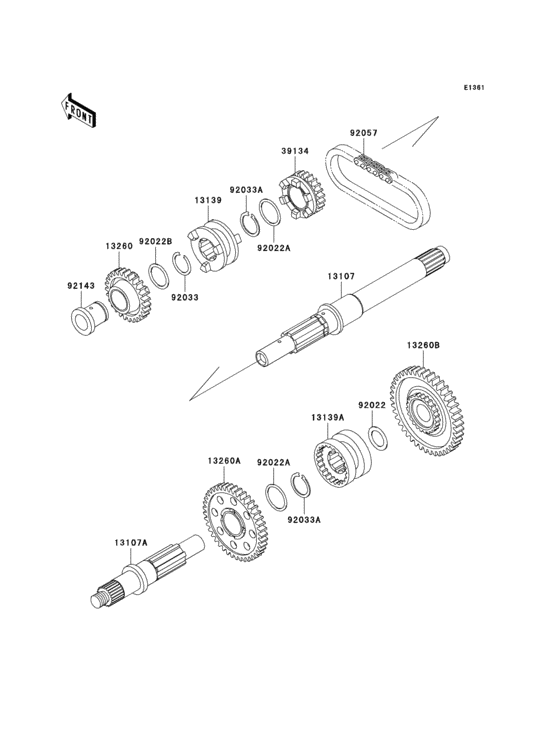

Transmission Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-A2
- Engine Capacity
- 391
- Year
- 1998
- Sales region
- USA
- Colour
- Colored Plastic Hunter Green (6A)
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13107
|
13107
13107-1361 SHAFT,INPUT |
13107-1361 |
US $124.97 |
||
|
13107A
|
13107A
13107-1362 SHAFT,OUTPUT |
13107-1362 |
US $79.34 |
||
|
13139
|
13139
13139-1074
SHIFTER,FORWARD/REVER
|
13139-1074 |
— | ||
|
13139A
|
13139A
13139-1076 SHIFTER,HI/LOW |
13139-1076 |
US $117.83 |
||
|
13260
|
13260
13260-1638 GEAR,INPUT FORWARD,27 |
13260-1638 |
US $104.33 |
||
|
13260A
|
13260A
13260-1670 GEAR,OUTPUT,41T |
13260-1670 |
US $109.53 |
||
|
13260B
|
13260B
13260-1675
GEAR,OUTPUT LOW,42T
|
13260-1675 |
— | ||
|
39134
|
39134
39134-1058 SPROCKET-DRIVE,REVERS |
39134-1058 |
US $98.44 |
||
|
92022
|
92022
92022-112 WASHER THRUST |
92022-112 |
from US $5.54 |
||
|
92022A
|
92022A
92022-1731 WASHER,28.1X34X1.0 |
92022-1731 |
from US $3.89 |
||
|
92022B
|
92022B
92022-1800 WASHER,25.3X32X1 |
92022-1800 |
from US $2.79 |
||
|
92033
|
92033
92033-026 CIRCLIP |
92033-026 |
from US $6.72 |
||
|
92033A
|
92033A
92033-1037 SNAP RING,25.9X1.2T |
92033-1037 |
from US $2.85 |
||
|
92057
|
92057
92057-1421 CHAIN,REVERSE,81RH252 |
92057-1421 |
from US $39.92 |
||
|
92143
|
92143
92143-1899 COLLAR,FORWARD GEAR |
92143-1899 |
US $24.97 |
