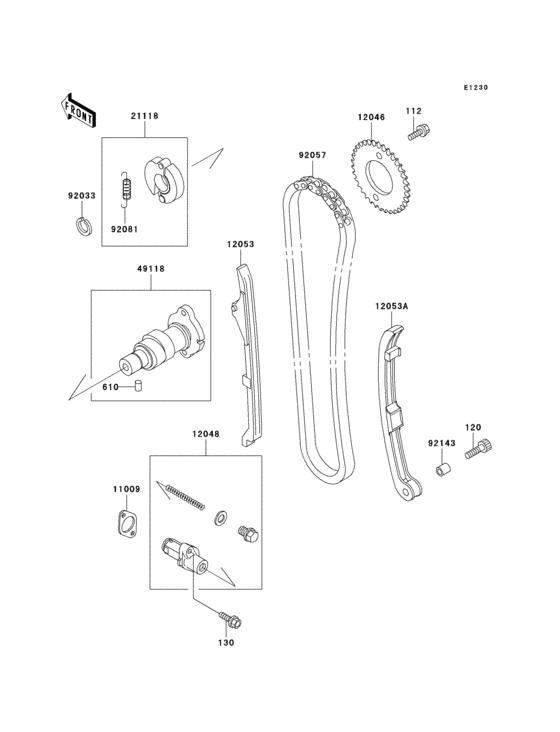

Camshaft(s)/tensioner Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-A2
- Engine Capacity
- 391
- Year
- 1998
- Sales region
- Canada
- Frame
- JKAVFKA1 WB513501 - 999999
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112BA0610 BOLT-UPSET |
112BA0610 |
from US $0.92 |
||
|
120
|
120
120CA0625 BOLT-SOCKET,6X25 |
120CA0625 |
from US $0.95 |
||
|
130
|
130
130BB0625 BOLT-FLANGED,6X25 |
130BB0625 |
from US $1.61 |
||
|
610
|
610
610A0406 PIN-DOWEL,4X6 |
610A0406 |
from US $0.79 |
||
|
11009
|
11009
11009-1858 GASKET,TENSIONER |
11009-1858 |
from US $4.09 |
||
|
12046
|
12046
12046-1131 SPROCKET,CAM,38T |
12046-1131 |
from US $48.99 |
||
|
12048
|
12048
12048-1086 TENSIONER-ASSY |
12048-1086 |
from US $122.07 |
||
|
12053
|
12053
12053-1289
GUIDE-CHAIN,FR
|
12053-1289 |
— | ||
|
12053A
|
12053A
12053-1290
GUIDE-CHAIN,RR
|
12053-1290 |
— | ||
|
21118
|
21118
21118-1082
DECOMPRESSOR
|
21118-1082 |
— | ||
|
49118
|
49118
49118-1201
CAMSHAFT-COMP
|
49118-1201 |
— | ||
|
92033
|
92033
92033-1214 RING-SNAP,18.7MM |
92033-1214 |
from US $3.17 |
||
|
92057
|
92057
92057-1256 CHAIN,CAMSHAFT,82RH20 |
92057-1256 |
from US $94.25 |
||
|
92081
|
92081
92081-1674 SPRING,DECOMPRESSOR |
92081-1674 |
from US $3.57 |
||
|
92143
|
92143
92143-1253 COLLAR,6X8X10.2 |
92143-1253 |
from US $3.27 |
