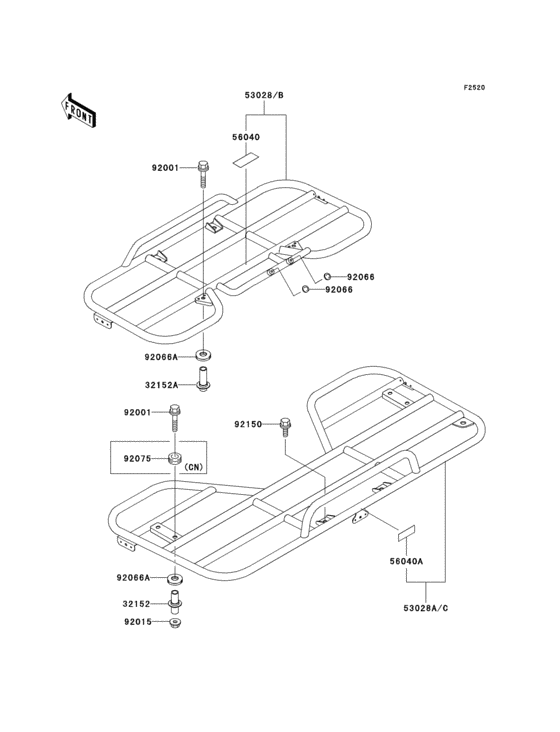

Carrier(s) Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-A2
- Engine Capacity
- 391
- Year
- 1998
- Sales region
- Canada
- Frame
- JKAVFKA1 WB513501 - 999999
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32152
|
32152
32152-1066 PIPE,REAR CARRIER |
32152-1066 |
from US $10.73 |
||
|
32152A
|
32152A
32152-1067 PIPE,FRONT CARRIER |
32152-1067 |
from US $13.24 |
||
|
53028B
|
53028B
53028-1080-1U CARRIER-ASSY,FR,S.GRA |
53028-1080-1U |
US $134.91 |
||
|
53028C
|
53028C
53028-1081-1U CARRIER-ASSY,RR,S.GRA |
53028-1081-1U |
US $212.63 |
||
|
56040
|
56040
56040-1321 LABEL-WARNING,MAXIMUM |
56040-1321 |
from US $4.35 |
||
|
56040A
|
56040A
56040-1322 LABEL-WARNING,MAXIMUM |
56040-1322 |
from US $2.47 |
||
|
92001
|
92001
92001-1642 BOLT,FLANGED,8X75,BLA |
92001-1642 |
from US $3.89 |
||
|
92015
|
92015
92210-0005 NUT,FLANGED,LOCK,8MM |
92210-0005 |
from US $2.30 |
||
|
92066A
|
92066A
92066-1438 PLUG |
92066-1438 |
from US $5.44 |
||
|
92075
|
92075
92075-1086 DAMPER RUBBER,MUFFLER |
92075-1086 |
from US $3.48 |
||
|
92150
|
92150
92150-1780 BOLT,8X12 |
92150-1780 |
from US $3.33 |
