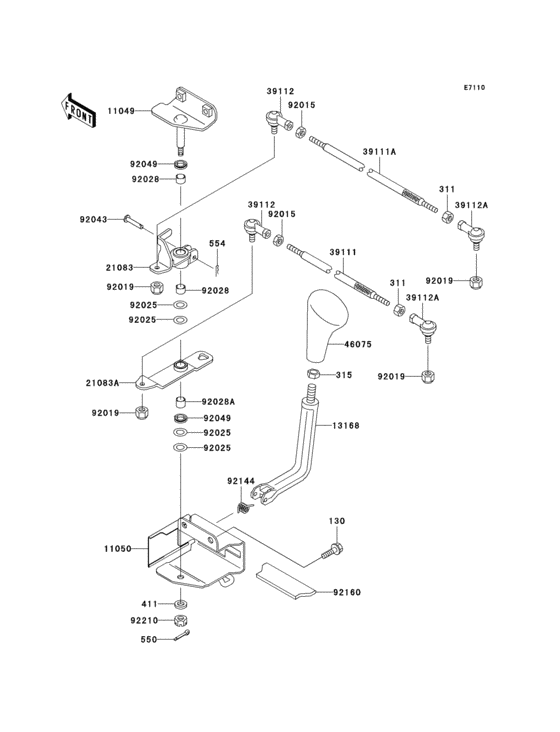

Control Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-A2
- Engine Capacity
- 391
- Year
- 1998
- Sales region
- Canada
- Frame
- JKAVFKA1 WB513501 - 999999
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0816 BOLT-FLANGED |
130BB0816 |
from US $1.43 |
||
|
311
|
311
311BB0600 NUT-HEX,6MM |
311BB0600 |
from US $0.72 |
||
|
315
|
315
315BB1000 NUT-HEX-FINE |
315BB1000 |
from US $1.09 |
||
|
411
|
411
411F0800 WASHER-PLAIN,8.5X18X1 |
411F0800 |
US $2.68 |
||
| replacement | |||||
|
411
|
411
411AB0800 WASHER-PLAIN,8.5X18X1 |
411AB0800 |
from US $0.79 |
||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15 |
550AA2015 |
from US $0.63 |
||
|
554
|
554
554DA0500 PIN-SNAP |
554DA0500 |
from US $1.73 |
||
|
11049
|
11049
11049-1463 BRACKET |
11049-1463 |
US $34.07 |
||
|
11050
|
11050
11050-1436
BRACKET
|
11050-1436 |
— | ||
|
13168
|
13168
13168-1637
LEVER,SHIFT
|
13168-1637 |
— | ||
|
21083
|
21083
21083-1121 ARM |
21083-1121 |
US $123.18 |
||
|
21083A
|
21083A
21083-1132 ARM |
21083-1132 |
US $18.18 |
||
|
39111
|
39111
39111-1148
ROD-TIE,HI/LOW
|
39111-1148 |
— | ||
|
39111A
|
39111A
39111-1149
ROD-TIE,FR
|
39111-1149 |
— | ||
|
39112
|
39112
39112-1006 RODEND,TIE,GR CHANGE |
39112-1006 |
from US $30.33 |
||
|
39112A
|
39112A
39112-1070
RODEND-TIE
|
39112-1070 |
— | ||
|
46075
|
46075
46075-1164 GRIP,SHIFT LEVER |
46075-1164 |
US $37.26 |
||
|
92015
|
92015
92015-1178 NUT |
92015-1178 |
from US $3.37 |
||
|
92019
|
92019
92019-008 NUT |
92019-008 |
from US $2.53 |
||
|
92025
|
92025
92025-1780 SHIM |
92025-1780 |
from US $1.58 |
||
|
92028
|
92028
92028-1787 BUSHING,L=8 |
92028-1787 |
from US $3.57 |
||
|
92028A
|
92028A
92028-1788 BUSHING,L=10 |
92028-1788 |
from US $3.57 |
||
|
92043
|
92043
92043-1434 PIN,5X27.5 |
92043-1434 |
from US $5.54 |
||
|
92049
|
92049
92049-1458 SEAL-OIL |
92049-1458 |
from US $6.84 |
||
|
92144
|
92144
92144-1936
SPRING
|
92144-1936 |
— | ||
|
92160
|
92160
92160-1820 DAMPER |
92160-1820 |
US $5.45 |
||
|
92210
|
92210
92210-1053 NUT,CASTLE,8MM |
92210-1053 |
US $3.37 |
||
