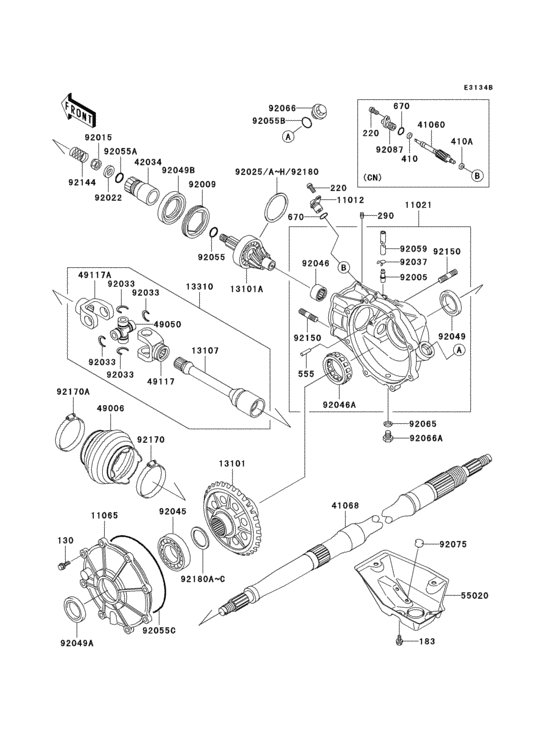

Drive shaft(1/2)(rear) Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-A2
- Engine Capacity
- 391
- Year
- 1998
- Sales region
- Canada
- Frame
- JKAVFKA1 WB513501 - 999999
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130CA0825 BOLT-FLANGED,8X25 |
130CA0825 |
from US $0.94 |
||
|
183
|
183
183BA0814 BOLT-UPSET-WS-SMALL |
183BA0814 |
from US $1.09 |
||
|
220
|
220
220AD0614 SCREW-PAN-CROS |
220AD0614 |
from US $1.09 |
||
|
290
|
290
290Q0612 SCREW-SET-SOCKET |
290Q0612 |
from US $3.27 |
||
|
410
|
410
410AA0500 W-PLAIN-S |
410AA0500 |
from US $0.78 |
||
|
410A
|
410A
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.79 |
||
|
555
|
555
555A0422 PIN-SPRING |
555A0422 |
from US $2.95 |
||
|
670
|
670
670B2012 O RING,12MM |
670B2012 |
from US $2.84 |
||
|
11021
|
11021
11021-1126 CASE-ASSY,DRIVE SHAFT |
11021-1126 |
US $256.36 |
||
|
11065
|
11065
11065-1103 CAP |
11065-1103 |
from US $130.64 |
||
|
13101
|
13101
13101-1286 GEAR-ASSY,BEVEL |
13101-1286 |
US $299.74 |
||
|
13101A
|
13101A
13101-1237
GEAR-ASSY,BEVEL
|
13101-1237 |
— | ||
|
13107
|
13107
13107-1351 SHAFT |
13107-1351 |
US $136.48 |
||
|
13310
|
13310
13310-1016 SHAFT-ASSY |
13310-1016 |
US $188.96 |
||
|
41060
|
41060
41060-1157
GEAR-METER SCREW
|
41060-1157 |
— | ||
|
41068
|
41068
41068-1388 AXLE |
41068-1388 |
from US $344.39 |
||
|
42034
|
42034
42034-1145 COUPLING |
42034-1145 |
from US $83.20 |
||
|
49006
|
49006
49006-1307 BOOT |
49006-1307 |
US $32.95 |
||
|
49050
|
49050
49050-1057 SPIDER |
49050-1057 |
from US $65.23 |
||
|
49117
|
49117
49117-1083
YOKE,DRIVE
|
49117-1083 |
— | ||
|
49117A
|
49117A
49117-1084
YOKE,DRIVE
|
49117-1084 |
— | ||
|
55020
|
55020
55020-1551 GUARD |
55020-1551 |
US $17.57 |
||
|
92005
|
92005
92005-1127 FITTING,BREATHER |
92005-1127 |
from US $11.88 |
||
|
92009
|
92009
92009-1528 SCREW |
92009-1528 |
from US $17.73 |
||
|
92015
|
92015
92015-1182 NUT,12MM |
92015-1182 |
from US $4.44 |
||
|
92022
|
92022
92022-1293 WASHER,12X3X25X3.2 |
92022-1293 |
from US $3.96 |
||
|
92025
|
92025
92025-1669 SHIM,52.5X61.5X0.15 |
92025-1669 |
from US $6.68 |
||
|
92025A
|
92025A
92025-1670 SHIM,52.5X61.5X0.18 |
92025-1670 |
from US $6.68 |
||
|
92025B
|
92025B
92025-1671 SHIM,52.5X61.5X0.8 |
92025-1671 |
from US $6.68 |
||
|
92025C
|
92025C
92025-1672 SHIM,52.5X61.5X0.9 |
92025-1672 |
from US $6.68 |
||
|
92025D
|
92025D
92025-1673 SHIM,52.5X61.5X1.0 |
92025-1673 |
from US $6.68 |
||
|
92025E
|
92025E
92025-1674 SHIM,52.5X61.5X1.1 |
92025-1674 |
from US $8.09 |
||
|
92025F
|
92025F
92025-1675 SHIM,52.5X61.5X1.2 |
92025-1675 |
from US $8.09 |
||
|
92025G
|
92025G
92025-1676 SHIM,52.5X61.5X1.3 |
92025-1676 |
from US $8.09 |
||
|
92025H
|
92025H
92025-1677 SHIM,52.5X61.5X1.4 |
92025-1677 |
from US $8.09 |
||
|
92033
|
92033
92033-1283 RING-SNAP |
92033-1283 |
from US $3.74 |
||
|
92037
|
92037
92037-147 CLAMP,CHAIN OILER |
92037-147 |
from US $4.95 |
||
|
92045
|
92045
92045-1015 BEARING,BALL,#6009 |
92045-1015 |
from US $38.90 |
||
|
92046
|
92046
92046-1183 BEARING-NEEDLE,NK20/1 |
92046-1183 |
US $35.93 |
||
|
92046A
|
92046A
92046-1247 BEARING-NEEDLE |
92046-1247 |
from US $36.23 |
||
|
92049
|
92049
92049-1248 SEAL-OIL |
92049-1248 |
from US $14.57 |
||
|
92049A
|
92049A
92049-1287 SEAL-OIL |
92049-1287 |
from US $8.24 |
||
|
92049B
|
92049B
92049-1460 SEAL-OIL |
92049-1460 |
from US $10.27 |
||
|
92055
|
92055
92055-012 0 RING,18MM |
92055-012 |
from US $1.43 |
||
|
92055A
|
92055A
92055-1119 RING-0,27MM |
92055-1119 |
from US $3.33 |
||
|
92055B
|
92055B
92055-1136 RING-O,25.7X2.4 |
92055-1136 |
from US $3.73 |
||
|
92055C
|
92055C
92055-1410 RING-O,154.1X2.5 |
92055-1410 |
from US $10.27 |
||
|
92059
|
92059
92059-1929 TUBE,4.7X8.5X900 |
92059-1929 |
from US $8.55 |
||
|
92065
|
92065
92065-058 GASKET |
92065-058 |
from US $3.37 |
||
|
92066
|
92066
92066-1303 PLUG |
92066-1303 |
from US $13.19 |
||
|
92066A
|
92066A
92066-1490 PLUG |
92066-1490 |
from US $1.87 |
||
|
92075
|
92075
92075-021 DAMPER RUBB OIL TANK |
92075-021 |
from US $3.64 |
||
|
92087
|
92087
92087-1057 BUSHING-METER GEAR |
92087-1057 |
from US $13.38 |
||
|
92144
|
92144
92144-1278 SPRING |
92144-1278 |
from US $2.95 |
||
|
92150
|
92150
92150-1197 BOLT,10X22 |
92150-1197 |
from US $3.57 |
||
|
92170
|
92170
92170-1763 CLAMP |
92170-1763 |
from US $5.90 |
||
|
92170A
|
92170A
92170-1764 CLAMP |
92170-1764 |
from US $12.05 |
||
|
92180
|
92180
92180-1115 SHIM,52.5X61.5X0.10 |
92180-1115 |
US $9.27 |
||
|
92180A
|
92180A
92180-1205 SHIM,T=1.0 |
92180-1205 |
from US $3.27 |
||
|
92180B
|
92180B
92180-1206 SHIM,T=0.1 |
92180-1206 |
US $4 |
||
|
92180C
|
92180C
92180-1207 SHIM,T=0.5 |
92180-1207 |
from US $3.27 |
