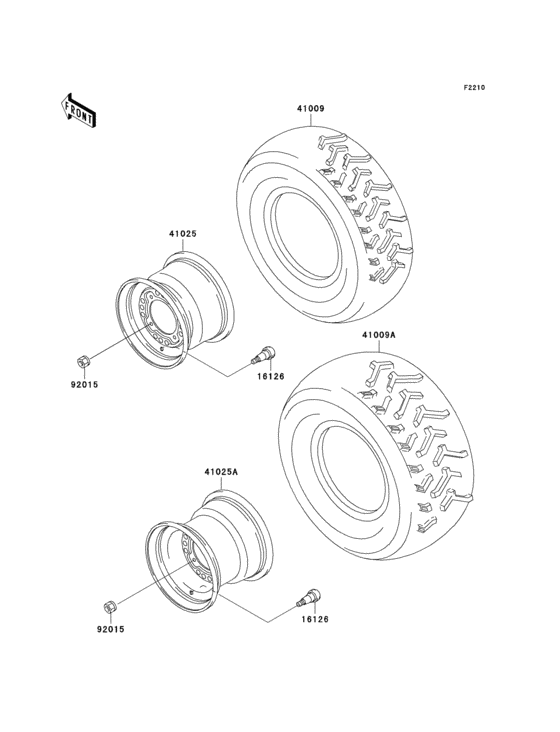

Wheels/tires Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-A2
- Engine Capacity
- 391
- Year
- 1998
- Sales region
- Canada
- Frame
- JKAVFKA1 WB513501 - 999999
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16126
|
16126
16126-4001 VALVE,TIRE |
16126-4001 |
from US $12.48 |
||
|
41009
|
41009
41009-0297 TIRE,FR,AT25X8-12 |
41009-0297 |
from US $158.25 |
||
|
41009A
|
41009A
41009-1118 TIRE,RR,AT25X11-10,KT |
41009-1118 |
US $160.52 |
||
|
41025
|
41025
41025-1313-5A RIM,FR,12X6.0,SILVER |
41025-1313-5A |
from US $119.81 |
||
|
41025A
|
41025A
41025-1314-5A RIM,RR,10X8.5,SILVER |
41025-1314-5A |
from US $119.81 |
||
|
92015
|
92015
92210-1204 NUT,LOCK,10MM |
92210-1204 |
from US $5.59 |
