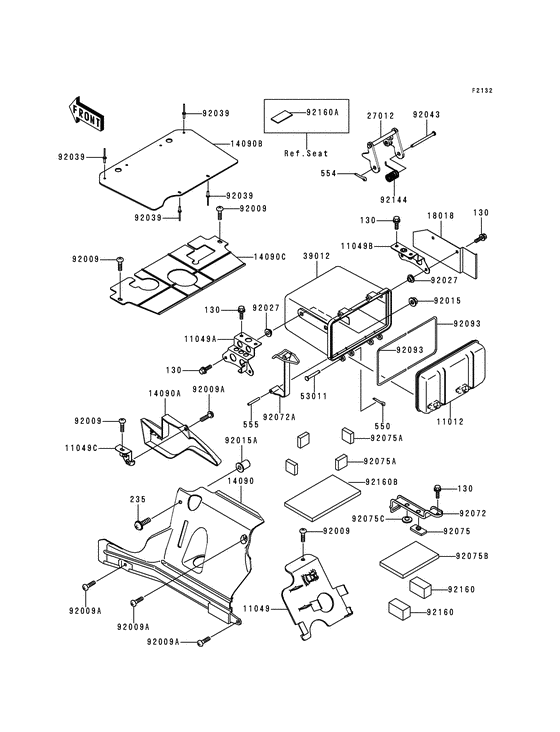

Battery case Diagram Kawasaki KVF400 Prairie 400
- Model code
- KVF400-B1
- Engine Capacity
- 391
- Year
- 1998
- Sales region
- USA
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Prairie 400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0614
BOLT-FLANGED,6X14
Bolt-flanged,6x14,black; |
130J0614 |
— | ||
| replacement | |||||
|
130
|
130
130BB0614 BOLT-FLANGED,6X14Bolt-flanged,6x14,black; |
130BB0614 |
from US $1.11 |
||
|
235
|
235
235C0516 SCREW-PAN-WP-CROS |
235C0516 |
from US $0.95 |
||
| replacement | |||||
|
235
|
235
235AB0516 SCREW-PAN-WP-CROS, 5x16 |
235AB0516 |
from US $0.48 |
||
|
550
|
550
550D2012 PIN,COTTER,2.0X12Pin-cotter,2.0x12; |
550D2012 |
from US $0.38 |
||
| replacement | |||||
|
550
|
550
550AA2012 PIN,COTTER,2.0X12Pin-cotter,2.0x12; |
550AA2012 |
from US $0.94 |
||
|
554
|
554
554A0600
PIN-SNAP
|
554A0600 |
— | ||
| replacement | |||||
|
554
|
554
554DA0600 PIN-SNAP |
554DA0600 |
from US $1.36 |
||
|
555
|
555
555A0436 PIN-SPRING |
555A0436 |
from US $2.95 |
||
|
11012
|
11012
11012-1951 CAP,STORAGE CASECap,storage case; |
11012-1951 |
from US $9.49 |
||
|
11049
|
11049
11049-1516 BRACKET,ELECTRIC BASEBracket,electric base; |
11049-1516 |
from US $9.38 |
||
| replacement | |||||
|
11049
|
11049
11052-7529 BRACKET,ELECTRIC BASEBracket,electric base; |
11052-7529 |
from US $8.40 |
||
|
11049A
|
11049A
11049-1733
BRACKET,STORAGE CASE,
Bracket,storage case,lh; |
11049-1733 |
— | ||
|
11049B
|
11049B
11049-1734 BRACKET,STORAGE CASE,Bracket,storage case,rh; |
11049-1734 |
US $10.89 |
||
|
11049C
|
11049C
11049-1738 BRACKET |
11049-1738 |
US $3.89 |
||
|
14090
|
14090
14090-1667 Cover,engine,lhCover,engine,lh; |
14090-1667 |
US $13.48 |
||
| replacement | |||||
|
14090
|
14090
14091-1173-6Z COVER,ENGINE,LH,F.BLACover,engine,lh; |
14091-1173-6Z |
US $15.16 |
||
|
14090A
|
14090A
14090-1668 COVER,ENGINE,RHCover,engine,rh; |
14090-1668 |
US $10.71 |
||
|
14090B
|
14090B
14090-1723 COVER,FRONT COVERCover,front cover; |
14090-1723 |
US $14.71 |
||
|
14090C
|
14090C
14090-1724 COVER,REAR COVERCover,rear cover; |
14090-1724 |
US $14.92 |
||
| replacement | |||||
|
14090C
|
14090C
14091-1379 COVER,REAR COVERCover,rear cover; |
14091-1379 |
US $14.92 |
||
|
18018
|
18018
18018-1127 PLATE-HEAT GUARD |
18018-1127 |
US $10.73 |
||
|
27012
|
27012
27012-1381 HOOK,SEATHook,seat; |
27012-1381 |
from US $23.49 |
||
|
39012
|
39012
39012-1059 CASE-STORAGE |
39012-1059 |
US $16.27 |
||
|
53011
|
53011
53011006 PIN, DUAL SEAT PIVOTPin,6x39; |
53011006 |
US $6.70 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPING |
92009-1166 |
from US $2.88 |
||
|
92009A
|
92009A
92009-1621
SCREW
Screw,6x16; |
92009-1621 |
— | ||
| replacement | |||||
|
92009A
|
92009A
92009-1694 SCREWScrew,6x16; |
92009-1694 |
from US $5.13 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MMNut,flanged,6mm,black; |
92015-1233 |
from US $3.90 |
||
|
92015A
|
92015A
92015-1757 NUT,5MMNut,well,5mm; |
92015-1757 |
from US $4.25 |
||
|
92027
|
92027
92027-1933 COLLAR,L=5.6Collar,l=5.6; |
92027-1933 |
from US $3.48 |
||
|
92039
|
92039
92039-3712 RIVET |
92039-3712 |
from US $2.48 |
||
|
92043
|
92043
92043-1367 PIN,6X77Pin,6x77; |
92043-1367 |
from US $4.82 |
||
|
92072
|
92072
92072-1333 BAND,BATTERYBand,battery; |
92072-1333 |
US $4.61 |
||
| replacement | |||||
|
92072
|
92072
92072-7501 BAND,BATTERYBand,battery; |
92072-7501 |
from US $7.91 |
||
|
92072A
|
92072A
92072-1337 BAND,STORAGE CASEBand,storage case; |
92072-1337 |
US $25.16 |
||
| replacement | |||||
|
92072A
|
92072A
92072-0098 BAND,STORAGE CASEBand,storage case; |
92072-0098 |
from US $22.32 |
||
|
92075
|
92075
92075-1054 DAMPER RUBBER,SEAT |
92075-1054 |
from US $3.17 |
||
|
92075A
|
92075A
92075-1483 DAMPER,FUEL TANK,RRDamper,fuel tank,rr; |
92075-1483 |
from US $6.84 |
||
|
92075B
|
92075B
92075-1997 DAMPER,BATTERYDamper,battery; |
92075-1997 |
from US $5.28 |
||
|
92075C
|
92075C
92075-261 DAMPER,BATTERY CASEDamper,rubber; |
92075-261 |
from US $2.85 |
||
| replacement | |||||
|
92075C
|
92075C
92161-1200 DAMPER,RUBBERDamper,rubber; |
92161-1200 |
from US $3.54 |
||
|
92093
|
92093
92093-1457 SEAL |
92093-1457 |
from US $4.05 |
||
|
92144
|
92144
92144-1174 SPRING,SEAT HOOKSpring,seat hook; |
92144-1174 |
from US $3.89 |
||
|
92160
|
92160
92160-1744 DAMPER |
92160-1744 |
from US $3.48 |
||
|
92160A
|
92160A
92160-1846 DAMPER |
92160-1846 |
US $3.71 |
||
|
92160B
|
92160B
92160-1926 Damper,batteryDamper,battery; |
92160-1926 |
US $5.28 |
||
