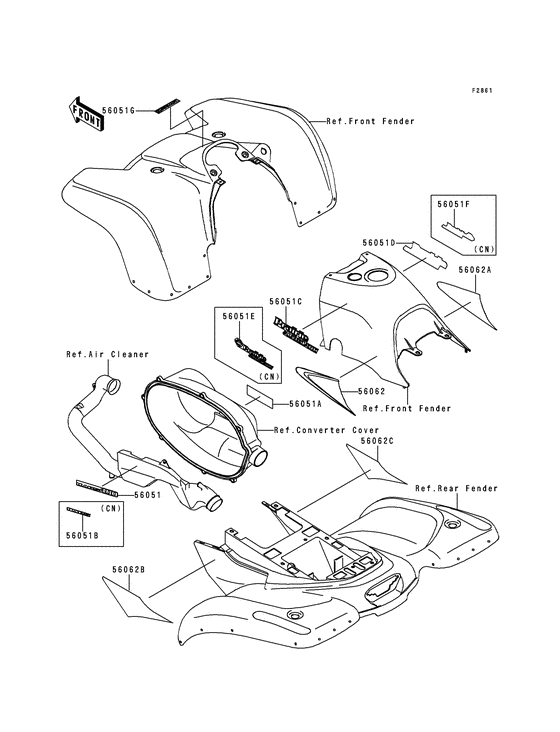

Decals (Green) Diagram Kawasaki KVF400 Prairie 400
- Model code
- KVF400-B1
- Engine Capacity
- 391
- Year
- 1998
- Sales region
- USA
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Prairie 400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56051
|
56051
56051-1476 MARK,AIR CLEANER COVEMark,air cleaner cover; |
56051-1476 |
US $18.36 |
||
|
56051A
|
56051A
56051-1483 MARK,BELT CONVERTER CMark,belt converter cover; |
56051-1483 |
US $17.15 |
||
|
56051B
|
56051B
56051-1484
Mark,air cleaner cover
Mark,air cleaner cover; |
56051-1484 |
— | ||
|
56051C
|
56051C
56051-1643 MARK,FUEL TANK COVER,Mark,fuel tank cover,lh; |
56051-1643 |
US $25.97 |
||
|
56051D
|
56051D
56051-1644 MARK,FUEL TANK COVER,Mark,fuel tank cover,rh; |
56051-1644 |
US $25.97 |
||
|
56051E
|
56051E
56051-1669
Mark,fuel tank cover,lh
Mark,fuel tank cover,lh; |
56051-1669 |
— | ||
|
56051F
|
56051F
56051-1670
Mark,fuel tank cover,rh
Mark,fuel tank cover,rh; |
56051-1670 |
— | ||
|
56051G
|
56051G
56051-1673 MARK,FR FENDER,KAWASAMark,fr fender,kawasaki; |
56051-1673 |
US $6.55 |
||
|
56062
|
56062
56062-1115 PATTERN,FUEL TANK COVPattern,fuel tank cover,lh; |
56062-1115 |
US $49.37 |
||
|
56062A
|
56062A
56062-1116 PATTERN,FUEL TANK COVPattern,fuel tank cover,rh; |
56062-1116 |
US $51.84 |
||
|
56062B
|
56062B
56062-1123 PATTERN,RR FENDER,LHPattern,rr fender,lh; |
56062-1123 |
US $25.92 |
||
|
56062C
|
56062C
56062-1124 PATTERN,RR FENDER,RHPattern,rr fender,rh; |
56062-1124 |
US $25.92 |
