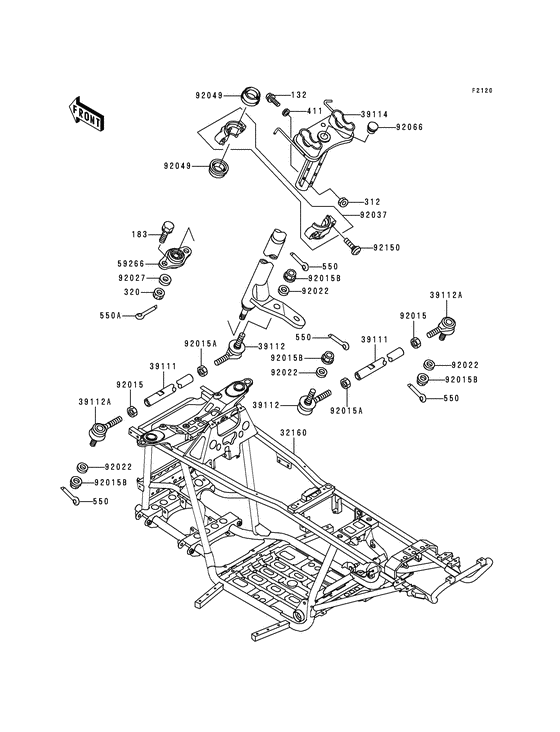

Frame Diagram Kawasaki KVF400 Prairie 400
- Model code
- KVF400-B1
- Engine Capacity
- 391
- Year
- 1998
- Sales region
- USA
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Prairie 400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132J0614
BOLT-FLANGED-SMALL,6X
|
132J0614 |
— | ||
| replacement | |||||
|
132
|
132
132BB0614 BOLT-FLANGED-SMALL,6X |
132BB0614 |
from US $1.43 |
||
|
183
|
183
183G0822 BOLT-UPSET-WS-SMALL |
183G0822 |
US $4.12 |
||
| replacement | |||||
|
183
|
183
183BA0822 BOLT-UPSET-WS-SMALL |
183BA0822 |
from US $1.40 |
||
|
312
|
312
312C0600 NUT-HEX,6MM,BLACKNut-hex,6mm,black; |
312C0600 |
from US $1.27 |
||
| replacement | |||||
|
312
|
312
312AB0600 NUT-HEX,6MM,BLACKNut-hex,6mm,black; |
312AB0600 |
from US $0.94 |
||
|
320
|
320
320H1000 NUT-CASTLE |
320H1000 |
US $6.80 |
||
| replacement | |||||
|
320
|
320
320BA1000 NUT-CASTLE |
320BA1000 |
from US $1.24 |
||
|
411
|
411
411B0600 WASHER-PLAIN,6.5X13X1Washer-plain,6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
411
|
411
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer-plain,6mm; |
411AA0600 |
from US $2.13 |
||
|
550
|
550
550D2015
PIN-COTTER,2.0X15
Pin-cotter,2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15Pin-cotter,2.0x15; |
550AA2015 |
from US $0.63 |
||
|
550A
|
550A
550D2518 PIN,COTTER,2.5X18Pin-cotter,2.5x18; |
550D2518 |
US $0.79 |
||
| replacement | |||||
|
550A
|
550A
550AA2518 PIN,COTTER,2.5X18Pin-cotter,2.5x18; |
550AA2518 |
from US $0.79 |
||
|
32160
|
32160
32160-1501 FRAME-COMPFrame-comp,main; |
32160-1501 |
US $892.04 |
||
|
39111
|
39111
39111-1090 ROD-TIE |
39111-1090 |
from US $21 |
||
|
39112
|
39112
39112-1063 RODEND-TIE |
39112-1063 |
from US $60.81 |
||
|
39112A
|
39112A
39112-1064 RODEND-TIE |
39112-1064 |
from US $60.81 |
||
|
39114
|
39114
39114-1077 SHAFT-COMP-STRG |
39114-1077 |
US $195.80 |
||
|
59266
|
59266
59266-1066 JOINT-BALL |
59266-1066 |
from US $101.40 |
||
|
92015
|
92015
92015-1460 NUT,LOCK,10MMNut,lock,10mm; |
92015-1460 |
from US $3.57 |
||
|
92015A
|
92015A
92015-1494 NUT,LOCK,10MMNut,lock,10mm; |
92015-1494 |
from US $3.48 |
||
|
92015B
|
92015B
92015-1717 NUT,LOCK,FLANGED,10MMNut,lock,flanged,10mm; |
92015-1717 |
from US $6.34 |
||
|
92022
|
92022
92022-239 WASHER,PLAINWasher,10.5x20x1; |
92022-239 |
from US $2.53 |
||
|
92027
|
92027
92027-1817 COLLAR,10X21.3X7Collar,10x21.3x7; |
92027-1817 |
from US $9.07 |
||
|
92037
|
92037
92037-1975 CLAMPClamp,steering shaft; |
92037-1975 |
US $79.53 |
||
|
92049
|
92049
92049-1278 SEAL-OIL,SR7 25 34 7.Seal-oil,sr7 25 34 7.8 ns; |
92049-1278 |
from US $3.89 |
||
|
92066
|
92066
92066-1220 PLUG |
92066-1220 |
from US $3.48 |
||
|
92150
|
92150
92150-1058 BOLT |
92150-1058 |
from US $3.89 |
||
