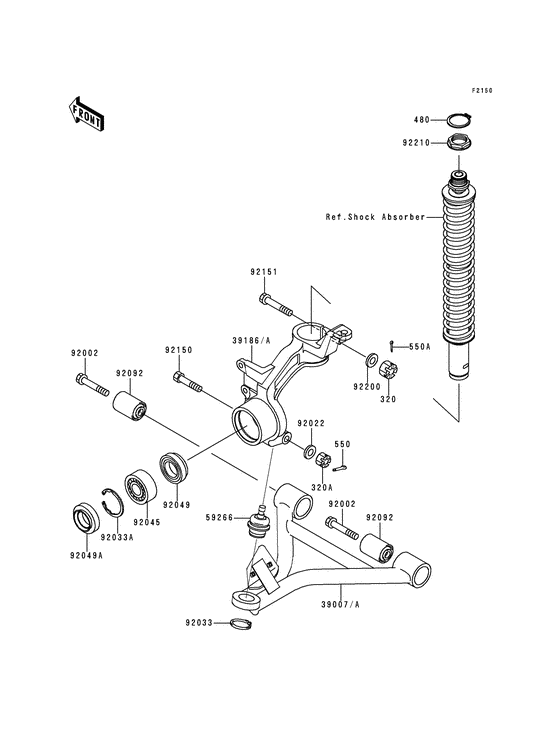

Suspension Diagram Kawasaki KVF400 Prairie 400
- Model code
- KVF400-B1
- Engine Capacity
- 391
- Year
- 1998
- Sales region
- USA
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Prairie 400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
320
|
320
320G1200 Nut-castle |
320G1200 |
US $1.43 |
||
| replacements | |||||
|
320
|
320
92210-7501 NUT,12MM |
92210-7501 |
from US $1.90 |
||
|
320
|
320
320BA1200 NUT,12MM |
320BA1200 |
from US $1.43 |
||
|
320A
|
320A
320H1000 NUT-CASTLE |
320H1000 |
US $6.80 |
||
| replacement | |||||
|
320A
|
320A
320BA1000 NUT-CASTLE |
320BA1000 |
from US $1.24 |
||
|
480
|
480
480J3200 CIRCRIP-TYPE-CCirclip-type-c,32mm; |
480J3200 |
from US $1.43 |
||
|
550
|
550
550D2015
PIN-COTTER,2.0X15
Pin-cotter,2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15Pin-cotter,2.0x15; |
550AA2015 |
from US $0.63 |
||
|
550A
|
550A
550D3025 PIN-COTTER,3.0X25Pin-cotter,3.0x25; |
550D3025 |
from US $0.27 |
||
| replacement | |||||
|
550A
|
550A
550AA3025 PIN-COTTER,3.0X25Pin-cotter,3.0x25; |
550AA3025 |
from US $0.95 |
||
|
39007
|
39007
39007-1259 ARM-SUSP,FR,LH,LWRArm-susp,fr,lh,lwr; |
39007-1259 |
from US $84.62 |
||
|
39007A
|
39007A
39007-1260 ARM-SUSP,FR,RH,LWRArm-susp,fr,rh,lwr; |
39007-1260 |
from US $96.13 |
||
|
39186
|
39186
39186-1100 KNUCKLE,LHKnuckle,fr,lh; |
39186-1100 |
US $248.18 |
||
| replacement | |||||
|
39186
|
39186
39186-0008 KNUCKLE,LHKnuckle,fr,lh; |
39186-0008 |
from US $248.18 |
||
|
39186A
|
39186A
39186-1101 KNUCKLE,RHKnuckle,fr,rh; |
39186-1101 |
US $248.18 |
||
| replacement | |||||
|
39186A
|
39186A
39186-0009
KNUCKLE,RH
Knuckle,fr,rh; |
39186-0009 |
— | ||
|
59266
|
59266
59266-1098 JOINT-BALL |
59266-1098 |
from US $66.41 |
||
|
92002
|
92002
92002-1861 BOLT,FLANGED,12X67Bolt,flanged,12x67; |
92002-1861 |
from US $7.44 |
||
|
92022
|
92022
92022-1829 WASHER,10.2X16X1Washer,10.2x16x1; |
92022-1829 |
from US $2.69 |
||
|
92033
|
92033
92033-1218 RING-SNAP,30MMRing-snap,30mm; |
92033-1218 |
from US $4.05 |
||
|
92033A
|
92033A
92033-1274 RING-SNAPRing-snap,55mm; |
92033-1274 |
from US $5.60 |
||
|
92045
|
92045
92045-1222 BEARING-BALL,DAC3055CBearing-ball,dac3055c2rkcd3; |
92045-1222 |
from US $75.11 |
||
|
92049
|
92049
92049-1476 SEAL-OIL,MT038N1Seal-oil,mt038n1; |
92049-1476 |
from US $7.78 |
||
|
92049A
|
92049A
92049-1477 SEAL-OIL,SDD04 38 55Seal-oil,sdd04 38 55 8; |
92049-1477 |
from US $9.01 |
||
|
92092
|
92092
92092-1065 BUSHING-RUBBER |
92092-1065 |
from US $8.55 |
||
|
92150
|
92150
92150-1226 BOLTBolt,10x44; |
92150-1226 |
from US $6.54 |
||
|
92151
|
92151
92151-1101 BOLT,FLANGED,12X65.5Bolt,flanged,12x65.5; |
92151-1101 |
US $10.89 |
||
|
92200
|
92200
92200-1004 WASHER,12.3X23X2.3Washer,12.3x23x2.3; |
92200-1004 |
from US $2.85 |
||
|
92210
|
92210
92210-1066 NUT,35MMNut,35mm; |
92210-1066 |
from US $11.66 |
||
