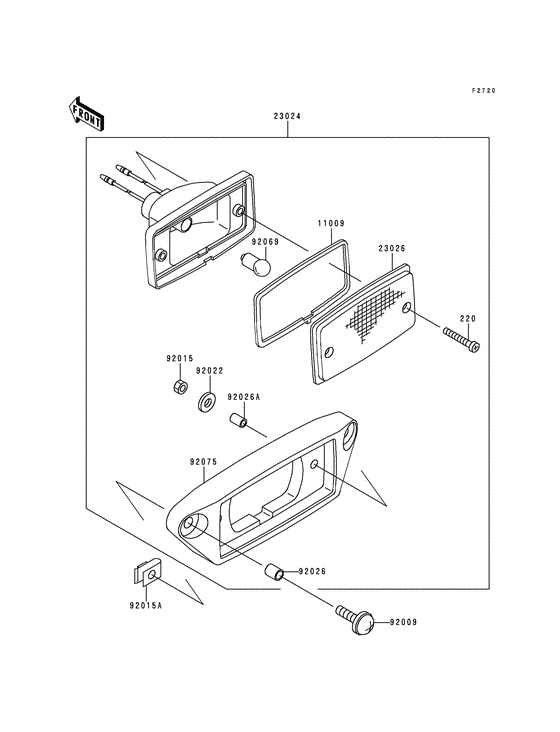

Taillight Diagram Kawasaki KVF400 Prairie 400
- Model code
- KVF400-B1
- Engine Capacity
- 391
- Year
- 1998
- Sales region
- USA
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Prairie 400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220B0430 SCREW-PAN-CROS - N.L.A. |
220B0430 |
from US $0.79 |
||
| replacement | |||||
|
220
|
220
220AA0430 SCREW-PAN-CROS |
220AA0430 |
from US $0.94 |
||
|
11009
|
11009
11009-4004 GASKETGasket,tail lamp; |
11009-4004 |
from US $4.67 |
||
|
23024
|
23024
23024-1123 LAMP-ASSY-TAIL |
23024-1123 |
from US $76.67 |
||
|
23026
|
23026
23026-4003 LENS,TAIL LAMPLens,tail lamp; |
23026-4003 |
from US $13.84 |
||
|
92009
|
92009
92009-1256 SCREW,6X22,BLACKScrew,6x22,black; |
92009-1256 |
from US $1.74 |
||
|
92015
|
92015
92015-1550 NUT,4MMNut,4mm; |
92015-1550 |
from US $2.33 |
||
|
92015A
|
92015A
92015-1904 NUT,CLIP,6MMNut,clip,6mm; |
92015-1904 |
from US $3.80 |
||
|
92022
|
92022
92022-1762 WASHER,PLAIN,4MMWasher,plain,4mm; |
92022-1762 |
from US $2.33 |
||
|
92026
|
92026
92026-1260 SPACER,6.3X8.3X10Spacer,6.3x8.3x10; |
92026-1260 |
from US $2.65 |
||
|
92026A
|
92026A
92026-1261 SPACER,4.5X6.5X10Spacer,4.5x6.5x10; |
92026-1261 |
from US $3.11 |
||
|
92069
|
92069
92069-1012 BULB,12V 4CPBulb,12v 8w; |
92069-1012 |
US $3.33 |
||
|
92075
|
92075
92075-1782 DAMPER,TAIL LAMPDamper,tail lamp; |
92075-1782 |
from US $26.12 |
||
