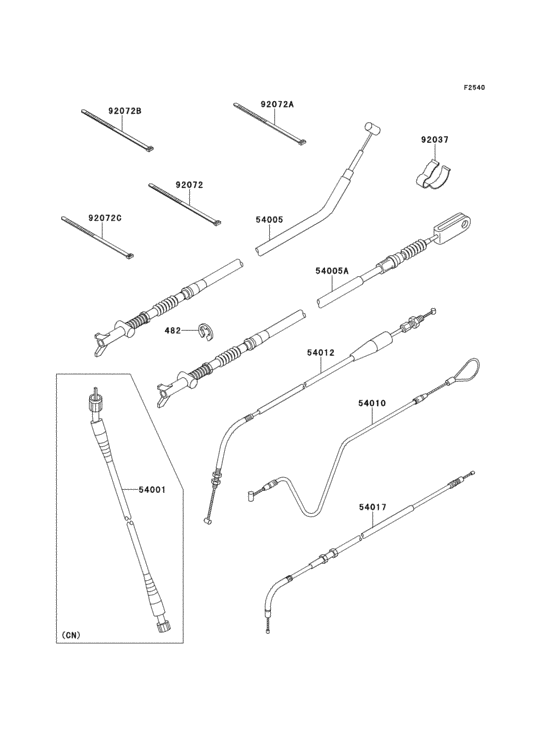

Cables Diagram Kawasaki KVF400 Prairie 400
- Model code
- KVF400-B1
- Engine Capacity
- 391
- Year
- 1998
- Sales region
- Canada
- Frame
- JKAVFKB1 WB500001 - 999999
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Prairie 400
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
482
|
482
482K8000 CIRCRIP-TYPE-E |
482K8000 |
US $3.48 |
||
|
54001
|
54001
54001-1218
CABLE-SPEEDMETER
|
54001-1218 |
— | ||
|
54005
|
54005
54005-1206 CABLE-BRAKE |
54005-1206 |
from US $47.36 |
||
|
54005A
|
54005A
54005-1186
CABLE-BRAKE
|
54005-1186 |
— | ||
|
54010
|
54010
54010-1105 CABLE,SEAT HOOK |
54010-1105 |
from US $42.77 |
||
|
54012
|
54012
54012-1620
CABLE-THROTTLE
|
54012-1620 |
— | ||
|
54017
|
54017
54017-1105 CABLE-STARTER |
54017-1105 |
from US $11.51 |
||
|
92037
|
92037
92037-1092 CLAMP,AIR VENT HOSE |
92037-1092 |
from US $5.44 |
||
|
92072
|
92072
92072-030 BAND,SHORT |
92072-030 |
from US $3.01 |
||
|
92072A
|
92072A
92072-031 BAND,MIDDLE |
92072-031 |
from US $3.01 |
||
|
92072B
|
92072B
92072-056 BAND,WIRING HARNESS |
92072-056 |
from US $3.01 |
||
|
92072C
|
92072C
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.90 |
