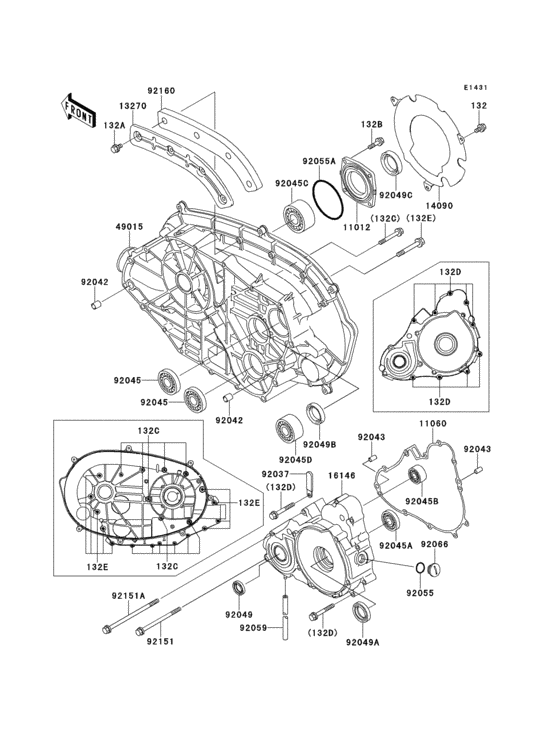

Engine cover(s) Diagram Kawasaki KVF400 Prairie 400
- Model code
- KVF400-B1
- Engine Capacity
- 391
- Year
- 1998
- Sales region
- Canada
- Frame
- JKAVFKB1 WB500001 - 999999
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Prairie 400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BA0612 BOLT-FLANGED-SMALL,6X |
132BA0612 |
from US $0.79 |
||
|
132A
|
132A
132BD0612 BOLT-FLANGED-SMALL,6X |
132BD0612 |
from US $0.95 |
||
|
132B
|
132B
132BD0620 BOLT-FLANGED-SMALL |
132BD0620 |
from US $1.11 |
||
|
132C
|
132C
132BD0635 BOLT-FLANGED-SMALL |
132BD0635 |
from US $1.27 |
||
|
132D
|
132D
92150-1830 BOLT |
92150-1830 |
from US $3.27 |
||
| replacement | |||||
|
132D
|
132D
132BD0640 BOLT |
132BD0640 |
from US $1.27 |
||
|
132E
|
132E
132Y0840 BOLT-FLANGED-SMALL |
132Y0840 |
from US $1.74 |
||
| replacement | |||||
|
132E
|
132E
132BD0840 BOLT-FLANGED-SMALL |
132BD0840 |
from US $1.27 |
||
|
11012
|
11012
11012-1982 CAP |
11012-1982 |
US $26.71 |
||
|
11060
|
11060
11060-1729 GASKET,GENERATOR COVER |
11060-1729 |
from US $10.18 |
||
|
13270
|
13270
13270-1737 PLATE |
13270-1737 |
US $15.48 |
||
|
14090
|
14090
14090-1761 COVER |
14090-1761 |
US $31.66 |
||
|
16146
|
16146
16146-1173 COVER-ASSY,GENERATOR |
16146-1173 |
US $138.98 |
||
| replacement | |||||
|
16146
|
16146
16146-1206 COVER-ASSY,GENERATOR |
16146-1206 |
US $138.98 |
||
|
49015
|
49015
49015-1054 COVER-CRANKCASE |
49015-1054 |
US $133.07 |
||
|
92037
|
92037
92037-1539 CLAMP,WIRING HARNESS |
92037-1539 |
from US $3.17 |
||
|
92042
|
92042
92042-031 PIN,DOWEL,12MM |
92042-031 |
from US $3.96 |
||
| replacement | |||||
|
92042
|
92042
92043-0963 Pin,12X14 |
92043-0963 |
from US $3.96 |
||
|
92043
|
92043
92043-1263 PIN,6.2X8X14 |
92043-1263 |
from US $0.75 |
||
|
92045
|
92045
92045-1142 BEARING-BALL,TMB304CC |
92045-1142 |
from US $32.04 |
||
|
92045A
|
92045A
92045-1178
BEARING-BALL
|
92045-1178 |
— | ||
|
92045B
|
92045B
92045-1327
BEARING-BALL,5201
|
92045-1327 |
— | ||
|
92045C
|
92045C
92045-1328 BEARING-BALL,5207C2 |
92045-1328 |
from US $66.72 |
||
|
92045D
|
92045D
92045-1329 BEARING-BALL,5206 |
92045-1329 |
from US $56.45 |
||
|
92049
|
92049
92049-1259 SEAL-OIL,12X28.55X5 |
92049-1259 |
from US $5.86 |
||
|
92049A
|
92049A
92049-1386 SEAL-OIL |
92049-1386 |
from US $7.29 |
||
|
92049B
|
92049B
92049-1451 SEAL-OIL,TC30458 |
92049-1451 |
from US $7.93 |
||
|
92049C
|
92049C
92049-1452 SEAL-OIL,TC35508 |
92049-1452 |
from US $8.55 |
||
|
92055
|
92055
92055-1146 RING-O |
92055-1146 |
from US $6.57 |
||
|
92055A
|
92055A
92055-1230 RING-O,79.5MM |
92055-1230 |
from US $4.59 |
||
|
92059
|
92059
92059-080 PIPE-FUEL |
92059-080 |
from US $3.89 |
||
|
92066
|
92066
92066-1163 PLUG,COVER,LH |
92066-1163 |
from US $9.35 |
||
|
92151
|
92151
92151-1140 BOLT,6X85 |
92151-1140 |
US $2.59 |
||
|
92151A
|
92151A
92151-1141 BOLT,6X110 |
92151-1141 |
US $4.55 |
||
|
92160
|
92160
92160-1793 DAMPER |
92160-1793 |
US $15.48 |
||
