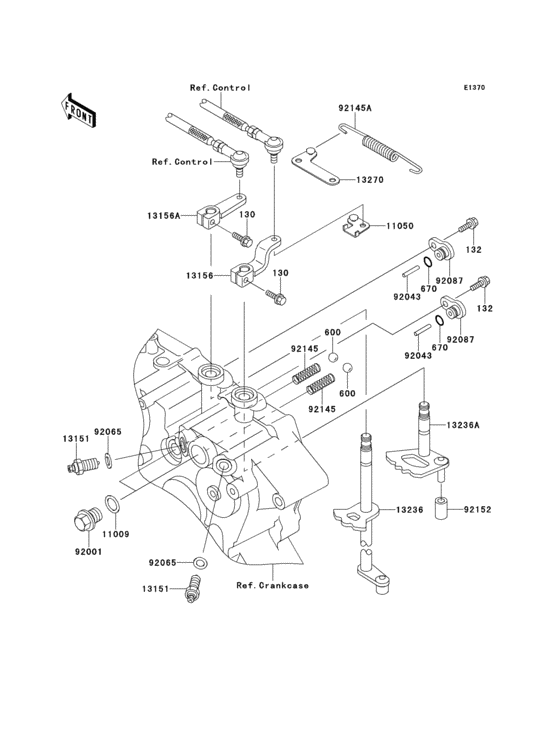

Gear change mechanism Diagram Kawasaki KVF400 Prairie 400
- Model code
- KVF400-B1
- Engine Capacity
- 391
- Year
- 1998
- Sales region
- Canada
- Frame
- JKAVFKB1 WB500001 - 999999
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Prairie 400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130CA0620 BOLT-FLANGED,6X20 |
130CA0620 |
from US $1.11 |
||
|
132
|
132
132BB0614 BOLT-FLANGED-SMALL,6X |
132BB0614 |
from US $1.43 |
||
|
600
|
600
600A1300 BALL, STEEL, 13/32IN |
600A1300 |
from US $0.95 |
||
|
670
|
670
670D1510 0 RING,10MM |
670D1510 |
from US $2.85 |
||
|
11009
|
11009
11009-1008 GASKET,15.5X22X1 |
11009-1008 |
from US $3.01 |
||
|
11050
|
11050
11050-1386 BRACKET |
11050-1386 |
US $8.68 |
||
|
13151
|
13151
13151-1069 Switch-Comp,Neutral |
13151-1069 |
from US $19.58 |
||
|
13156
|
13156
13156-1394 LEVER-CHANGE,FORWARD/ |
13156-1394 |
US $12.67 |
||
|
13156A
|
13156A
13156-1395 LEVER-CHANGE,HI/LOW |
13156-1395 |
US $10.42 |
||
|
13236
|
13236
13236-1292 LEVER-COMP,HI/LOW |
13236-1292 |
US $69.46 |
||
|
13236A
|
13236A
13236-1313
LEVER-COMP,FORWARD/RE
|
13236-1313 |
— | ||
|
13270
|
13270
13270-1850 PLATE |
13270-1850 |
US $6.88 |
||
|
92001
|
92001
92001-1037 BOLT,NEUTRAL POSITION |
92001-1037 |
from US $9.19 |
||
|
92043
|
92043
92043-1415 PIN |
92043-1415 |
from US $2.17 |
||
|
92065
|
92065
92065-058 GASKET |
92065-058 |
from US $3.37 |
||
|
92087
|
92087
92087-1058 BUSHING-METER GEAR |
92087-1058 |
from US $4.82 |
||
|
92145
|
92145
92145-1075 SPRING |
92145-1075 |
US $4.46 |
||
|
92145A
|
92145A
92145-1079 SPRING |
92145-1079 |
US $10.73 |
||
|
92152
|
92152
92152-1073
COLLAR
|
92152-1073 |
— |
