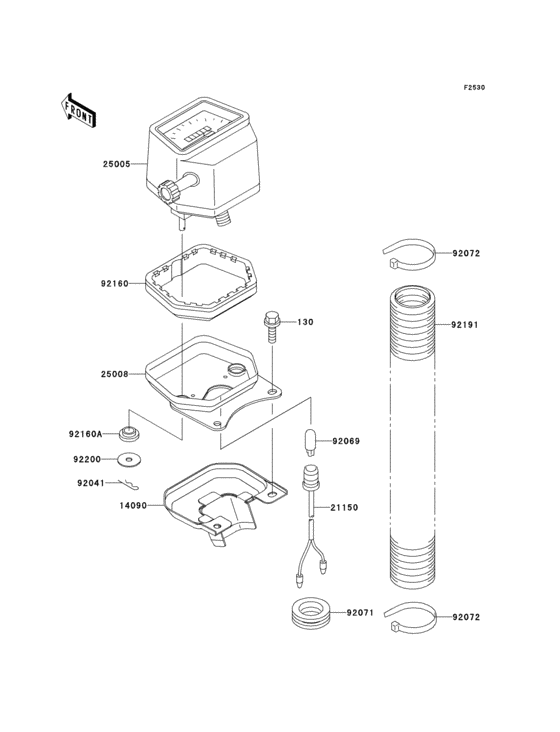

Meter(s) Diagram Kawasaki KVF400 Prairie 400
- Model code
- KVF400-B1
- Engine Capacity
- 391
- Year
- 1998
- Sales region
- Canada
- Frame
- JKAVFKB1 WB500001 - 999999
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Prairie 400
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0612 BOLT-FLANGED,6X12 |
130BB0612 |
from US $1.43 |
||
|
14090
|
14090
14090-1797 COVER |
14090-1797 |
US $15.03 |
||
|
21150
|
21150
21150-1058 CORD-ASSY,SPEEDOMETER |
21150-1058 |
US $24.44 |
||
|
25005
|
25005
25005-1625
Speedometer,kph
|
25005-1625 |
— | ||
|
25008
|
25008
25008-1217 BRACKET-METER |
25008-1217 |
US $23.08 |
||
|
92041
|
92041
92041-006 PIN,COTER |
92041-006 |
from US $1.48 |
||
|
92069
|
92069
92069-1007 BULB,12V3.4W |
92069-1007 |
from US $3.33 |
||
|
92071
|
92071
92071-1042 GROMMET,AIR FILTER |
92071-1042 |
from US $4.12 |
||
|
92072
|
92072
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.90 |
||
|
92160
|
92160
92160-1783 DAMPER,SPEEDOMETER |
92160-1783 |
US $14.76 |
||
|
92160A
|
92160A
92160-1784 DAMPER |
92160-1784 |
US $3.76 |
||
|
92191
|
92191
92191-1135 TUBE |
92191-1135 |
US $3.53 |
||
|
92200
|
92200
92200-1332 WASHER,5.2X20X1 |
92200-1332 |
US $2.43 |
