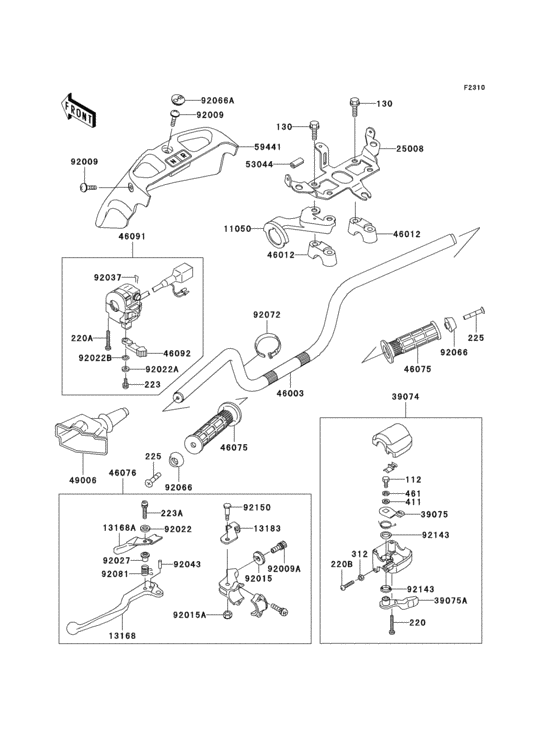

Handlebar(1/2)(c1) Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C1
- Engine Capacity
- 391
- Year
- 1999
- Sales region
- Canada
- Colour
- Colored Plastic Hunter Green (6A)
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112D0614 BOLT-UPSET |
112D0614 |
US $2.59 |
||
| replacement | |||||
|
112
|
112
112AA0614 BOLT-UPSET |
112AA0614 |
from US $0.82 |
||
|
130
|
130
130P0860 BOLT-FLANGED,8X60 |
130P0860 |
US $1.44 |
||
| replacement | |||||
|
130
|
130
130CA0860 BOLT-FLANGED,8X60 |
130CA0860 |
from US $1.43 |
||
|
220
|
220
220C0530
SCREW-PAN-CROSS
|
220C0530 |
— | ||
| replacement | |||||
|
220
|
220
220AB0530 SCREW-PAN-CROSS |
220AB0530 |
from US $0.95 |
||
|
220A
|
220A
220C0535 SCREW-PAN-CROSS,5X35 |
220C0535 |
from US $1.27 |
||
| replacement | |||||
|
220A
|
220A
220AB0535 SCREW-PAN-CROSS,5X35 |
220AB0535 |
from US $0.95 |
||
|
220B
|
220B
220C0630
SCREW-PAN-CROSS
|
220C0630 |
— | ||
| replacement | |||||
|
220B
|
220B
220AB0630 SCREW-PAN-CROSS |
220AB0630 |
from US $1.11 |
||
|
223
|
223
223C0512 SCREW-PAN-WS-CROS |
223C0512 |
US $5.36 |
||
| replacement | |||||
|
223
|
223
223AB0512 SCREW-PAN-WS-CROS |
223AB0512 |
from US $5.61 |
||
|
223A
|
223A
223D0420
SCREW-PAN-WS-CROS
|
223D0420 |
— | ||
| replacement | |||||
|
223A
|
223A
223AA0420 SCREW-PAN-WS-CROS |
223AA0420 |
from US $0.94 |
||
|
225
|
225
225C0620
SCREW-PAN-WSP-CROS,6X
|
225C0620 |
— | ||
| replacement | |||||
|
225
|
225
225AB0620 SCREW-PAN-WSP-CROS,6X |
225AB0620 |
from US $1.09 |
||
|
312
|
312
312C0600 NUT-HEX,6MM,BLACK |
312C0600 |
from US $1.27 |
||
| replacement | |||||
|
312
|
312
312AB0600 NUT-HEX,6MM,BLACK |
312AB0600 |
from US $0.94 |
||
|
411
|
411
411E0600
W-plain-s
|
411E0600 |
— | ||
| replacements | |||||
|
411
|
411
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.79 |
||
|
411
|
411
411AA0600 WASHER-PLAIN,(6.5x13x1) |
411AA0600 |
from US $2.13 |
||
|
411
|
411
92022-1777 Superceded |
92022-1777 |
US $10.19 |
||
|
411
|
411
410B0600
WASHER-PLAIN-SMALL
|
410B0600 |
— | ||
|
461
|
461
461L0600 WASHER-SPRING,6MM |
461L0600 |
US $4.30 |
||
| replacement | |||||
|
461
|
461
461DA0600 WASHER-SPRING,6MM |
461DA0600 |
from US $0.55 |
||
|
11050
|
11050
11050-1727 BRACKET,HANDLE COVER, |
11050-1727 |
from US $10.43 |
||
|
13168
|
13168
13168-1449 LEVER |
13168-1449 |
from US $25.04 |
||
|
13168A
|
13168A
13168-1673 PLATE,LEVER LOCK |
13168-1673 |
US $19.04 |
||
| replacements | |||||
|
13168A
|
13168A
13271-0011 PLATE,LEVER LOCK |
13271-0011 |
from US $8.87 |
||
|
13168A
|
13168A
13272-3827 Plate,Lever Lock |
13272-3827 |
US $15.62 |
||
|
13183
|
13183
13183-1609 PLATE,LOCK |
13183-1609 |
US $11.57 |
||
|
25008
|
25008
25008-1222 BRACKET-METER |
25008-1222 |
US $33.14 |
||
|
39074
|
39074
39074-1055 LEVER-ASSY-THROTTLE |
39074-1055 |
from US $48.99 |
||
| replacement | |||||
|
39074
|
39074
39074-0012 Lever-Assy-Throttle |
39074-0012 |
US $89.18 |
||
|
39075
|
39075
39075-1054 LEVER-THROTTLE,ARM |
39075-1054 |
from US $6.84 |
||
|
39075A
|
39075A
39075-1059 LEVER-THROTTLE |
39075-1059 |
from US $18.82 |
||
|
46003
|
46003
46003-1452 HANDLE |
46003-1452 |
from US $75.31 |
||
|
46012
|
46012
46012-1168 HOLDER-HANDLE |
46012-1168 |
from US $10.66 |
||
|
46075
|
46075
46075-1056 GRIP |
46075-1056 |
from US $22.75 |
||
|
46076
|
46076
46076-1178 LEVER-ASSY-GRIP,LH |
46076-1178 |
US $49.59 |
||
| replacements | |||||
|
46076
|
46076
46076-1224 LEVER-ASSY-GRIP,LH |
46076-1224 |
from US $49.59 |
||
|
46076
|
46076
46076-0178 Lever-Assy-Grip,Lh |
46076-0178 |
US $58.68 |
||
|
46091
|
46091
46091-1726 Housing-assy-control, |
46091-1726 |
US $160.58 |
||
| replacement | |||||
|
46091
|
46091
46091-1848 HOUSING-ASSY-CONTROL, |
46091-1848 |
from US $158.63 |
||
|
46092
|
46092
46092-1205 LEVER-GRIP,CHOKE |
46092-1205 |
US $4.03 |
||
| replacement | |||||
|
46092
|
46092
46092-1217 LEVER-GRIP,CHOKE |
46092-1217 |
from US $5.28 |
||
|
49006
|
49006
49006-1057 BOOT,CLUTCH LEVER |
49006-1057 |
from US $13.38 |
||
|
53044
|
53044
53044-1292 TRIM |
53044-1292 |
from US $2.38 |
||
|
59441
|
59441
59441-1139-6Z COVER-HANDLE,F.BLACK |
59441-1139-6Z |
US $35.12 |
||
|
92009
|
92009
92009-1332 SCREW,TAPPING,5X10 |
92009-1332 |
from US $2.53 |
||
|
92009A
|
92009A
92009-1435 SCREW CABLE ADJUST |
92009-1435 |
US $14.17 |
||
| replacement | |||||
|
92009A
|
92009A
46055003 SCREW CABLE ADJUST |
46055003 |
from US $11.09 |
||
|
92015
|
92015
92015-1596 NUT-LOCK |
92015-1596 |
from US $6.02 |
||
| replacement | |||||
|
92015
|
92015
46056005 NUT-LOCK |
46056005 |
from US $6.02 |
||
|
92015A
|
92015A
92015-1829 NUT |
92015-1829 |
US $3.51 |
||
| replacement | |||||
|
92015A
|
92015A
92019-008 NUT |
92019-008 |
from US $2.53 |
||
|
92022
|
92022
92022-1647 WASHER,4MM |
92022-1647 |
US $2.59 |
||
|
92022A
|
92022A
92022-1837 WASHER,5MM |
92022-1837 |
from US $4.13 |
||
|
92022B
|
92022B
92022-1838 WASHER,WAVE,5MM |
92022-1838 |
from US $4.13 |
||
|
92027
|
92027
92027-1336
COLLAR,RETURN SPRING
|
92027-1336 |
— | ||
|
92037
|
92037
92037-1836 CLAMP,CLIP |
92037-1836 |
from US $3.11 |
||
|
92043
|
92043
92043-1268 PIN,SPRING,3X16 |
92043-1268 |
from US $6.06 |
||
|
92066
|
92066
92066-1191
PLUG,HANDLE
|
92066-1191 |
— | ||
|
92066A
|
92066A
92066-1498-6Z PLUG,F.BLACK |
92066-1498-6Z |
US $3.40 |
||
|
92072
|
92072
92072-031 BAND,MIDDLE |
92072-031 |
from US $3.01 |
||
|
92081
|
92081
92081-1358 SPRING,CLUTCH LOCK RE |
92081-1358 |
from US $2.95 |
||
|
92143
|
92143
92143-1138 COLLAR |
92143-1138 |
from US $1.71 |
||
|
92150
|
92150
92150-1420 BOLT |
92150-1420 |
US $14.92 |
||
| replacement | |||||
|
92150
|
92150
92153-1919 BOLT |
92153-1919 |
from US $8.55 |
||
