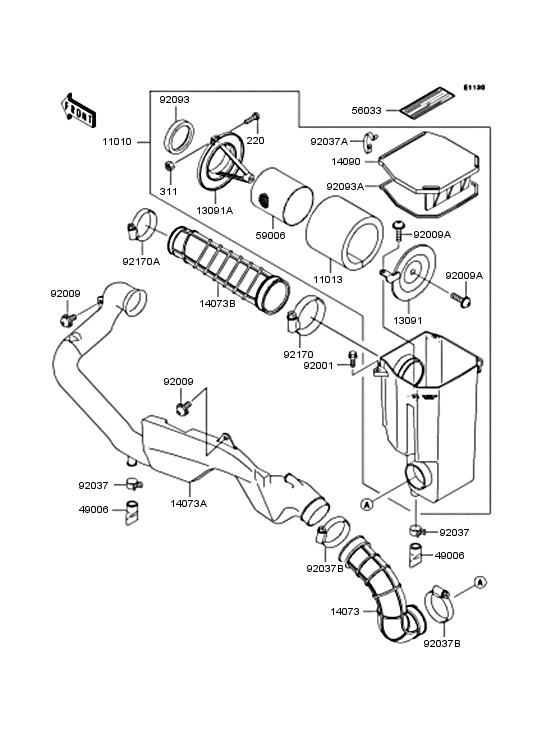

Air cleaner Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C3
- Engine Capacity
- 391
- Year
- 2001
- Sales region
- Japan
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- VF400AE 500001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220B0516 SCREW-PAN-CROSナベコネジ(+ジアナ) |
220B0516 |
from US $1.11 |
||
| replacement | |||||
|
220
|
220
220AA0516 SCREW-PAN-CROSナベコネジ(+ジアナ) |
220AA0516 |
from US $0.79 |
||
|
311
|
311
311B0500
NUT-HEX,5MM
ロツカク ナツト |
311B0500 |
— | ||
| replacement | |||||
|
311
|
311
311AA0500 NUT-HEX,5MMロツカク ナツト |
311AA0500 |
from US $0.78 |
||
|
11010
|
11010
11010-1681 FILTER-ASSY-AIRフイルタアツシ(エア) |
11010-1681 |
from US $225.50 |
||
|
11013
|
11013
11013-1255 Element-air filterエレメント(エアフイルタ) |
11013-1255 |
from US $14.93 |
||
|
13091
|
13091
13091-1488 HOLDER,ELEMENTホルダ，エレメント |
13091-1488 |
from US $13.06 |
||
|
13091A
|
13091A
13091-1565 HOLDER,AIR FILTER ELEホルダ，エア フイルタ エレメント |
13091-1565 |
from US $11.51 |
||
|
14073
|
14073
14073-1653 DUCTダクト |
14073-1653 |
from US $55.35 |
||
|
14073A
|
14073A
14073-1654 DUCTダクト |
14073-1654 |
US $55.71 |
||
|
14073B
|
14073B
14073-1682 DUCTダクト |
14073-1682 |
US $34.56 |
||
|
14090
|
14090
14090-1663 COVER,AIR FILTERカバ-，エア フイルタ |
14090-1663 |
from US $24.42 |
||
|
49006
|
49006
49006-1292 BOOTブ-ツ |
49006-1292 |
from US $5.13 |
||
|
56033
|
56033
56033-1079 LABEL-MANUAL,MAINTENAラベル(マニユアル)，メンテナンス |
56033-1079 |
from US $2.33 |
||
|
59006
|
59006
59006-1052 ARRESTER-FLAMEアレスタ(フレ-ム) |
59006-1052 |
from US $24.42 |
||
|
92001
|
92001
92001-1460 BOLT,6X20ボルト，6X20 |
92001-1460 |
from US $2.53 |
||
|
92009
|
92009
92009-1276 SCREW,6X16スクリユ-，6X16 |
92009-1276 |
from US $3.33 |
||
|
92009A
|
92009A
92009-1890 SCREW,6X16スクリユ-，6X16 |
92009-1890 |
from US $1.24 |
||
|
92037
|
92037
92037-1460 CLAMPクランプ |
92037-1460 |
from US $6.68 |
||
| replacement | |||||
|
92037
|
92037
92171-1571 CLAMPクランプ |
92171-1571 |
from US $5.28 |
||
|
92037A
|
92037A
92037-1783 CLAMP,AIR FILTERクランプ，エア フイルタ |
92037-1783 |
from US $4.82 |
||
|
92037B
|
92037B
92037-3738 CLAMPクランプ |
92037-3738 |
from US $8.76 |
||
|
92093
|
92093
92093-1322 SEAL,DUSTシ-ル，ダスト |
92093-1322 |
from US $5.90 |
||
|
92093A
|
92093A
92093-1404 SEAL,FILTER CASEシ-ル，フイルタ ケ-ス |
92093-1404 |
from US $3.89 |
||
|
92170
|
92170
92170-1679 CLAMPクランプ |
92170-1679 |
from US $8.45 |
||
| replacement | |||||
|
92170
|
92170
92170-1307 CLAMPクランプ |
92170-1307 |
from US $11.98 |
||
|
92170A
|
92170A
92170-1764 CLAMPクランプ |
92170-1764 |
from US $12.05 |
||
