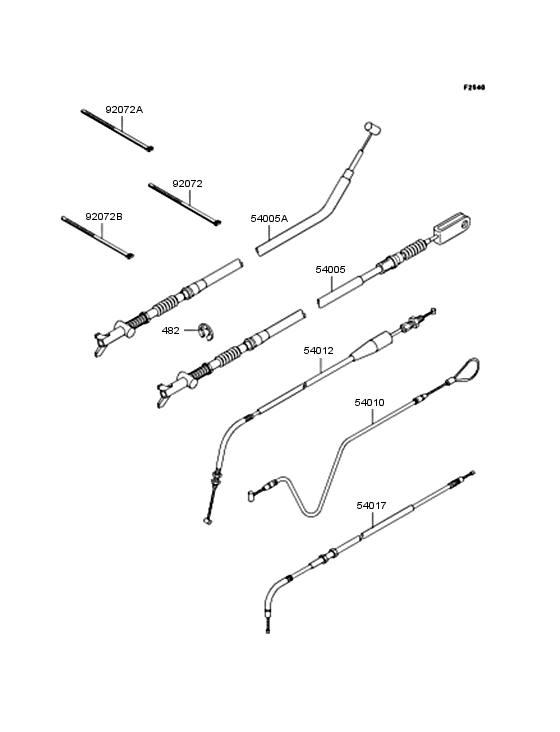

Cables Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C3
- Engine Capacity
- 391
- Year
- 2001
- Sales region
- Japan
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- VF400AE 500001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
482
|
482
482K8000 CIRCRIP-TYPE-Eトメワ(Eガタ)，8MM |
482K8000 |
US $3.48 |
||
|
54005
|
54005
54005-1186
CABLE-BRAKE
ケ-ブル(ブレ-キ) |
54005-1186 |
— | ||
|
54005A
|
54005A
54005-1206 CABLE-BRAKEケ-ブル(ブレ-キ) |
54005-1206 |
from US $47.36 |
||
|
54010
|
54010
54010-1105 CABLE,SEAT HOOKケ-ブル，シ-ト フツク |
54010-1105 |
from US $42.77 |
||
|
54012
|
54012
54012-1620
CABLE-THROTTLE
ケ-ブル(スロツトル) |
54012-1620 |
— | ||
|
54017
|
54017
54017-1105 CABLE-STARTERケ-ブル(スタ-タ) |
54017-1105 |
from US $11.51 |
||
|
92072
|
92072
92072-030 BAND,SHORTバンド，L=123 |
92072-030 |
from US $3.01 |
||
|
92072A
|
92072A
92072-056 BAND,WIRING HARNESSバンド，L=186 |
92072-056 |
from US $3.01 |
||
|
92072B
|
92072B
92072-1239 BAND,L=188バンド，L=188 |
92072-1239 |
from US $1.90 |
