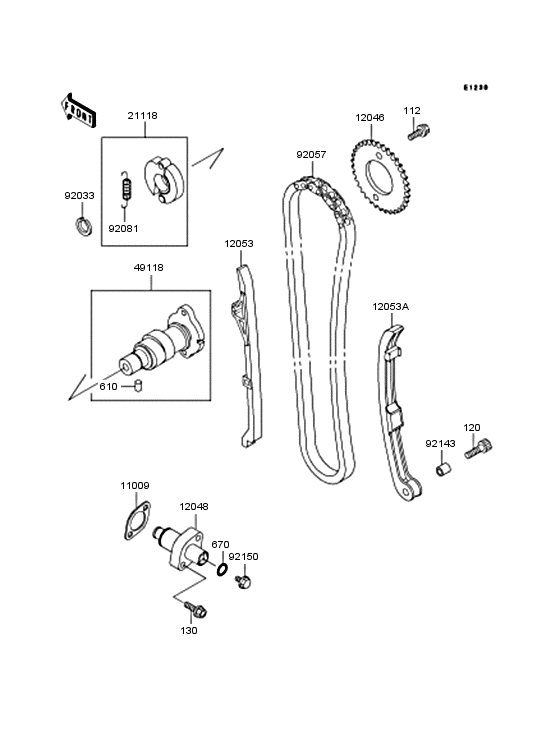

Camshaft/tensioner Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C3
- Engine Capacity
- 391
- Year
- 2001
- Sales region
- Japan
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- VF400AE 500001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112G0610
BOLT,6X10
ボルト(アプセツト)，6X10 |
112G0610 |
— | ||
| replacement | |||||
|
112
|
112
112BA0610 BOLT-UPSETボルト(アプセツト)，6X10 |
112BA0610 |
from US $0.92 |
||
|
120
|
120
120P0625
BOLT-SOCKET,6X25
ボルト(ロツカクアナ)，6X25 |
120P0625 |
— | ||
| replacement | |||||
|
120
|
120
120CA0625 BOLT-SOCKET,6X25ボルト(ロツカクアナ)，6X25 |
120CA0625 |
from US $0.95 |
||
|
130
|
130
130J0625
BOLT-FLANGED,6X25
ボルト(ツバツキ)，6X25 |
130J0625 |
— | ||
| replacement | |||||
|
130
|
130
130BB0625 BOLT-FLANGED,6X25ボルト(ツバツキ)，6X25 |
130BB0625 |
from US $1.61 |
||
|
610
|
610
610A0406 PIN-DOWEL,4X6エントウ コロ，4X6 |
610A0406 |
from US $0.79 |
||
|
670
|
670
670D2010 O RINGO リング(ウンドウヨウ) |
670D2010 |
from US $2.52 |
||
|
11009
|
11009
11009-1858 GASKET,TENSIONERガスケツト，テンシヨナ |
11009-1858 |
from US $4.09 |
||
|
12046
|
12046
12046-1131 SPROCKET,CAM,38Tスプロケツト，カム，38T |
12046-1131 |
from US $48.99 |
||
|
12048
|
12048
12048-1172 TENSIONER-ASSYテンシヨナアツシ |
12048-1172 |
from US $104.52 |
||
|
12053
|
12053
12053-1423 GUIDE-CHAIN,FRガイド(チエ-ン)，FR |
12053-1423 |
from US $33.90 |
||
|
12053A
|
12053A
12053-1424 GUIDE-CHAIN,RRガイド(チエ-ン)，RR |
12053-1424 |
US $49.90 |
||
|
21118
|
21118
21118-1082
DECOMPRESSOR
デコンプレツサ |
21118-1082 |
— | ||
|
49118
|
49118
49118-1201
CAMSHAFT-COMP
カムシヤフトコンプ |
49118-1201 |
— | ||
|
92033
|
92033
92033-1214 RING-SNAP,18.7MMリング(スナツプ)，18.7MM |
92033-1214 |
from US $3.17 |
||
|
92057
|
92057
92057-1256 CHAIN,CAMSHAFT,82RH20チエ-ン，カム，82RH2010-118L |
92057-1256 |
from US $94.25 |
||
|
92081
|
92081
92081-1674 SPRING,DECOMPRESSORスプリング，デコンプレツサ |
92081-1674 |
from US $3.57 |
||
|
92143
|
92143
92143-1253 COLLAR,6X8X10.2カラ-，6X8X10.2 |
92143-1253 |
from US $3.27 |
||
|
92150
|
92150
92150-1381 BOLT,TENSIONERボルト，テンシヨナ |
92150-1381 |
from US $4.59 |
||
