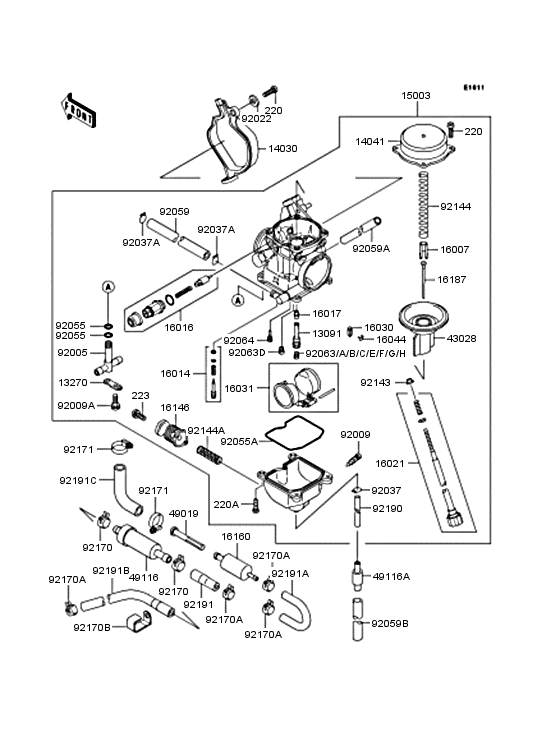

Carburetor Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C3
- Engine Capacity
- 391
- Year
- 2001
- Sales region
- Japan
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- VF400AE 500001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13091
|
13091
13091-1259 HOLDER,NEEDLE JETホルダ，ニ-ドル ジエツト |
13091-1259 |
from US $22.14 |
||
|
13270
|
13270
13270-1063 PLATE,JOINT STAYプレ-ト，フイツテイング ステ- |
13270-1063 |
from US $5.70 |
||
|
14030
|
14030
14030-1054 COVER-CARBURETORカバ-(キヤブレタ) |
14030-1054 |
from US $13.29 |
||
|
14041
|
14041
14041-1061
TOP-CHAMBER,MIXING
カバ-コンプ，ミキシング，インサイド |
14041-1061 |
— | ||
| replacement | |||||
|
14041
|
14041
16005-1065 TOP-CHAMBER,MIXINGカバ-コンプ，ミキシング，インサイド |
16005-1065 |
from US $45.78 |
||
|
15003
|
15003
15003-1446 CARBURETOR-ASSYキヤブレタアツシ |
15003-1446 |
from US $706.28 |
||
|
16007
|
16007
16007-1134 SEAT-SPRING,VALVEシ-ト(スプリング)，バルブ |
16007-1134 |
from US $27.53 |
||
|
16014
|
16014
16014-1081 SCREW-PILOT AIRスクリユ-(パイロツトエア) |
16014-1081 |
from US $18.53 |
||
|
16016
|
16016
16016-1101 PLUNGERプランジヤ，スタ-タ |
16016-1101 |
from US $38.56 |
||
|
16017
|
16017
16017-1400 JET-NEEDLE,#6ジエツト(ニ-ドル)，#6 |
16017-1400 |
from US $31.10 |
||
|
16021
|
16021
16021-1213 SCREW-THROTTLE STOPスクリユ-(スロツトルストツプ) |
16021-1213 |
from US $60.95 |
||
|
16030
|
16030
16030-1007 FLOAT VALVEバルブ(フロ-ト) |
16030-1007 |
from US $41.28 |
||
|
16031
|
16031
16031-1077 FLOATフロ-ト |
16031-1077 |
from US $36.20 |
||
|
16044
|
16044
16044-007 CLIP,FLOAT VALVEクリツプ，フロ-ト バルブ |
16044-007 |
from US $6.18 |
||
|
16146
|
16146
16146-1129 COVER-ASSY,PUMPカバ-アツシ，ポンプ |
16146-1129 |
from US $22.39 |
||
|
16160
|
16160
16160-1151
BODY
ボデイ，フイルタ |
16160-1151 |
— | ||
| replacement | |||||
|
16160
|
16160
16160-1359 BODYボデイ，フイルタ |
16160-1359 |
from US $6.34 |
||
|
16187
|
16187
16187-1092 NEEDLE-JET,N6OIニ-ドル(ジエツト)，N60I |
16187-1092 |
from US $23.79 |
||
|
43028
|
43028
43028-1081 DIAPHRAGM,VALVEダイアフラム，バルブ |
43028-1081 |
from US $141.52 |
||
|
49019
|
49019
49019-1068 FILTER-WATER,STRAINERフイルタ - ウオ-タ |
49019-1068 |
from US $5.23 |
||
|
49116
|
49116
49116-1081 VALVE ASSYバルブアツシ |
49116-1081 |
from US $78.24 |
||
|
49116A
|
49116A
49116-1126 VALVE-ASSYバルブアツシ |
49116-1126 |
from US $19.44 |
||
|
92005
|
92005
92005-1235 FITTINGフイテイング |
92005-1235 |
from US $12.21 |
||
|
92009
|
92009
92009-1551 SCREW,DRAINスクリユ-，ドレ-ン，M6X0.75 |
92009-1551 |
from US $6.34 |
||
|
92009A
|
92009A
92009-1713 SCREWスクリユ- |
92009-1713 |
from US $2.53 |
||
|
92022
|
92022
92022-1380 WASHER,5.2X13X1ワツシヤ，5.2X13X1 |
92022-1380 |
from US $2.69 |
||
|
92037
|
92037
92037-1201 CLAMPクランプ，チユ-ブ |
92037-1201 |
from US $3.48 |
||
|
92037A
|
92037A
92037-1531 CLAMP,TUBEクランプ，チユ-ブ |
92037-1531 |
from US $3.33 |
||
|
92055
|
92055
92055-1427 RING-O,4.5X1.5リング(0)，4.5X1.5 |
92055-1427 |
from US $5.07 |
||
|
92055A
|
92055A
92055-1518 RING-O,FLOAT CHAMBERリング(0)，フロ-ト チヤンバ |
92055-1518 |
from US $15.05 |
||
|
92059
|
92059
92059-1538 TUBE,6.5X11.5X200チユ-ブ，6.5X11.5X200 |
92059-1538 |
US $21.84 |
||
|
92059A
|
92059A
92059-1598 TUBE,6.5X9.5X500チユ-ブ，6.5X9.5X260 |
92059-1598 |
US $25.61 |
||
| replacement | |||||
|
92059A
|
92059A
92059-1465 TUBE,6.5X9.5X500チユ-ブ，6.5X9.5X260 |
92059-1465 |
from US $20.50 |
||
|
92059B
|
92059B
92059-1736 TUBE,7X10X100チユ-ブ，7X10X100 |
92059-1736 |
from US $2.79 |
||
|
92063
|
92063
92063-1013 MAIN JET,#140ジエツト(メイン)，#140 |
92063-1013 |
from US $8.71 |
||
|
92063A
|
92063A
92063-1015 MAIN JET,#138ジエツト(メイン)，#138 |
92063-1015 |
from US $8.71 |
||
|
92063B
|
92063B
92063-1016 MAIN JET,#142ジエツト(メイン)，#142 |
92063-1016 |
from US $8.67 |
||
