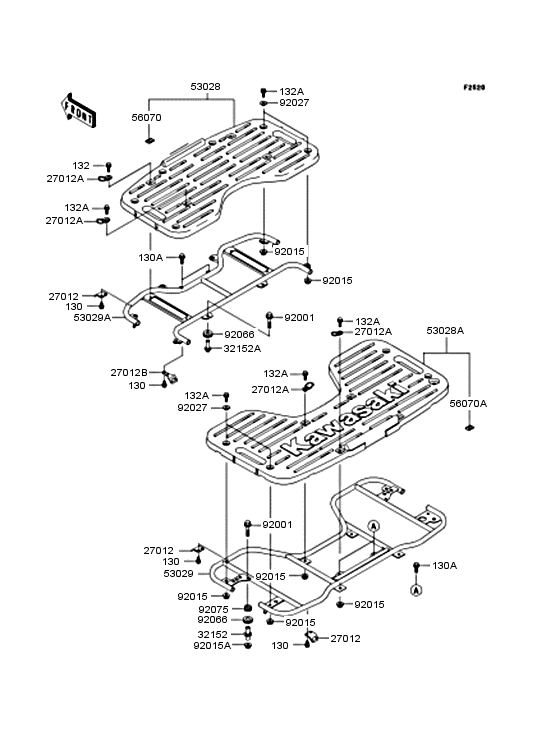

Carrier Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C3
- Engine Capacity
- 391
- Year
- 2001
- Sales region
- Japan
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- VF400AE 500001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0610
BOLT-FLANGED,6X10
ボルト(ツバツキ) |
130J0610 |
— | ||
| replacement | |||||
|
130
|
130
130BB0610 BOLT-FLANGED,6X10ボルト(ツバツキ) |
130BB0610 |
from US $1.11 |
||
|
130A
|
130A
130J0816
BOLT-FLANGED
ボルト(ツバツキ)，8X16 |
130J0816 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB0816 BOLT-FLANGEDボルト(ツバツキ)，8X16 |
130BB0816 |
from US $1.43 |
||
|
132
|
132
132J0820 BOLT-FLANGED-SMALLボルト(コガタツバツキ) |
132J0820 |
from US $1.74 |
||
| replacement | |||||
|
132
|
132
132BB0820 BOLT-FLANGED-SMALLボルト(コガタツバツキ) |
132BB0820 |
from US $1.27 |
||
|
132A
|
132A
132J0825
BOLT-FLANGED-SMALL
ボルト(コガタツバツキ) |
132J0825 |
— | ||
| replacement | |||||
|
132A
|
132A
132BB0825 BOLT-FLANGED-SMALLボルト(コガタツバツキ) |
132BB0825 |
from US $1.61 |
||
|
27012B
|
27012B
27012-1578 HOOKフツク |
27012-1578 |
US $5.72 |
||
|
27012
|
27012
27012-1576 HOOKフツク |
27012-1576 |
US $5.62 |
||
|
27012A
|
27012A
27012-1577 HOOKフツク |
27012-1577 |
from US $8.55 |
||
|
32152
|
32152
32152-1066 PIPE,REAR CARRIERパイプ，リヤ キヤリヤ |
32152-1066 |
from US $10.73 |
||
|
32152A
|
32152A
32152-1067 PIPE,FRONT CARRIERパイプ，フロント キヤリヤ |
32152-1067 |
from US $13.24 |
||
|
53028
|
53028
53028-1101-6Z CARRIER-ASSY,FR,BLACKキヤリヤアツシ，FR，ブラツク |
53028-1101-6Z |
US $144.09 |
||
|
53028A
|
53028A
53028-1102-6Z CARRIER-ASSY,RR,F.BLAキヤリヤアツシ，RR，ブラツク |
53028-1102-6Z |
US $162.81 |
||
|
53029
|
53029
53029-1208 CARRIER,RRキヤリヤ，RR |
53029-1208 |
US $98.82 |
||
|
53029A
|
53029A
53029-1210
CARRIER,FR
キヤリヤ，FR |
53029-1210 |
— | ||
|
56070
|
56070
56070-1103 Label-warning,carrier load,frラベル(ワ-ニング)，キヤリヤロード，FR |
56070-1103 |
US $4.51 |
||
|
56070A
|
56070A
56070-1104 Label-warning,carrier load,rrラベル(ワ-ニング)，キヤリヤロード，RR |
56070-1104 |
US $4.51 |
||
|
92001
|
92001
92001-1640
BOLT,FLANGED,8X80
ボルト，フランジ，8X80，ブラツク |
92001-1640 |
— | ||
| replacement | |||||
|
92001
|
92001
92150-1808 BOLT,FLANGED,8X80ボルト，フランジ，8X80，ブラツク |
92150-1808 |
from US $2.95 |
||
|
92015
|
92015
92015-1183 Nut,flanged,8mm,blackナツト，フランジ，8MM |
92015-1183 |
US $3.91 |
||
| replacement | |||||
|
92015
|
92015
92210-0004 NUT,FLANGED,8MMナツト，フランジ，8MM |
92210-0004 |
from US $3.80 |
||
|
92015A
|
92015A
92015-1696 NUT,FLANGED,LOCK,8MMナツト，フランジ，ロツク，8MM |
92015-1696 |
from US $3.17 |
||
| replacement | |||||
|
92015A
|
92015A
92210-0005 NUT,FLANGED,LOCK,8MMナツト，フランジ，ロツク，8MM |
92210-0005 |
from US $2.30 |
||
|
92027
|
92027
92027-1908 COLLARカラ- |
92027-1908 |
from US $5.54 |
||
|
92066
|
92066
92066-1438 PLUGプラグ |
92066-1438 |
from US $5.44 |
||
|
92075
|
92075
92075-1086 DAMPER RUBBER,MUFFLERダンパ |
92075-1086 |
from US $3.48 |
||
