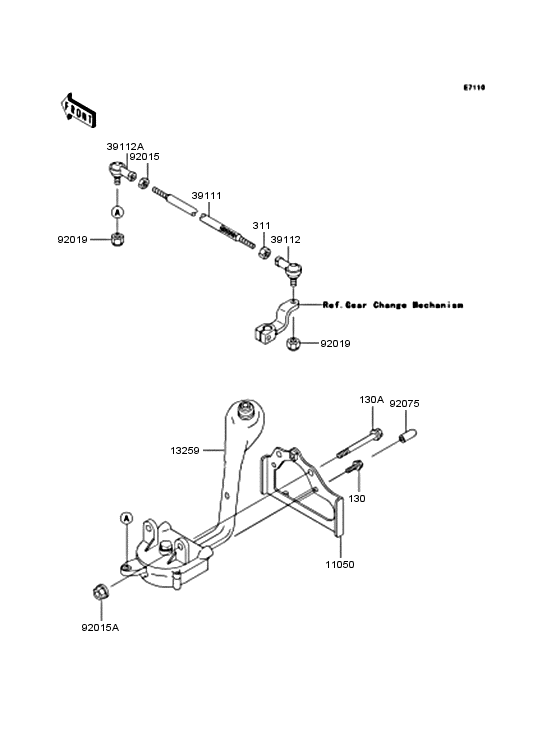

Control Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C3
- Engine Capacity
- 391
- Year
- 2001
- Sales region
- Japan
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- VF400AE 500001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130A
|
130A
130J0860 BOLT-FLANGEDボルト(ツバツキ) |
130J0860 |
from US $1.90 |
||
| replacement | |||||
|
130A
|
130A
130BB0860 BOLT-FLANGEDボルト(ツバツキ) |
130BB0860 |
from US $1.56 |
||
|
130
|
130
130J0616
BOLT-FLANGED,6X16
ボルト(ツバツキ)，6X16 |
130J0616 |
— | ||
| replacement | |||||
|
130
|
130
130BB0616 BOLT-FLANGED,6X16ボルト(ツバツキ)，6X16 |
130BB0616 |
from US $0.95 |
||
|
311
|
311
311J0600 NUT-HEX,6MMロツカク ナツト |
311J0600 |
from US $0.95 |
||
| replacement | |||||
|
311
|
311
311BB0600 NUT-HEX,6MMロツカク ナツト |
311BB0600 |
from US $0.72 |
||
|
11050
|
11050
11050-1700 BRACKETブラケツト |
11050-1700 |
from US $21.92 |
||
|
13259
|
13259
13259-1006 LEVER-ASSY-SHIFT CONTレバ-アツシ(シフトコントロ-ル) |
13259-1006 |
US $604.80 |
||
| replacement | |||||
|
13259
|
13259
13259-1010 LEVER-ASSY-SHIFT CONTレバ-アツシ(シフトコントロ-ル) |
13259-1010 |
from US $488.33 |
||
|
39111
|
39111
39111-1162 ROD-TIEロツド(タイ) |
39111-1162 |
from US $14.31 |
||
|
39112
|
39112
39112-1006 RODEND,TIE,GR CHANGEロツドエンド(タイ) |
39112-1006 |
from US $30.33 |
||
|
39112A
|
39112A
39112-1070
RODEND-TIE
ロツドエンド(タイ) |
39112-1070 |
— | ||
|
92015
|
92015
92015-1125 NUTナツト |
92015-1125 |
US $3.29 |
||
| replacement | |||||
|
92015
|
92015
92015-1178 NUTナツト |
92015-1178 |
from US $3.37 |
||
|
92015A
|
92015A
92015-1397 NUT,FLANGED,8MMナツト，ロツク，フランジド，8MM |
92015-1397 |
from US $3.37 |
||
|
92019
|
92019
92019-008 NUTセルフロツク ナツト，6MM |
92019-008 |
from US $2.53 |
||
|
92075
|
92075
92075-1980 DAMPERダンパ |
92075-1980 |
from US $3.64 |
||
