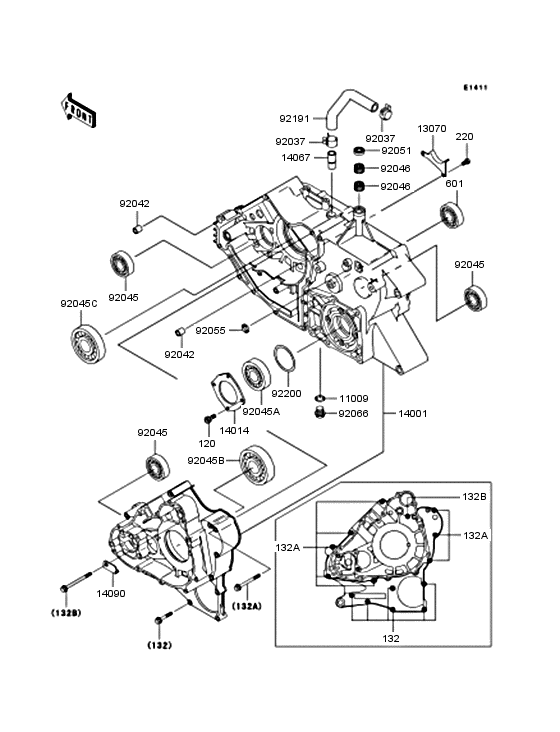

Crankcase Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C3
- Engine Capacity
- 391
- Year
- 2001
- Sales region
- Japan
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- VF400AE 500001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120P0616 BOLT,SOCKET,6X16ボルト(ロツカクアナ)，6X16 |
120P0616 |
from US $1.43 |
||
| replacement | |||||
|
120
|
120
120CA0616 BOLT-SOCKET,6X16ボルト(ロツカクアナ)，6X16 |
120CA0616 |
from US $1.11 |
||
|
132
|
132
132Y0635
BOLT-FLANGED-SMALL
ボルト(コガタツバツキ) |
132Y0635 |
— | ||
| replacement | |||||
|
132
|
132
132BD0635 BOLT-FLANGED-SMALLボルト(コガタツバツキ) |
132BD0635 |
from US $1.27 |
||
|
132A
|
132A
132Y0665
BOLT-FLANGED-SMALL
ボルト(コガタツバツキ) |
132Y0665 |
— | ||
| replacement | |||||
|
132A
|
132A
132BD0665 BOLT-FLANGED-SMALLボルト(コガタツバツキ) |
132BD0665 |
from US $1.40 |
||
|
132B
|
132B
132Y0675 BOLT-FLANGED-SMALLボルト(コガタツバツキ) |
132Y0675 |
from US $1.90 |
||
| replacement | |||||
|
132B
|
132B
132BD0675 BOLT-FLANGED-SMALLボルト(コガタツバツキ) |
132BD0675 |
from US $1.43 |
||
|
220
|
220
220B0614
SCREW-PAN-CROS,6X14
ナベコネジ(+ジアナ)，6X14 |
220B0614 |
— | ||
| replacement | |||||
|
220
|
220
220AA0614 SCREW-PAN-CROS,6X14ナベコネジ(+ジアナ)，6X14 |
220AA0614 |
from US $0.95 |
||
|
601
|
601
601A6204Z BEARING-BALLボ-ル ベアリング |
601A6204Z |
from US $18.69 |
||
|
11009
|
11009
11009-2175 GASKETガスケツト |
11009-2175 |
from US $1.58 |
||
|
13070
|
13070
13070-1255 GUIDE,CHAINガイド，チエ-ン |
13070-1255 |
from US $4.59 |
||
|
14001
|
14001
14001-1245 SET-CRANKCASEセツト(クランクケ-ス) |
14001-1245 |
US $722.61 |
||
|
14014
|
14014
14014-1108 PLATE-POSITIONプレ-ト(ポジシヨン) |
14014-1108 |
US $19.48 |
||
|
14067
|
14067
14067006 BREATHER JOINTブリ-ザ ジヨイント |
14067006 |
from US $15.05 |
||
|
14090
|
14090
14090-1710 COVERカバ- |
14090-1710 |
US $2.16 |
||
|
92037
|
92037
92037-1860
CLAMP
クランプ |
92037-1860 |
— | ||
| replacement | |||||
|
92037
|
92037
92171-0329 CLAMPクランプ |
92171-0329 |
from US $5.39 |
||
|
92042
|
92042
92042-031 PIN,DOWEL,12MMドエル ピン，12X14 |
92042-031 |
from US $3.96 |
||
| replacement | |||||
|
92042
|
92042
92043-0963 Pin,12X14ドエル ピン，12X14 |
92043-0963 |
from US $3.96 |
||
|
92045
|
92045
92045-1142 BEARING-BALL,TMB304CCベアリング(ボ-ル)，TMB304CCM |
92045-1142 |
from US $32.04 |
||
|
92045A
|
92045A
92045-1254 BEARING-BALL,6305RHR4ベアリング(ボ-ル)，6305RHR4SH2 |
92045-1254 |
from US $36.35 |
||
|
92045B
|
92045B
92045-1257 BEARING-BALL,6307SH2-ベアリング(ボ-ル)，6307SH2-9C4 |
92045-1257 |
from US $44.78 |
||
|
92045C
|
92045C
92045-1258 BEARING-BALL,6208RSH2ベアリング(ボ-ル)，6208RSH2-9C3 |
92045-1258 |
from US $44.78 |
||
|
92046
|
92046
92046-1148 BEARING-NEEDLE,HK1312ベアリング(ニ-ドル)，HK1312 |
92046-1148 |
from US $15.68 |
||
|
92051
|
92051
92051-005 OIL SEAL,TB13225.5オイル シ-ル，TB13225.5 |
92051-005 |
from US $6.57 |
||
|
92055
|
92055
92055-048 O RING,0.D=18MMリング(0)，OD=18 |
92055-048 |
from US $3.33 |
||
|
92066
|
92066
92066-2196 PLUGプラグ，ドレイン |
92066-2196 |
from US $3.64 |
||
|
92191
|
92191
92191-1114 TUBEチユ-ブ |
92191-1114 |
from US $9.61 |
||
|
92200
|
92200
92200-1106 WASHER,50X60.5X0.5ワツシヤ，50X60X0.5 |
92200-1106 |
US $5.94 |
||
