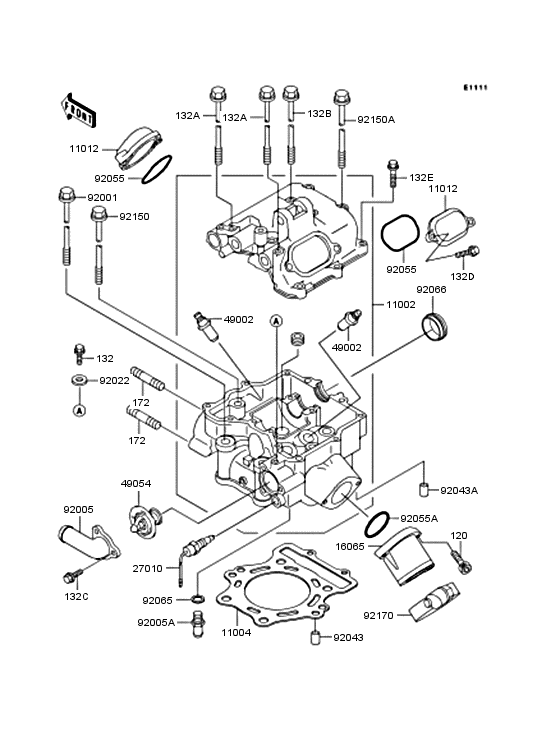

Cylinder head Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C3
- Engine Capacity
- 391
- Year
- 2001
- Sales region
- Japan
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- VF400AE 500001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120S0620 BOLT-SOCKETボルト(ロツカクアナ)，6X20 |
120S0620 |
from US $1.11 |
||
| replacement | |||||
|
120
|
120
120CB0620 BOLT-SOCKETボルト(ロツカクアナ)，6X20 |
120CB0620 |
from US $1.11 |
||
|
132C
|
132C
132J0612
BOLT-FLANGED-SMALL,6X
ボルト(コガタツバツキ)，6X12 |
132J0612 |
— | ||
| replacement | |||||
|
132C
|
132C
132BB0612 BOLT-FLANGED-SMALL,6Xボルト(コガタツバツキ)，6X12 |
132BB0612 |
from US $0.95 |
||
|
132D
|
132D
132V0620
BOLT-FLANGED-SMALL,6X
ボルト(コガタツバツキ)，6X20 |
132V0620 |
— | ||
| replacement | |||||
|
132D
|
132D
132BA0620 BOLT-FLANGED-SMALL,6X20ボルト(コガタツバツキ)，6X20 |
132BA0620 |
from US $1.43 |
||
|
132E
|
132E
132V0630 BOLT-FLANGED-SMALLボルト(コガタツバツキ)，6X30 |
132V0630 |
from US $1.74 |
||
| replacement | |||||
|
132E
|
132E
132BA0630 BOLT-FLANGED-SMALLボルト(コガタツバツキ)，6X30 |
132BA0630 |
from US $1.27 |
||
|
132
|
132
132G0610
BOLT-FLANGED-SMALL,6X
ボルト(コガタツバツキ)，6X10 |
132G0610 |
— | ||
| replacement | |||||
|
132
|
132
132BA0610 BOLT-FLANGED-SMALL,6Xボルト(コガタツバツキ)，6X10 |
132BA0610 |
from US $0.79 |
||
|
132A
|
132A
132G0655 BOLT-FLANGED-SMALL,6Xボルト(コガタツバツキ)，6X55 |
132G0655 |
from US $1.74 |
||
| replacement | |||||
|
132A
|
132A
132BA0655 BOLT-FLANGED-SMALL,6Xボルト(コガタツバツキ)，6X55 |
132BA0655 |
from US $1.27 |
||
|
132B
|
132B
132G0665 BOLT-FLANGED-SMALLボルト(コガタツバツキ)，6X65 |
132G0665 |
from US $1.90 |
||
| replacement | |||||
|
132B
|
132B
132BA0665 BOLT-FLANGED-SMALLボルト(コガタツバツキ)，6X65 |
132BA0665 |
from US $1.43 |
||
|
172
|
172
172G0822 BOLT-STUD,8X22ウエコミ ボルト，8X22 |
172G0822 |
from US $1.27 |
||
| replacement | |||||
|
172
|
172
172BA0822 BOLT-STUD,8X22ウエコミ ボルト，8X22 |
172BA0822 |
from US $1.24 |
||
|
11002
|
11002
11002-1342 HEAD-ASSY-CYLINDERヘツドアツシ(シリンダ) |
11002-1342 |
US $1,018.75 |
||
|
11004
|
11004
11004-1233 GASKET-HEADガスケツト(ヘツド) |
11004-1233 |
from US $32.54 |
||
|
11012
|
11012
11012-1793 CAP,ROCKER CASEキヤツプ，ロツカ- ケ-ス |
11012-1793 |
from US $18.66 |
||
|
16065
|
16065
16065-1337 HOLDER-CARBURETORホルダ(キヤブレタ) |
16065-1337 |
from US $27.99 |
||
|
27010
|
27010
27010-1346 SWITCH,SENSOR WATERスイツチ，センサ ウオ-タ |
27010-1346 |
from US $88.56 |
||
|
49002
|
49002
49002-1052 GUIDE-VALVEガイド(バルブ) |
49002-1052 |
from US $27.53 |
||
|
49054
|
49054
49054-1053 THERMOSTATサ-モスタツト |
49054-1053 |
from US $36.65 |
||
|
92001
|
92001
92001-1994
BOLT,10X185
ボルト，フランジ，10X185 |
92001-1994 |
— | ||
|
92005
|
92005
92005-1121 FITTINGフイテイング |
92005-1121 |
from US $20.94 |
||
|
92005A
|
92005A
92005-1344 FITTINGフイテイング |
92005-1344 |
from US $7.78 |
||
|
92022
|
92022
92022-304 WASHER,PLAINワツシヤ，6.2X11X1 |
92022-304 |
from US $2.53 |
||
|
92043
|
92043
92043-1263 PIN,6.2X8X14ピン，6.2X8X14 |
92043-1263 |
from US $0.75 |
||
|
92043A
|
92043A
92043-1302 PIN,DOWEL,8X10ピン，ドウエル，8X10 |
92043-1302 |
from US $1.45 |
||
|
92055
|
92055
92055-1120 RING-0,55MMリング(0)，55MM |
92055-1120 |
from US $3.17 |
||
|
92055A
|
92055A
92055-1342 RING-O,39.5X2.4リング(O)，39.5X2.4 |
92055-1342 |
from US $8.71 |
||
|
92065
|
92065
92065-058 GASKETガスケツト，10.5X16X1 |
92065-058 |
from US $3.37 |
||
|
92066
|
92066
92066-1289 PLUGプラグ |
92066-1289 |
from US $8.09 |
||
|
92150
|
92150
92150-1531 BOLT,8X83ボルト，8X83 |
92150-1531 |
from US $6.06 |
||
|
92150A
|
92150A
92150-1552 BOLT,6X135ボルト，6X135 |
92150-1552 |
from US $3.96 |
||
|
92170
|
92170
92170-1677
CLAMP
クランプ |
92170-1677 |
— | ||
