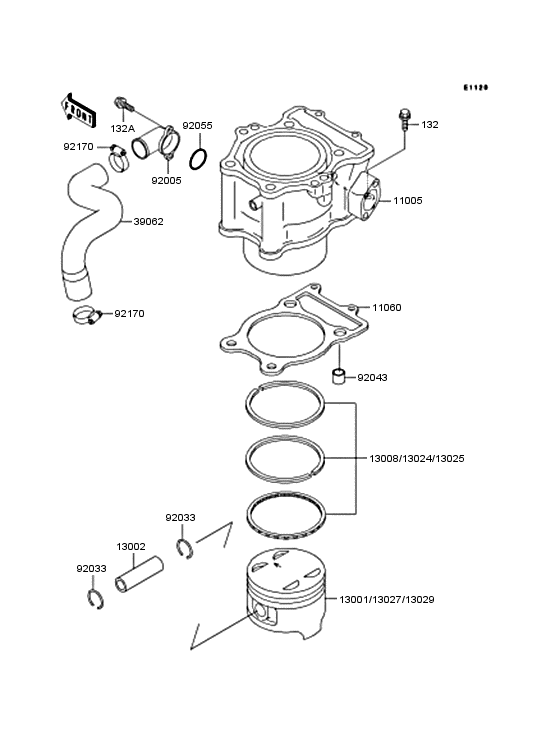

Cylinder/piston Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C3
- Engine Capacity
- 391
- Year
- 2001
- Sales region
- Japan
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- VF400AE 500001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132G0625
BOLT-FLANGED-SMALL,6X
ボルト(コガタツバツキ)，6X25 |
132G0625 |
— | ||
| replacements | |||||
|
132
|
132
92002-1609 BOLTボルト(コガタツバツキ)，6X25 |
92002-1609 |
from US $2.85 |
||
|
132
|
132
132BA0625 BOLT-FLANGED-SMALL,6Xボルト(コガタツバツキ)，6X25 |
132BA0625 |
from US $1.27 |
||
|
132A
|
132A
132J0616 BOLT-FLANGED-SMALL,6Xボルト(コガタツバツキ)，6X16 |
132J0616 |
US $24.10 |
||
| replacement | |||||
|
132A
|
132A
132BB0616 BOLT-FLANGED-SMALL,6Xボルト(コガタツバツキ)，6X16 |
132BB0616 |
from US $1.11 |
||
|
11005
|
11005
11005-1673 CYLINDER-ENGINEシリンダ(エンジン) |
11005-1673 |
from US $626.75 |
||
|
11060
|
11060
11060-1205 GASKET,CYLINDER BASEガスケツト，シリンダ ベ-ス |
11060-1205 |
from US $10.27 |
||
|
13001
|
13001
13001-1521
PISTON-ENGINE,STD
ピストン(エンジン)，STD |
13001-1521 |
— | ||
|
13002
|
13002
13002-1056 PIN-PISTONピン(ピストン) |
13002-1056 |
from US $25.40 |
||
|
13008
|
13008
13008-1142 RING-SET-PISTON,STDリングセツト(ピストン)，STD |
13008-1142 |
from US $67.25 |
||
|
13024
|
13024
13024-1090 RING-SET-PISTON LL,O/リングセツト(ピストンエルエル)，O/S 1.00 |
13024-1090 |
US $62.83 |
||
|
13025
|
13025
13025-1114 RING-SET-PISTON L,O/Sリングセツト(ピストンエル)，O/S 0.50 |
13025-1114 |
from US $62.83 |
||
|
13027
|
13027
13027-1201 PISTON-ENGINE LL,O/Sピストン(エンジンエルエル)，O/S 1.00 |
13027-1201 |
from US $119.59 |
||
|
13029
|
13029
13029-1258 PISTON-ENGINE L,O/S 0ピストン(エンジンエル)，O/S 0.50 |
13029-1258 |
from US $119.59 |
||
|
39062
|
39062
39062-1674
HOSE-COOLING
ホ-ス(ク-リング) |
39062-1674 |
— | ||
|
92005
|
92005
92005-1145 FITTING,CYLINDERフイテイング，シリンダ |
92005-1145 |
from US $20.43 |
||
|
92033
|
92033
92033-1188 RING-SNAPリング(スナツプ) |
92033-1188 |
from US $3.20 |
||
|
92043
|
92043
92043-1266 PIN,11X14X12.3ピン，11X14X12.3 |
92043-1266 |
from US $1.43 |
||
|
92055
|
92055
92055-091 O RING,RELEASE PLUGリング(0) |
92055-091 |
from US $3.48 |
||
|
92170
|
92170
92170-1497 Clamp, cooling hoseクランプ |
92170-1497 |
US $13.27 |
||
| replacement | |||||
|
92170
|
92170
92171-0261 CLAMPクランプ |
92171-0261 |
from US $11.88 |
||
