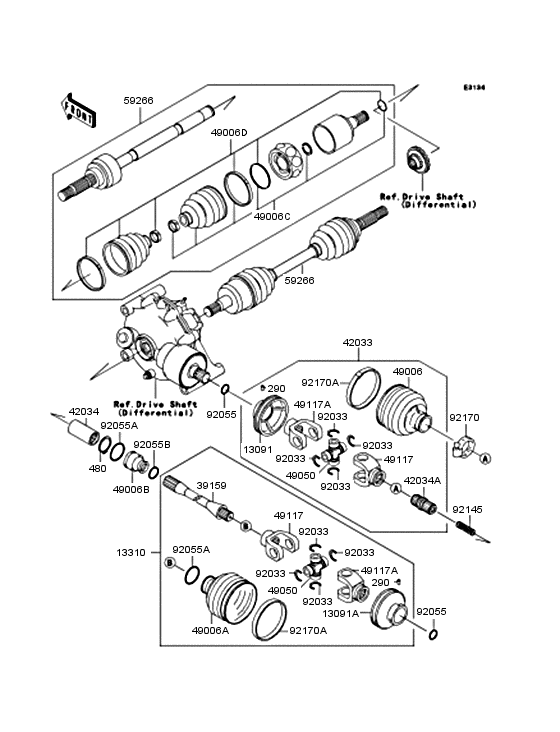

Drive shaft (フロント) Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C3
- Engine Capacity
- 391
- Year
- 2001
- Sales region
- Japan
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- VF400AE 500001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
290
|
290
290Q0508 SCREW-SET-SOCKETトメネジ(ロツカクアナ)，5X8 |
290Q0508 |
from US $1.71 |
||
|
480
|
480
480J2200 CIRCLIP,22MMトメワ(ジクヨウ)，22MM |
480J2200 |
from US $1.27 |
||
|
13091
|
13091
13091-1863 HOLDERホルダ |
13091-1863 |
US $124.56 |
||
|
13091A
|
13091A
13091-1892 HOLDERホルダ |
13091-1892 |
US $83.97 |
||
|
13310
|
13310
13310-1023
SHAFT-ASSY
シヤフトアツシ |
13310-1023 |
— | ||
|
39159
|
39159
39159-1108 SHAFT-DRIVEシヤフト(ドライブ) |
39159-1108 |
US $227 |
||
|
42033
|
42033
42033-1188
COUPLING ASSY
カツプリングアツシ |
42033-1188 |
— | ||
|
42034
|
42034
42034-1103 COUPLINGカツプリング |
42034-1103 |
from US $30.95 |
||
|
42034A
|
42034A
42034-1127 COUPLINGカツプリング |
42034-1127 |
from US $36.55 |
||
|
49006C
|
49006C
49006-1322 BOOT,JOINT BALL,INSIDブ-ツ，ジヨイント ボ-ル，インサイド |
49006-1322 |
from US $34.21 |
||
|
49006D
|
49006D
49006-1324 BOOT,JOINT BALL,OUTSIブ-ツ，ジヨイント ボ-ル，アウトサイド |
49006-1324 |
from US $67.03 |
||
|
49006
|
49006
49006-1293 BOOT,COUPLINGブ-ツ，カツプリング |
49006-1293 |
from US $25.34 |
||
|
49006A
|
49006A
49006-1294 BOOT,DRIVE SHAFTブ-ツ，ドライブ シヤフト |
49006-1294 |
from US $16.95 |
||
|
49006B
|
49006B
49006-1295 BOOT,DRIVE SHAFTブ-ツ，ドライブシヤフト |
49006-1295 |
from US $10.11 |
||
|
49050
|
49050
49050-1057 SPIDERスパイダ |
49050-1057 |
from US $65.23 |
||
|
49117
|
49117
49117-1083
YOKE,DRIVE
ヨ-ク，ドライブ |
49117-1083 |
— | ||
|
49117A
|
49117A
49117-1084
YOKE,DRIVE
ヨ-ク，ドライブ |
49117-1084 |
— | ||
|
59266
|
59266
59266-1101 JOINT-BALLジヨイント(ボ-ル) |
59266-1101 |
from US $499.22 |
||
|
92033
|
92033
92033-1283 RING-SNAPリング(スナツプ) |
92033-1283 |
from US $3.74 |
||
|
92055
|
92055
92055-055 O RINGリング(0)，19.5X1.5 |
92055-055 |
from US $3.37 |
||
|
92055A
|
92055A
92055-1451 RING-O,19.5X3.0リング(0)，19.5X3.0 |
92055-1451 |
from US $2.65 |
||
|
92055B
|
92055B
92055-1531 RING-O,15X3.0リング(0)，15X3.0 |
92055-1531 |
from US $5.44 |
||
|
92145
|
92145
92145-1055 SPRINGスプリング |
92145-1055 |
from US $3.11 |
||
|
92170
|
92170
92170-1678 Clamp, cableクランプ |
92170-1678 |
US $6.95 |
||
| replacement | |||||
|
92170
|
92170
92171-0179 CLAMPクランプ |
92171-0179 |
from US $6.49 |
||
|
92170A
|
92170A
92170-1727 CLAMPクランプ |
92170-1727 |
from US $13.27 |
||
