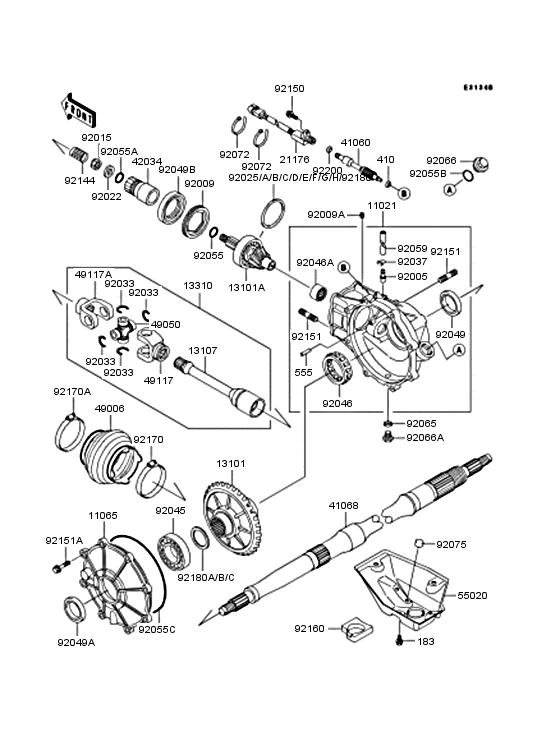

Drive shaft (リア) Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C3
- Engine Capacity
- 391
- Year
- 2001
- Sales region
- Japan
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- VF400AE 500001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11021
|
11021
11021-1128
CASE-ASSY,DRIVE SHAFT
ケ-スアツシ，ドライブ シヤフト |
11021-1128 |
— | ||
|
11065
|
11065
11065-1103 CAPキヤツプ |
11065-1103 |
from US $130.64 |
||
|
13101
|
13101
13101-1277 GEAR ASSY, BEVELギヤアツシ，39T |
13101-1277 |
from US $436.95 |
||
|
13101A
|
13101A
13101-1283 GEAR-ASSYギヤアツシ，9T |
13101-1283 |
from US $301.71 |
||
|
13107
|
13107
13107-1408 SHAFT,DRIVEシヤフト，ドライブ |
13107-1408 |
US $168.35 |
||
|
13310
|
13310
13310-1024 SHAFT-ASSY,DRIVEシヤフトアツシ，ドライブ |
13310-1024 |
US $278.38 |
||
|
21176
|
21176
21176-1102 SENSOR,KVF400-C1センサ- |
21176-1102 |
from US $164.85 |
||
|
41060
|
41060
41060-1166
GEAR-METER SCREW
ギヤ(メ-タスクリユ-) |
41060-1166 |
— | ||
|
41068
|
41068
41068-1388 AXLEアクスル |
41068-1388 |
from US $344.39 |
||
|
42034
|
42034
42034-1145 COUPLINGカツプリング |
42034-1145 |
from US $83.20 |
||
|
49006
|
49006
49006-1307 BOOTブ-ツ |
49006-1307 |
US $32.95 |
||
|
49050
|
49050
49050-1002 SPIDERスパイダ |
49050-1002 |
from US $94.25 |
||
|
49117
|
49117
49117-1085 YOKE,DRIVEヨ-ク，ドライブ |
49117-1085 |
from US $42.93 |
||
| replacement | |||||
|
49117
|
49117
49117-0598 YOKE,DRIVEヨ-ク，ドライブ |
49117-0598 |
US $75.74 |
||
|
49117A
|
49117A
49117-1086 YOKE,DRIVEヨ-ク，ドライブ |
49117-1086 |
from US $42.93 |
||
| replacement | |||||
|
49117A
|
49117A
49117-0599 YOKE,DRIVEヨ-ク，ドライブ |
49117-0599 |
US $75.74 |
||
|
55020
|
55020
55020-1551 GUARDガ-ド |
55020-1551 |
US $17.57 |
||
|
92005
|
92005
92005-1127 FITTING,BREATHERフイテイング，ブリ-ザ |
92005-1127 |
from US $11.88 |
||
|
92009
|
92009
92009-1528 SCREWスクリユ- |
92009-1528 |
from US $17.73 |
||
|
92009A
|
92009A
92009-1896 SCREW,6X12スクリユ-，6X12 |
92009-1896 |
US $1.58 |
||
|
92015
|
92015
92015-1182 NUT,12MMナツト，12MM |
92015-1182 |
from US $4.44 |
||
|
92022
|
92022
92022-1293 WASHER,12X3X25X3.2ワツシヤ，12.3X25X3.2 |
92022-1293 |
from US $3.96 |
||
|
92025
|
92025
92025-1669 SHIM,52.5X61.5X0.15シム，52.5X61.5X0.15 |
92025-1669 |
from US $6.68 |
||
|
92025A
|
92025A
92025-1670 SHIM,52.5X61.5X0.18シム，52.5X61.5X0.18 |
92025-1670 |
from US $6.68 |
||
|
92025B
|
92025B
92025-1671 SHIM,52.5X61.5X0.8シム，52.5X61.5X0.8 |
92025-1671 |
from US $6.68 |
||
|
92025C
|
92025C
92025-1672 SHIM,52.5X61.5X0.9シム，52.5X61.5X0.9 |
92025-1672 |
from US $6.68 |
||
|
92025D
|
92025D
92025-1673 SHIM,52.5X61.5X1.0シム，52.5X61.5X1.0 |
92025-1673 |
from US $6.68 |
||
|
92025E
|
92025E
92025-1674 SHIM,52.5X61.5X1.1シム，52.5X61.5X1.1 |
92025-1674 |
from US $8.09 |
||
|
92025F
|
92025F
92025-1675 SHIM,52.5X61.5X1.2シム，52.5X61.5X1.2 |
92025-1675 |
from US $8.09 |
||
|
92025G
|
92025G
92025-1676 SHIM,52.5X61.5X1.3シム，52.5X61.5X1.3 |
92025-1676 |
from US $8.09 |
||
|
92025H
|
92025H
92025-1677 SHIM,52.5X61.5X1.4シム，52.5X61.5X1.4 |
92025-1677 |
from US $8.09 |
||
|
92033
|
92033
92033-1030 RING-SNAPリング(スナツプ) |
92033-1030 |
from US $2.33 |
||
|
92037
|
92037
92037-147 CLAMP,CHAIN OILERクランプ，チユ-ブ |
92037-147 |
from US $4.95 |
||
|
92045
|
92045
92045-1015 BEARING,BALL,#6009ベアリング(ボ-ル)，#6009 |
92045-1015 |
from US $38.90 |
||
|
92046
|
92046
92046-1247 BEARING-NEEDLEベアリング(ニ-ドル) |
92046-1247 |
from US $36.23 |
||
|
92046A
|
92046A
92046-1265 BEARING-NEEDLEベアリング(ニ-ドル) |
92046-1265 |
from US $30.17 |
||
|
92049
|
92049
92049-1248 SEAL-OILシ-ル(オイル) |
92049-1248 |
from US $14.57 |
||
