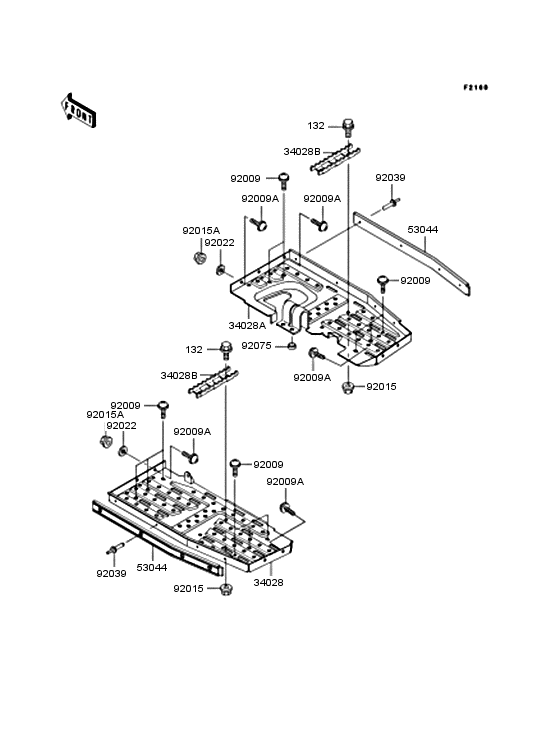

Footrests Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C3
- Engine Capacity
- 391
- Year
- 2001
- Sales region
- Japan
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- VF400AE 500001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132J0614
BOLT-FLANGED-SMALL,6X
ボルト(コガタツバツキ)，6X14 |
132J0614 |
— | ||
| replacement | |||||
|
132
|
132
132BB0614 BOLT-FLANGED-SMALL,6Xボルト(コガタツバツキ)，6X14 |
132BB0614 |
from US $1.43 |
||
|
34028
|
34028
34028-1502 STEP,FOOT BOARD,LHステツプ，フツト ボ-ド，LH |
34028-1502 |
from US $53.55 |
||
|
34028A
|
34028A
34028-1503 STEP,FOOT BOARD,RHステツプ，フツト ボ-ド，RH |
34028-1503 |
from US $86.17 |
||
|
34028B
|
34028B
34028-1506 STEPステツプ |
34028-1506 |
US $6.68 |
||
|
53044
|
53044
53044-1293
TRIM,FOOT BOARD
トリム，フツト ボ-ド |
53044-1293 |
— | ||
|
92009
|
92009
92009-1166 SCREW,TAPPINGスクリユ-，タツピング，6X16 |
92009-1166 |
from US $2.88 |
||
|
92009A
|
92009A
92009-1621
SCREW
スクリユ-，6X16 |
92009-1621 |
— | ||
| replacement | |||||
|
92009A
|
92009A
92009-1694 SCREWスクリユ-，6X16 |
92009-1694 |
from US $5.13 |
||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MMナツト，フランジ，6MM |
92015-1367 |
from US $3.01 |
||
|
92015A
|
92015A
92015-1675 NUTナツト，ロツク，フランジ，6MM |
92015-1675 |
from US $2.69 |
||
|
92022
|
92022
92022-1093 WASHER,6.5X16X1.0ワツシヤ，6.5X16X1.0 |
92022-1093 |
from US $1.43 |
||
|
92039
|
92039
92039-1150 RIVETリベツト |
92039-1150 |
from US $2.33 |
||
|
92075
|
92075
92075-1598 DAMPER,SIDE COVERダンパ |
92075-1598 |
from US $5.52 |
||
