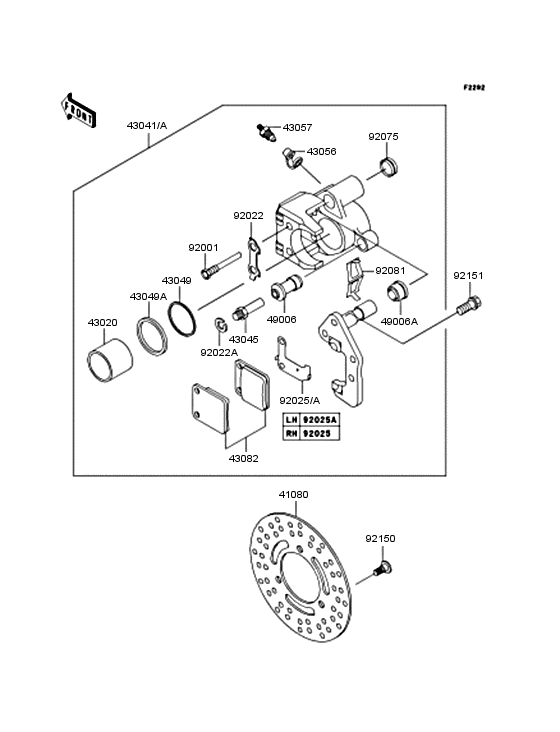

Front brake Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C3
- Engine Capacity
- 391
- Year
- 2001
- Sales region
- Japan
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- VF400AE 500001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41080
|
41080
41080-1216 DISC,FRデイスク，FR |
41080-1216 |
from US $258.16 |
||
|
43020
|
43020
43020-1114 PISTON-COMP-BRAKEピストンコンプ(ブレ-キ) |
43020-1114 |
from US $42.77 |
||
|
43041A
|
43041A
43041-1817 CALIPER-ASSY,FR,RHキヤリパアツシ，FR，RH |
43041-1817 |
US $390.24 |
||
| replacements | |||||
|
43041A
|
43041A
43080-5136 CALIPER-SUB-ASSY,FR,Rキヤリパアツシ，FR，RH |
43080-5136 |
from US $342.14 |
||
|
43041A
|
43041A
43082-0084 PAD-ASSY-BRAKEキヤリパアツシ，FR，RH |
43082-0084 |
from US $48.03 |
||
|
43041
|
43041
43041-1816 CALIPER-ASSY,FR,LHキヤリパアツシ，FR，LH |
43041-1816 |
US $390.24 |
||
| replacements | |||||
|
43041
|
43041
43080-5135 CALIPER-SUB-ASSY,FR,Lキヤリパアツシ，FR，LH |
43080-5135 |
from US $342.14 |
||
|
43041
|
43041
43082-0084 PAD-ASSY-BRAKEキヤリパアツシ，FR，LH |
43082-0084 |
from US $48.03 |
||
|
43045
|
43045
43045-1010 SHAFT-CALIPERシヤフト(キヤリパ) |
43045-1010 |
from US $14.10 |
||
|
43049
|
43049
43049-1081 PACKINGパツキング |
43049-1081 |
from US $6.72 |
||
|
43049A
|
43049A
43049-1082 PACKINGパツキング |
43049-1082 |
from US $9.56 |
||
|
43056
|
43056
43056-1055 Breather-brakeブリ-ザ(ブレ-キ) |
43056-1055 |
from US $8.41 |
||
| replacement | |||||
|
43056
|
43056
43056-1056 BREATHER,BRAKEブリ-ザ(ブレ-キ) |
43056-1056 |
from US $10.14 |
||
|
43057
|
43057
43057-1001 CAP-BREATHERキヤツプ(ブリ-ザ) |
43057-1001 |
from US $3.48 |
||
|
43082
|
43082
43082-1201 PAD-ASSY-BRAKEパツドアツシ(ブレ-キ) |
43082-1201 |
US $39.24 |
||
| replacement | |||||
|
43082
|
43082
43082-0084 PAD-ASSY-BRAKEパツドアツシ(ブレ-キ) |
43082-0084 |
from US $48.03 |
||
|
49006
|
49006
49006-1088 BOOT,CALIPERブ-ツ，キヤリパ |
49006-1088 |
from US $8.55 |
||
|
49006A
|
49006A
49006-1089 BOOT,CALIPERブ-ツ，キヤリパ |
49006-1089 |
from US $5.54 |
||
|
92001
|
92001
92001-1723 BOLT,PAD HOLDERボルト，パツド ホルダ |
92001-1723 |
from US $5.54 |
||
|
92022A
|
92022A
92022-1373 WASHERワツシヤ |
92022-1373 |
from US $2.53 |
||
|
92022
|
92022
92022-1372 WASHER,LOCKワツシヤ，ロツク |
92022-1372 |
from US $3.48 |
||
|
92025
|
92025
92025-1344 SHIMシム |
92025-1344 |
from US $8.87 |
||
|
92025A
|
92025A
92025-1817 SHIM,PADシム，パツド |
92025-1817 |
from US $6.34 |
||
|
92075
|
92075
92075-1414 DAMPERダンパ |
92075-1414 |
from US $4.12 |
||
|
92081
|
92081
92081-1502 SPRING,PADスプリング |
92081-1502 |
from US $5.54 |
||
|
92150
|
92150
92150-1760 BOLT,SOCKET,8X20ボルト，ソケツト，8X20 |
92150-1760 |
from US $3.80 |
||
|
92151
|
92151
92151-1793 BOLT,FLANGED,8X19ボルト，フランジド，8X19 |
92151-1793 |
from US $1.40 |
||
