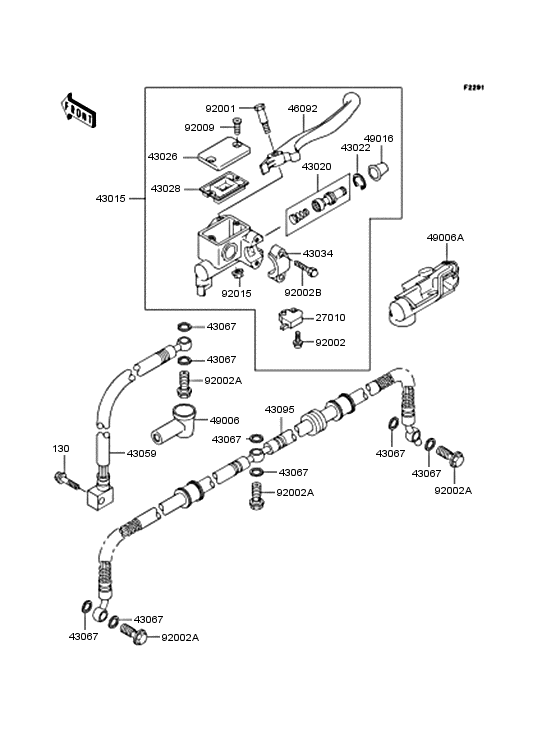

Front master cylinder Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C3
- Engine Capacity
- 391
- Year
- 2001
- Sales region
- Japan
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- VF400AE 500001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0825
BOLT-FLANGED,8X25
ボルト(ツバツキ)，8X25 |
130B0825 |
— | ||
| replacement | |||||
|
130
|
130
130CA0825 BOLT-FLANGED,8X25ボルト(ツバツキ)，8X25 |
130CA0825 |
from US $0.94 |
||
|
27010
|
27010
27010-1170
SWITCH,BRAKE
スイツチ，ブレ-キ |
27010-1170 |
— | ||
| replacement | |||||
|
27010
|
27010
27010-0025 SWITCH,BRAKEスイツチ，ブレ-キ |
27010-0025 |
from US $23.19 |
||
|
43015
|
43015
43015-1646 CYLINDER-ASSY-MASTER,シリンダアツシ(マスタ)，FR |
43015-1646 |
from US $301.71 |
||
|
43020
|
43020
43020-1056 PISTON-COMP-BRAKE,FRピストンコンプ(ブレ-キ)，FR |
43020-1056 |
from US $42.04 |
||
|
43022
|
43022
43022-1010 BRAKE PISTON STOPPERストツパ(ブレ-キ)，ピストン |
43022-1010 |
from US $4.09 |
||
|
43026
|
43026
43026-1074 CAP-BRAKEキヤツプ(ブレ-キ) |
43026-1074 |
from US $17.42 |
||
|
43028
|
43028
43028-1061 DIAPHRAGMダイアフラム |
43028-1061 |
from US $11.72 |
||
|
43034
|
43034
43034-1016 HOLDER-BRAKE,MASTER Cホルダ(ブレ-キ) |
43034-1016 |
from US $14.10 |
||
|
43059
|
43059
43059-1926
HOSE-BRAKE,FR,UPP
ホ-ス(ブレ-キ)，FR，UPP |
43059-1926 |
— | ||
|
43067
|
43067
43067-001 WASHER-SEAL,10.1X14.5ワツシヤ-(オイル)，10.5X15X1.5 |
43067-001 |
US $4.12 |
||
| replacement | |||||
|
43067
|
43067
49091-0001 WASHER-SEAL,10.1X14.5ワツシヤ-(オイル)，10.5X15X1.5 |
49091-0001 |
from US $1.27 |
||
|
43095
|
43095
43095-1186 HOSE-BRAKE,FRホ-ス(ブレ-キ)，FR |
43095-1186 |
US $129.71 |
||
|
46092
|
46092
46092-1208 LEVER-GRIP,FRONT BRAKレバ-(グリツプ)，フロント ブレ-キ |
46092-1208 |
from US $21.90 |
||
|
49006
|
49006
49006-1040 BOOT,DUSTブ-ツ，ダスト |
49006-1040 |
from US $7.29 |
||
| replacement | |||||
|
49006
|
49006
49006-1041 BOOT,DUSTブ-ツ，ダスト |
49006-1041 |
from US $9.35 |
||
|
49006A
|
49006A
49006-1338 BOOT,RHブ-ツ，RH |
49006-1338 |
from US $9.36 |
||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDERカバ-(シ-ル) |
49016-1044 |
from US $10.08 |
||
|
92001
|
92001
92001-1728 BOLT,FRONT BRAKE LEVERボルト，フロント ブレ-キ レバ- |
92001-1728 |
from US $10.45 |
||
|
92002
|
92002
92002-1323 BOLTボルト，スクリユ，4X12 |
92002-1323 |
from US $2.53 |
||
|
92002A
|
92002A
92002-1888
BOLT,OIL,L=23
ボルト，オイル，L=23 |
92002-1888 |
— | ||
| replacement | |||||
|
92002A
|
92002A
92153-0627 BOLT,OIL,L=23ボルト，オイル，L=23 |
92153-0627 |
from US $2.85 |
||
|
92002B
|
92002B
92002-1894 BOLTボルト |
92002-1894 |
from US $3.17 |
||
|
92009
|
92009
92009-1458 SCREW,4MMスクリユ-，4MM |
92009-1458 |
from US $3.02 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MMナツト，フランジド，6MM，ブラツク |
92015-1233 |
from US $3.90 |
||
