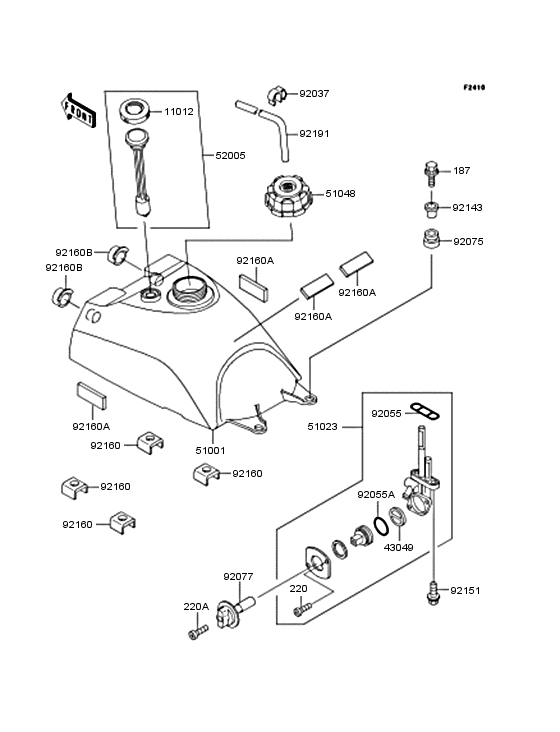

Fuel tank Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C3
- Engine Capacity
- 391
- Year
- 2001
- Sales region
- Japan
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- VF400AE 500001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
187
|
187
187G0635 BOLT-UPSET-WSPボルト(アプセツトバネヒラツキ) |
187G0635 |
US $0.74 |
||
| replacement | |||||
|
187
|
187
187BA0635 BOLT-UPSET-WSPボルト(アプセツトバネヒラツキ) |
187BA0635 |
from US $1.24 |
||
|
220
|
220
220B0308
SCREW PAN HEAD 3X8
ナベコネジ(+ジアナ) |
220B0308 |
— | ||
| replacement | |||||
|
220
|
220
220AA0308 SCREW-PAN-CROSナベコネジ(+ジアナ) |
220AA0308 |
from US $0.79 |
||
|
220A
|
220A
220C0425 SCREW-PAN-CROSSナベコネジ(+ジアナ)，4X25 |
220C0425 |
from US $1.11 |
||
| replacement | |||||
|
220A
|
220A
220AB0425 SCREW-PAN-CROSSナベコネジ(+ジアナ)，4X25 |
220AB0425 |
from US $1.09 |
||
|
11012
|
11012
11012-1627 CAP,FUEL GAUGEキヤツプ，フユ-エル ゲ-ジ |
11012-1627 |
from US $8.24 |
||
|
43049
|
43049
43049-1066
PACKING,TAP VALVE
パツキング，タツプ バルブ |
43049-1066 |
— | ||
| replacement | |||||
|
43049
|
43049
43049-1091 PACKING,TAP VALVEパツキング，タツプ バルブ |
43049-1091 |
from US $4.59 |
||
|
51001
|
51001
51001-1500 TANK-COMP-FUELタンクコンプ(フユ-エル) |
51001-1500 |
US $155.81 |
||
|
51023
|
51023
51023-1254 Fuel Tapタツプアツシ，フユ-エル |
51023-1254 |
US $115.13 |
||
| replacement | |||||
|
51023
|
51023
51023-1317 Fuel Tapタツプアツシ，フユ-エル |
51023-1317 |
from US $79 |
||
|
51048
|
51048
51048-1133 CAP-ASSY-TANK,FUELキヤツプアツシ(タンク)，フユ-エル |
51048-1133 |
from US $47.09 |
||
|
52005
|
52005
52005-1121 GAUGE,FUELゲ-ジ，フユ-エル |
52005-1121 |
US $86.36 |
||
| replacement | |||||
|
52005
|
52005
52005-0735 GAUGE,FUELゲ-ジ，フユ-エル |
52005-0735 |
from US $79.52 |
||
|
92037
|
92037
92037-1458 CLAMP,BRAKE HOSE & SEクランプ |
92037-1458 |
from US $3.80 |
||
|
92055
|
92055
92055-1112 O-RING,FUEL TAP PACKINGリング(0)，フユ-エル タツプ パツキング |
92055-1112 |
from US $3.01 |
||
|
92055A
|
92055A
92055-1419 RING-O,TAP LEVERリング(0)，タツプ レバ- |
92055-1419 |
from US $3.01 |
||
|
92075
|
92075
92075-1787 DAMPERダンパ |
92075-1787 |
from US $3.96 |
||
|
92077
|
92077
92077-1098 KNOB,FUEL TAPノブ，フユ-エル タツプ |
92077-1098 |
from US $12.83 |
||
|
92143
|
92143
92143-1100 COLLAR,L=19.6カラ-，L=19.6 |
92143-1100 |
from US $4.82 |
||
|
92151
|
92151
92151-1198 BOLTボルト |
92151-1198 |
from US $2.65 |
||
|
92160
|
92160
92160-1773 DAMPERダンパ |
92160-1773 |
from US $3.57 |
||
|
92160A
|
92160A
92160-1834 DAMPERダンパ |
92160-1834 |
from US $3.27 |
||
|
92160B
|
92160B
92160-1909 DAMPERダンパ |
92160-1909 |
from US $12.01 |
||
|
92191
|
92191
92191-1107 TUBE,5X9X450チユ-ブ，5X9.4X450 |
92191-1107 |
US $7.96 |
||
| replacement | |||||
|
92191
|
92191
92192-0750 TUBE,5X9X450チユ-ブ，5X9.4X450 |
92192-0750 |
from US $10.05 |
||
