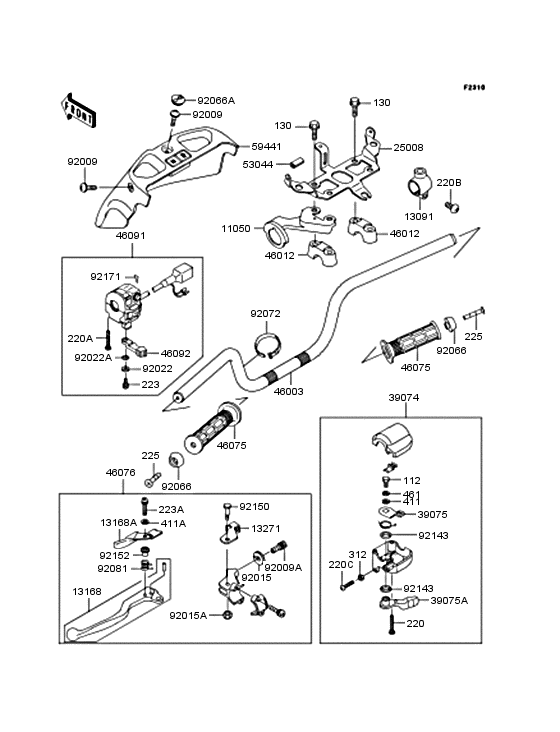

Handlebar Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C3
- Engine Capacity
- 391
- Year
- 2001
- Sales region
- Japan
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- VF400AE 500001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112D0614 BOLT-UPSETボルト(アプセツト) |
112D0614 |
US $2.59 |
||
| replacement | |||||
|
112
|
112
112AA0614 BOLT-UPSETボルト(アプセツト) |
112AA0614 |
from US $0.82 |
||
|
130
|
130
130P0860 BOLT-FLANGED,8X60ボルト(ツバツキ) |
130P0860 |
US $1.44 |
||
| replacement | |||||
|
130
|
130
130CA0860 BOLT-FLANGED,8X60ボルト(ツバツキ) |
130CA0860 |
from US $1.43 |
||
|
220
|
220
220C0530
SCREW-PAN-CROSS
ナベコネジ(+ジアナ) |
220C0530 |
— | ||
| replacement | |||||
|
220
|
220
220AB0530 SCREW-PAN-CROSSナベコネジ(+ジアナ) |
220AB0530 |
from US $0.95 |
||
|
220A
|
220A
220C0535 SCREW-PAN-CROSS,5X35ナベコネジ(+ジアナ) |
220C0535 |
from US $1.27 |
||
| replacement | |||||
|
220A
|
220A
220AB0535 SCREW-PAN-CROSS,5X35ナベコネジ(+ジアナ) |
220AB0535 |
from US $0.95 |
||
|
11050
|
11050
11050-1727 BRACKET,HANDLE COVER,ブラケツト，ハンドル カバ-，LH |
11050-1727 |
from US $10.43 |
||
|
13091
|
13091
13091-1255 HOLDER,ENGINE STOP SWホルダ，エンジン ストツプ スイツチ |
13091-1255 |
from US $53.86 |
||
|
13168A
|
13168A
13168-1673 PLATE,LEVER LOCKレバ-，ロツク |
13168-1673 |
US $19.04 |
||
| replacements | |||||
|
13168A
|
13168A
13271-0011 PLATE,LEVER LOCKレバ-，ロツク |
13271-0011 |
from US $8.87 |
||
|
13168A
|
13168A
13272-3827 Plate,Lever Lockレバ-，ロツク |
13272-3827 |
US $15.62 |
||
|
13168
|
13168
13168-1672 LEVERレバ-，LH |
13168-1672 |
from US $25.04 |
||
|
13271
|
13271
13271-1259 PLATE,LOCKプレ-ト，ロツク |
13271-1259 |
from US $10.89 |
||
|
25008
|
25008
25008-1222 BRACKET-METERブラケツト(メ-タ) |
25008-1222 |
US $33.14 |
||
|
39074
|
39074
39074-1055 LEVER-ASSY-THROTTLEレバ-アツシ(スロツトル) |
39074-1055 |
from US $48.99 |
||
| replacement | |||||
|
39074
|
39074
39074-0012 Lever-Assy-Throttleレバ-アツシ(スロツトル) |
39074-0012 |
US $89.18 |
||
|
39075
|
39075
39075-1054 LEVER-THROTTLE,ARMレバ-(スロツトル)，ア-ム |
39075-1054 |
from US $6.84 |
||
|
39075A
|
39075A
39075-1059 LEVER-THROTTLEレバ-(スロツトル) |
39075-1059 |
from US $18.82 |
||
|
46003
|
46003
46003-1452 HANDLEハンドル |
46003-1452 |
from US $75.31 |
||
|
46012
|
46012
46012-1168 HOLDER-HANDLEホルダ(ハンドル) |
46012-1168 |
from US $10.66 |
||
|
46075
|
46075
46075-1056 GRIPグリツプ |
46075-1056 |
from US $22.75 |
||
|
46076
|
46076
46076-1224 LEVER-ASSY-GRIP,LHレバ-アツシ(グリツプ)，LH |
46076-1224 |
from US $49.59 |
||
| replacement | |||||
|
46076
|
46076
46076-0178 Lever-Assy-Grip,Lhレバ-アツシ(グリツプ)，LH |
46076-0178 |
US $58.68 |
||
|
46091
|
46091
46091-1799 Housing-assy-control,ハウジングアツシ(コントロ-ル)，LH |
46091-1799 |
US $160.58 |
||
| replacement | |||||
|
46091
|
46091
46091-1848 HOUSING-ASSY-CONTROL,ハウジングアツシ(コントロ-ル)，LH |
46091-1848 |
from US $158.63 |
||
|
46092
|
46092
46092-1205 LEVER-GRIP,CHOKEレバ-(グリツプ)，チヨ-ク |
46092-1205 |
US $4.03 |
||
| replacement | |||||
|
46092
|
46092
46092-1217 LEVER-GRIP,CHOKEレバ-(グリツプ)，チヨ-ク |
46092-1217 |
from US $5.28 |
||
|
53044
|
53044
53044-1292 TRIMトリム，L=20 |
53044-1292 |
from US $2.38 |
||
|
59441
|
59441
59441-1139-6Z COVER-HANDLE,F.BLACKカバ-(ハンドル)，ブラツク |
59441-1139-6Z |
US $35.12 |
||
|
92009
|
92009
92009-1332 SCREW,TAPPING,5X10スクリユ-，タツピング，5X10 |
92009-1332 |
from US $2.53 |
||
|
92009A
|
92009A
92009-1435 SCREW CABLE ADJUSTスクリユ-，ケ-ブル アジヤスト，8MM |
92009-1435 |
US $14.17 |
||
| replacement | |||||
|
92009A
|
92009A
46055003 SCREW CABLE ADJUSTスクリユ-，ケ-ブル アジヤスト，8MM |
46055003 |
from US $11.09 |
||
|
92015
|
92015
92015-1596 NUT-LOCKナツト，ケ-ブル アジヤスト ロツク，8MM |
92015-1596 |
from US $6.02 |
||
| replacement | |||||
|
92015
|
92015
46056005 NUT-LOCKナツト，ケ-ブル アジヤスト ロツク，8MM |
46056005 |
from US $6.02 |
||
|
92015A
|
92015A
92015-1829 NUTナツト |
92015-1829 |
US $3.51 |
||
| replacement | |||||
|
92015A
|
92015A
92019-008 NUTナツト |
92019-008 |
from US $2.53 |
||
|
92022
|
92022
92022-1837 WASHER,5MMワツシヤ，5MM |
92022-1837 |
from US $4.13 |
||
|
92022A
|
92022A
92022-1838 WASHER,WAVE,5MMワツシヤ，ウエ-ブ，5MM |
92022-1838 |
from US $4.13 |
||
|
92066
|
92066
92066-1191
PLUG,HANDLE
プラグ，ハンドル |
92066-1191 |
— | ||
|
92066A
|
92066A
92066-1498-6Z PLUG,F.BLACKプラグ，ブラツク |
92066-1498-6Z |
US $3.40 |
||
|
92072
|
92072
92072-031 BAND,MIDDLEバンド，L=149 |
92072-031 |
from US $3.01 |
||
|
92081
|
92081
92081-1358 SPRING,CLUTCH LOCK REスプリング，ロツク リタ-ン |
92081-1358 |
from US $2.95 |
||
|
92143
|
92143
92143-1138 COLLARカラ- |
92143-1138 |
from US $1.71 |
||
|
92150
|
92150
92150-1420 BOLTボルト |
92150-1420 |
US $14.92 |
||
| replacement | |||||
|
92150
|
92150
92153-1919 BOLTボルト |
92153-1919 |
from US $8.55 |
||
|
92152
|
92152
92152-1176 COLLARカラ- |
92152-1176 |
from US $2.33 |
||
|
92171
|
92171
92171-1095 CLAMP,CLIPクランプ，クリツプ |
92171-1095 |
from US $1.40 |
||
