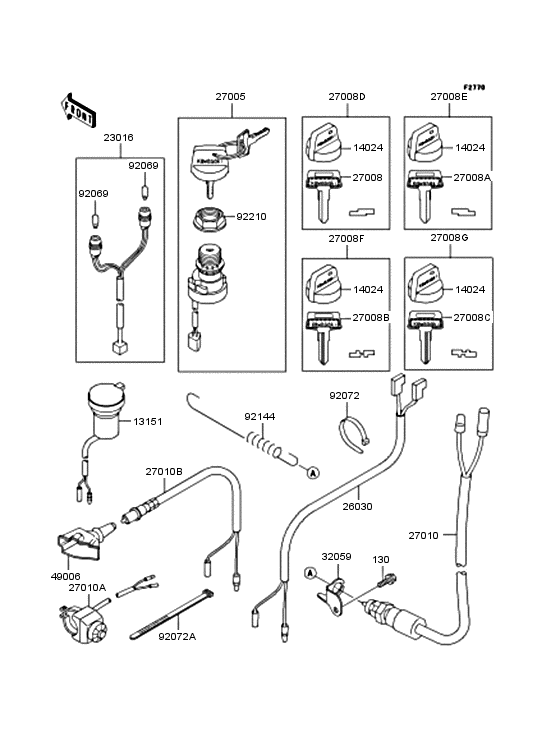

Ignition switch Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C3
- Engine Capacity
- 391
- Year
- 2001
- Sales region
- Japan
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- VF400AE 500001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0610
BOLT-FLANGED,6X10
ボルト(ツバツキ) |
130J0610 |
— | ||
| replacement | |||||
|
130
|
130
130BB0610 BOLT-FLANGED,6X10ボルト(ツバツキ) |
130BB0610 |
from US $1.11 |
||
|
13151
|
13151
13151-1094 SWITCH-COMP,D.C.TERMIスイツチコンプ，タ-ミナル |
13151-1094 |
from US $106.37 |
||
|
14024
|
14024
14024-1551 COVER,KEYカバ-，キ-; オプシヨン |
14024-1551 |
from US $7.96 |
||
|
23016
|
23016
23016-1083 LAMP-ASSY,NEUTRAL&REVランプアツシ，ニユ-トラルリバ-ス |
23016-1083 |
from US $37.48 |
||
|
26030
|
26030
26030-1058 HARNESSハ-ネス |
26030-1058 |
from US $12.12 |
||
|
27005
|
27005
27005-1230 SWITCH-ASSY-IGNITIONスイツチアツシ(イグニシヨン) |
27005-1230 |
US $123.86 |
||
| replacement | |||||
|
27005
|
27005
27005-1267 SWITCH-ASSY-IGNITIONスイツチアツシ(イグニシヨン) |
27005-1267 |
from US $112.59 |
||
|
27008
|
27008
27008-1041 KEY-LOCK,BLANKキ-(ロツク)，ブランク |
27008-1041 |
from US $12.83 |
||
|
27008A
|
27008A
27008-1042 KEY-LOCK,BLANKキ-(ロツク)，ブランク |
27008-1042 |
from US $12.83 |
||
|
27008B
|
27008B
27008-1043 KEY-LOCK,BLANKキ-(ロツク)，ブランク |
27008-1043 |
from US $12.83 |
||
|
27008C
|
27008C
27008-1044 KEY-LOCK,BLANKキ-(ロツク)，ブランク |
27008-1044 |
from US $12.83 |
||
|
27008D
|
27008D
27008-1132 KEY-LOCK,BLANKキ-(ロツク)，ブランク |
27008-1132 |
from US $12.12 |
||
|
27008E
|
27008E
27008-1133 KEY-LOCK,BLANKキ-(ロツク)，ブランク |
27008-1133 |
from US $12.12 |
||
|
27008F
|
27008F
27008-1134 KEY-LOCK,BLANKキ-(ロツク)，ブランク |
27008-1134 |
from US $12.12 |
||
|
27008G
|
27008G
27008-1135 KEY-LOCK,BLANKキ-(ロツク)，ブランク |
27008-1135 |
from US $12.12 |
||
|
27010
|
27010
27010025 SWITCH,BRAKE LIGHTスイツチ，ブレ-キ ランプ |
27010025 |
from US $19.64 |
||
|
27010A
|
27010A
27010-1285 Switch hornスイツチ，ホ-ン |
27010-1285 |
US $35.61 |
||
|
27010B
|
27010B
27010-1294 Switch, engine stopスイツチ，ブレ-キ |
27010-1294 |
from US $22.55 |
||
|
32059
|
32059
32059-1136 BRACKET-SWITCHブラケツト(スイツチ)，リヤ ブレ-キ |
32059-1136 |
US $5.78 |
||
|
49006
|
49006
49006-1261 BOOTブ-ツ |
49006-1261 |
from US $14.31 |
||
|
92069
|
92069
92069-1020 BULB,12V3W T-7バルブ，12V 3W，T7 |
92069-1020 |
from US $4.44 |
||
|
92072
|
92072
92072-031 BAND,MIDDLEバンド，L=149 |
92072-031 |
from US $3.01 |
||
|
92072A
|
92072A
92072-056 BAND,WIRING HARNESSバンド，L=186 |
92072-056 |
from US $3.01 |
||
|
92144
|
92144
92144-1343 SPRING,BRAKE LAMP SWIスプリング |
92144-1343 |
from US $5.94 |
||
|
92210
|
92210
92210-1109 NUTナツト，イグニツシヨン スイツチ |
92210-1109 |
from US $7.87 |
||
