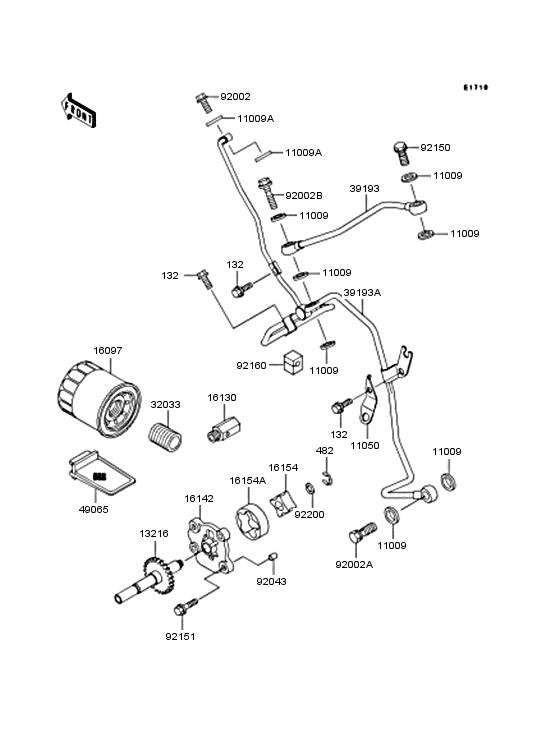

Oil pump/oil filter Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C3
- Engine Capacity
- 391
- Year
- 2001
- Sales region
- Japan
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- VF400AE 500001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132G0612
BOLT-FLANGED-SMALL,6X
ボルト(コガタツバツキ) |
132G0612 |
— | ||
| replacement | |||||
|
132
|
132
132BA0612 BOLT-FLANGED-SMALL,6Xボルト(コガタツバツキ) |
132BA0612 |
from US $0.79 |
||
|
482
|
482
482J6000 CIRCLIP-TYPE-E,6MMトメワ(Eガタ)，6MM |
482J6000 |
from US $1.05 |
||
|
11009
|
11009
11009-1105 GASKET,10X14.5X1.5ガスケツト，10X14.5X1.5 |
11009-1105 |
from US $4.75 |
||
|
11009A
|
11009A
11009-1344 GASKET,OIL PIPE,8.2X1ガスケツト，8.2X14X1.0 |
11009-1344 |
from US $3.33 |
||
|
11050
|
11050
11050-1304 BRACKETブラケツト |
11050-1304 |
from US $4.67 |
||
|
13216
|
13216
13216-1180 GEAR,OIL PUMPギヤコンプ，オイル ポンプウオ-タ ポンプ |
13216-1180 |
from US $111.91 |
||
|
16097
|
16097
16097-1063
Filter-assy-oil
フイルタアツシ(オイル) |
16097-1063 |
— | ||
| replacement | |||||
|
16097
|
16097
16097-0008 FILTER-ASSY-OILオイル フイルタアツシ(オイル) |
16097-0008 |
from US $14.84 |
||
|
16130
|
16130
16130-1001
VALVE-ASSY-RELIEF
バルブアツシ(リリ-フ) |
16130-1001 |
— | ||
| replacements | |||||
|
16130
|
16130
16130-0002 VALVE-ASSY-RELIEFリリ-フ バルブアツシ(リリ-フ) |
16130-0002 |
from US $15.36 |
||
|
16130
|
16130
16130-0003 VALVE-ASSY-RELIEF,KL2バルブアツシ(リリ-フ) |
16130-0003 |
from US $26.60 |
||
|
16142
|
16142
16142-1136 COVER-PUMPカバ-(ポンプ) |
16142-1136 |
from US $23.17 |
||
|
16154
|
16154
16154-2059 ROTOR-PUMP-INNERロ-タ(ポンプ)，インナ |
16154-2059 |
from US $9.37 |
||
|
16154A
|
16154A
16154-2060 ROTOR-PUMP-OUTERロ-タ(ポンプ)，アウタ |
16154-2060 |
from US $10.68 |
||
|
32033
|
32033
32033-1535 PIPEパイプ，オイル フイルタ |
32033-1535 |
from US $9.19 |
||
|
39193
|
39193
39193-1028 PIPE-OIL,CRANKSHAFTパイプ(オイル)，クランクシヤフト |
39193-1028 |
from US $37.64 |
||
|
39193A
|
39193A
39193-1043 PIPE-OILパイプ(オイル) |
39193-1043 |
US $116.19 |
||
|
49065
|
49065
49065-1070 FILTER-OILフイルタ(オイル) |
49065-1070 |
from US $12.60 |
||
|
92002A
|
92002A
92002-1888
BOLT,OIL,L=23
ボルト，オイル，L=23 |
92002-1888 |
— | ||
| replacement | |||||
|
92002A
|
92002A
92153-0627 BOLT,OIL,L=23ボルト，オイル，L=23 |
92153-0627 |
from US $2.85 |
||
|
92002B
|
92002B
92002-1909 BOLT,OIL,L=37ボルト，オイル，L=37 |
92002-1909 |
from US $7.76 |
||
| replacement | |||||
|
92002B
|
92002B
92153-0628 BOLT,OIL,L=37ボルト，オイル，L=37 |
92153-0628 |
from US $6.65 |
||
|
92002
|
92002
92002-1429 BOLT,BANJO,8X20ボルト，バンジヨ，8X20 |
92002-1429 |
from US $7.44 |
||
|
92043
|
92043
92043-1302 PIN,DOWEL,8X10ピン，ドウエル，8X10 |
92043-1302 |
from US $1.45 |
||
|
92150
|
92150
92150-1123 BOLT,BANJO,10X23ボルト，バンジヨ，10X23 |
92150-1123 |
from US $9.54 |
||
| replacement | |||||
|
92150
|
92150
92151-1349 BOLT,BANJO,10X23ボルト，バンジヨ，10X23 |
92151-1349 |
from US $3.64 |
||
|
92151
|
92151
92151-1197 BOLTボルト，6X22 |
92151-1197 |
from US $3.48 |
||
|
92160
|
92160
92160-1522 DAMPERダンパ |
92160-1522 |
US $4.77 |
||
|
92200
|
92200
92200-1107 WASHER,7.7X13X1.0ワツシヤ，7.7X13X1.0 |
92200-1107 |
from US $2.69 |
||
