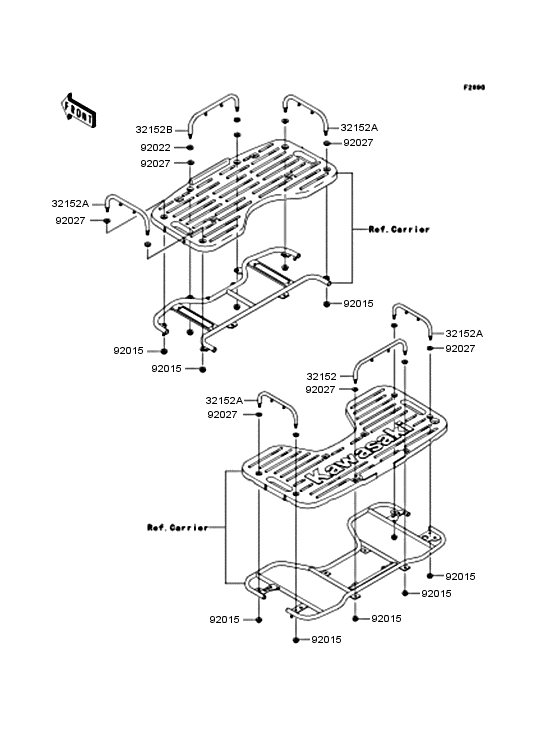

Optional parts (キャリア ガード) Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C3
- Engine Capacity
- 391
- Year
- 2001
- Sales region
- Japan
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- VF400AE 500001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32152A
|
32152A
32152-1940 PIPE,STAY,RR/FR,SIDEパイプ，ステ-，RR/FR，サイド |
32152-1940 |
US $21.92 |
||
|
32152B
|
32152B
32152-1941
PIPE,STAY,FR,CNT
パイプ，ステ-，FR，CNT |
32152-1941 |
— | ||
|
32152
|
32152
32152-1939 PIPE,STAY,RR,CNTパイプ，ステ-，RR，CNT |
32152-1939 |
US $31.32 |
||
|
92015
|
92015
92015-1183 Nut,flanged,8mm,blackナツト，フランジ，8MM |
92015-1183 |
US $3.91 |
||
| replacement | |||||
|
92015
|
92015
92210-0004 NUT,FLANGED,8MMナツト，フランジ，8MM |
92210-0004 |
from US $3.80 |
||
|
92022
|
92022
92022-1295 WASHER,9X24X3.2ワツシヤ，9X24X3.2 |
92022-1295 |
from US $4.59 |
||
|
92027
|
92027
92027-1908 COLLARカラ-; ドライブ ガード |
92027-1908 |
from US $5.54 |
||
