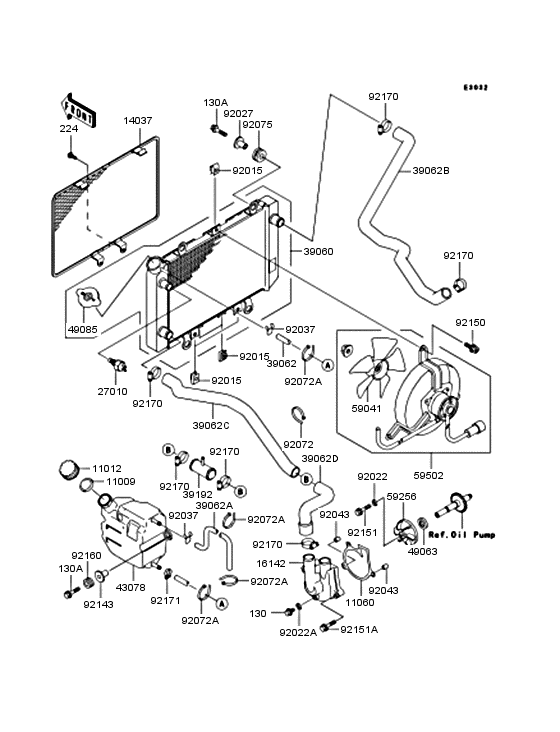

Radiator Diagram Kawasaki KVF400 Prairie 400 4X4
- Model code
- KVF400-C3
- Engine Capacity
- 391
- Year
- 2001
- Sales region
- Japan
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- VF400AE 500001 -
- Power
- 25 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 400 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1145 GASKET,RESERVE TANKガスケツト，リザ-バ タンク キヤツプ |
11009-1145 |
from US $1.79 |
||
|
11012
|
11012
11012-1084 CAP,RESERVE TANKキヤツプ |
11012-1084 |
from US $2.14 |
||
|
11060
|
11060
11060-1730 GASKET,WATER PUMP COVERガスケツト，ウオ-タ ポンプ カバ- |
11060-1730 |
from US $4.35 |
||
|
14037
|
14037
14037-1221 SCREENスクリ-ン |
14037-1221 |
US $64.87 |
||
|
16142
|
16142
16142-1137 COVER-PUMPカバ-(ポンプ) |
16142-1137 |
from US $53.65 |
||
|
27010
|
27010
27010-1202 SWITCH,FANスイツチ，フアン |
27010-1202 |
from US $70.46 |
||
|
39060
|
39060
39060-1150 Radiatorラジエ-タ |
39060-1150 |
from US $595.02 |
||
|
39062
|
39062
39062-1675 HOSECOOLNG5.5X10.5X15ホ-ス(ク-リング)，5.5X10.5X1500 |
39062-1675 |
US $8.75 |
||
|
39062A
|
39062A
39062-1676 HOSECOOLNG5.5X10.5X70ホ-ス(ク-リング)，5.5X10.5X700 |
39062-1676 |
US $5.06 |
||
|
39062B
|
39062B
39062-1701
HOSE-COOLNG,HEAD RADI
ホ-ス(ク-リング)，ヘツド(ラジエ-タ) |
39062-1701 |
— | ||
|
39062C
|
39062C
39062-1740
HOSE-COOLING
ホ-ス(ク-リング) |
39062-1740 |
— | ||
|
39062D
|
39062D
39062-1741 HOSE-COOLINGホ-ス(ク-リング) |
39062-1741 |
US $33.13 |
||
|
39192
|
39192
39192-1020 PIPE-WATERパイプ(ウオ-タ) |
39192-1020 |
from US $12.67 |
||
|
43078
|
43078
43078-1163
RESERVOIR
リザ-バ |
43078-1163 |
— | ||
|
49063
|
49063
49063-1002
SEAL-MECHANICAL
シ-ル(メカニカル)，ウオ-タ ポンプ |
49063-1002 |
— | ||
| replacement | |||||
|
49063
|
49063
49063-1055 SEAL-MECHANICALシ-ル(メカニカル)，ウオ-タ ポンプ |
49063-1055 |
from US $20.64 |
||
|
49085
|
49085
49085-1066 CAP-ASSY-PRESSUREキヤツプアツシ(プレツシヤ) |
49085-1066 |
from US $33.96 |
||
|
59041
|
59041
59041-1058 FANフアン |
59041-1058 |
from US $47.43 |
||
|
59256
|
59256
59256-1073 IMPELLERインペラ |
59256-1073 |
from US $24.38 |
||
|
59502
|
59502
59502-1123 FAN-ASSYフアンアツシ |
59502-1123 |
from US $463.45 |
||
|
92015
|
92015
92015-1487 NUTナツト |
92015-1487 |
from US $4.25 |
||
|
92022
|
92022
92022-077 WASHER,6.1X12X1ワツシヤ，6.1X12X1 |
92022-077 |
from US $2.53 |
||
|
92022A
|
92022A
92022-304 WASHER,PLAINワツシヤ，6.2X11X1 |
92022-304 |
from US $2.53 |
||
|
92027
|
92027
92027-251
COLLAR
カラ-，L=13.1 |
92027-251 |
— | ||
| replacement | |||||
|
92027
|
92027
92152-0365 COLLARカラ-，L=13.1 |
92152-0365 |
from US $0.91 |
||
|
92037
|
92037
92037-147 CLAMP,CHAIN OILERクランプ，チユ-ブ |
92037-147 |
from US $4.95 |
||
|
92043
|
92043
92043-1302 PIN,DOWEL,8X10ピン，ドウエル，8X10 |
92043-1302 |
from US $1.45 |
||
|
92072
|
92072
92072-030 BAND,SHORTバンド，L=123 |
92072-030 |
from US $3.01 |
||
|
92072A
|
92072A
92072-056 BAND,WIRING HARNESSバンド，L=186 |
92072-056 |
from US $3.01 |
||
|
92075
|
92075
92075-209 DAMPER RUBBER,RR FENRダンパ |
92075-209 |
from US $3.73 |
||
|
92143
|
92143
92143-1353 COLLARカラ- |
92143-1353 |
from US $5.54 |
||
|
92150
|
92150
92150-1186 BOLT,6X12ボルト，6X12 |
92150-1186 |
from US $2.85 |
||
|
92151
|
92151
92151-1074 BOLT,6X22ボルト，6X22 |
92151-1074 |
US $3.71 |
||
|
92151A
|
92151A
92151-1139 BOLT,6X30ボルト，6X30 |
92151-1139 |
from US $1.90 |
||
|
92160
|
92160
92160-1167 DAMPERダンパ |
92160-1167 |
from US $3.01 |
||
|
92170
|
92170
92170-1497 Clamp, cooling hoseクランプ |
92170-1497 |
US $13.27 |
||
| replacement | |||||
|
92170
|
92170
92171-0261 CLAMPクランプ |
92171-0261 |
from US $11.88 |
||
|
92171
|
92171
92171-1128 CLAMPクランプ |
92171-1128 |
US $3.02 |
||
